Ford
>>
1995
>>
Bronco Full Size V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Right Power Window Switch
>>
Without Remote/Keyless Entry
Without Remote/Keyless Entry

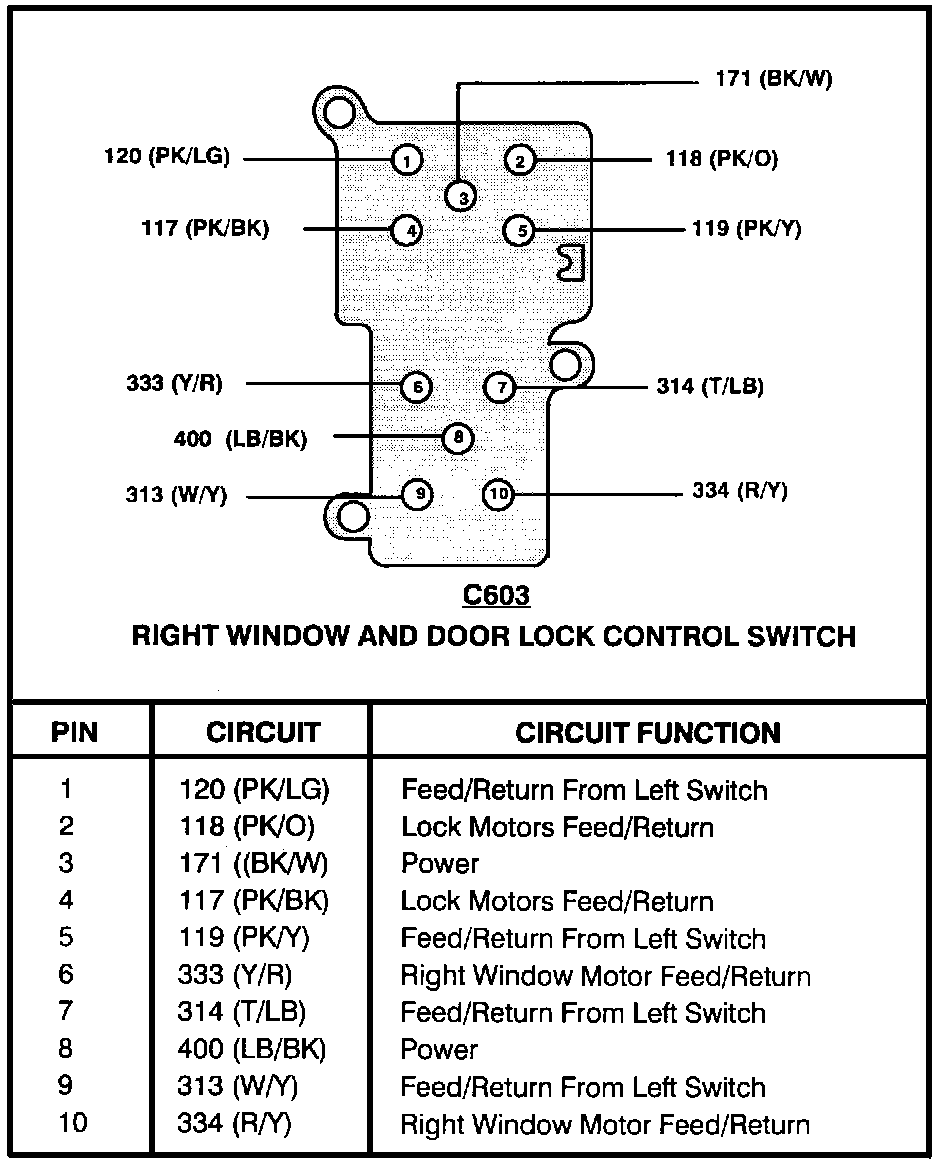

Right Window And Door Lock Control Switch:
