With 4R70W
With 4R70W

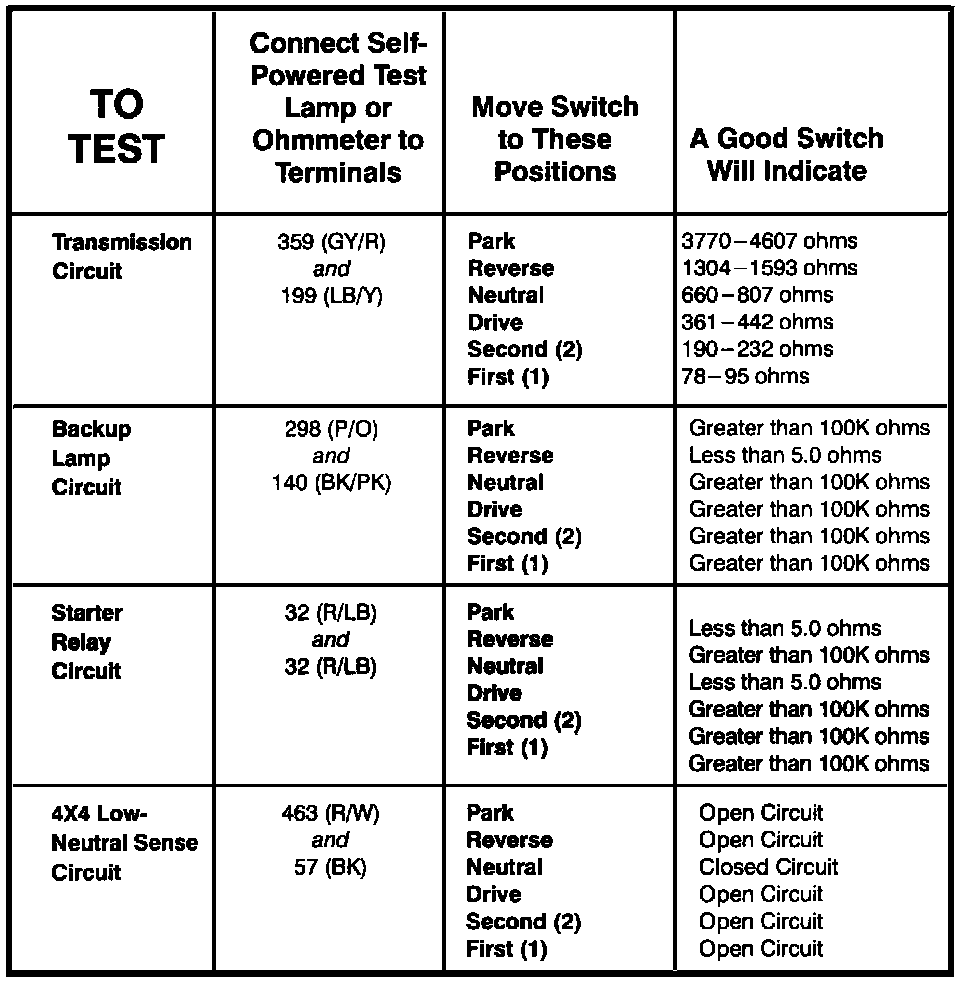

Transmission Range Sensor - Component Testing Procedure:
Transmission Range Sensor - Terminal Locations (With 4R70W Transmission):
Transmission Range (TR) Sensor - Schematic:
