Home >> Ford >> 1995 >> Crown Victoria V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Control Module >> With Air Suspension

With Air Suspension

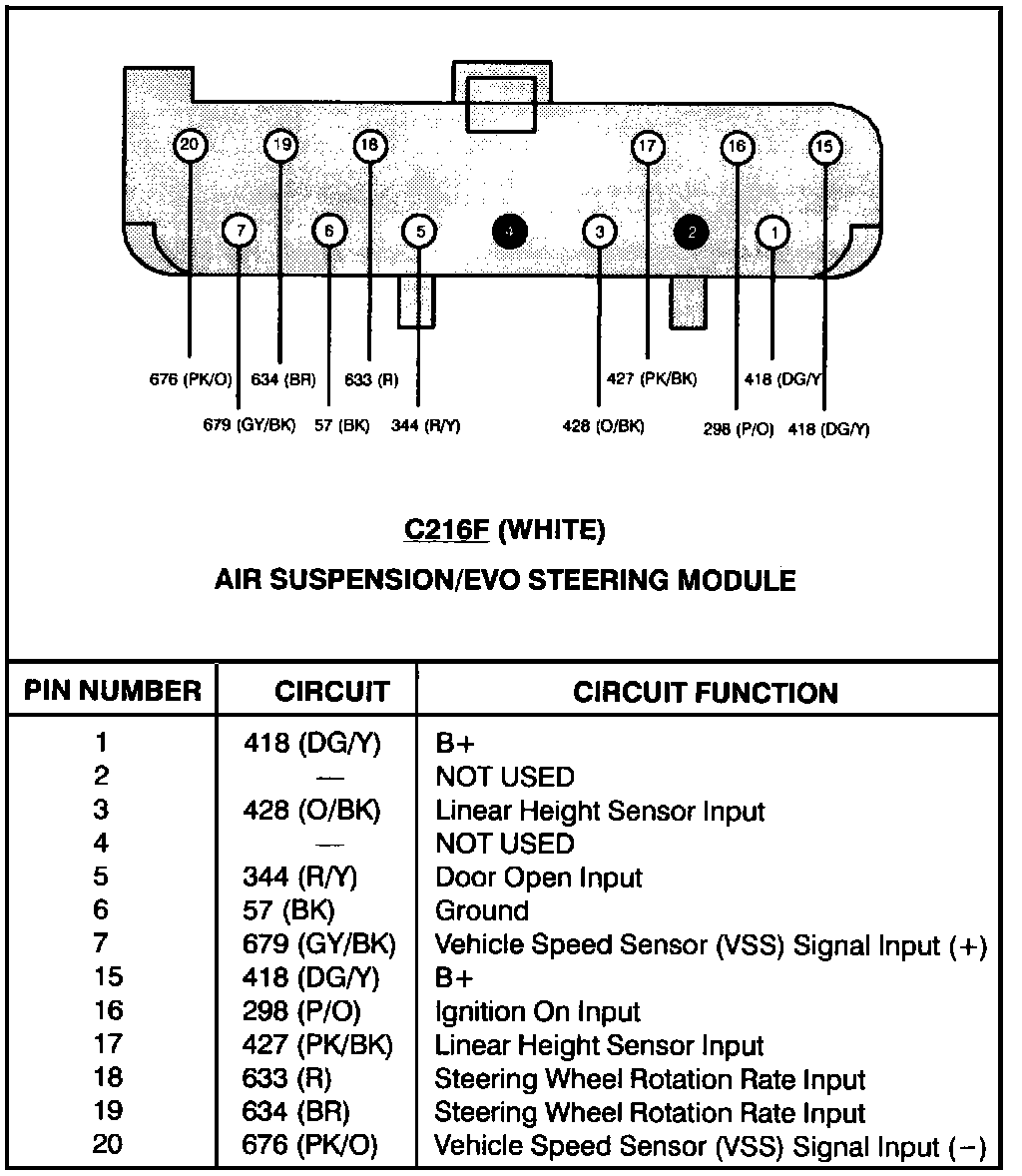

Air Suspension/Electronic Variable Orifice Steering Module (C216F):

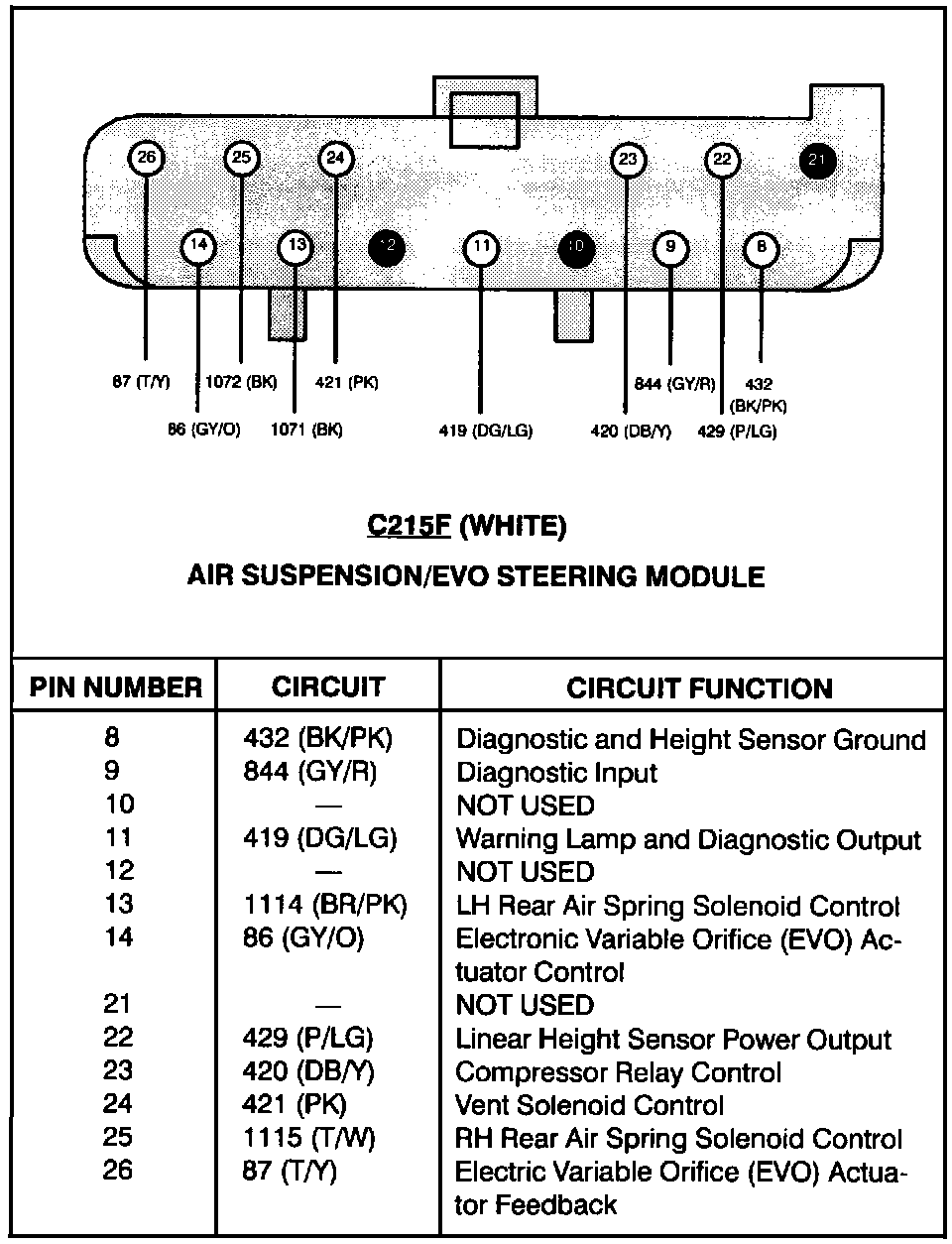

Air Suspension/Electronic Variable Orifice Steering Module (C215F):
