Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
E 150 Van V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C202
>>
Without Premium Sound
Without Premium Sound

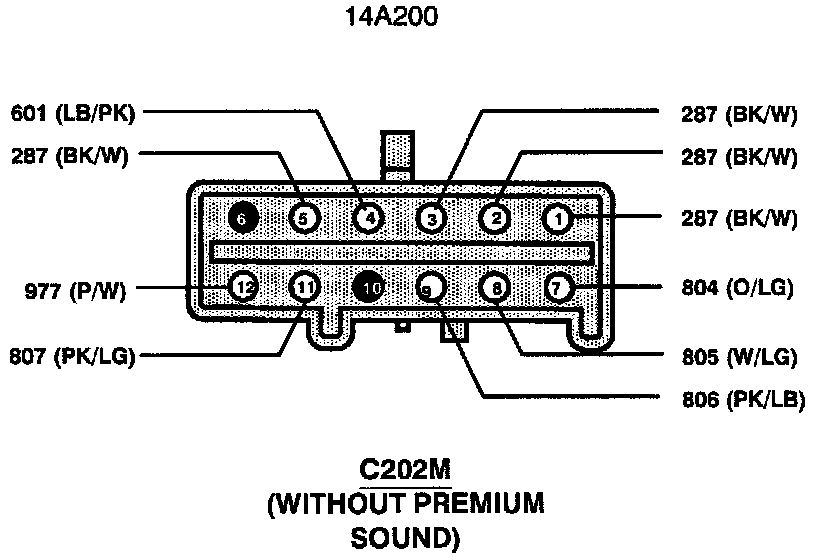

In Line Connector Faces - C202M (Without Premium Sound):

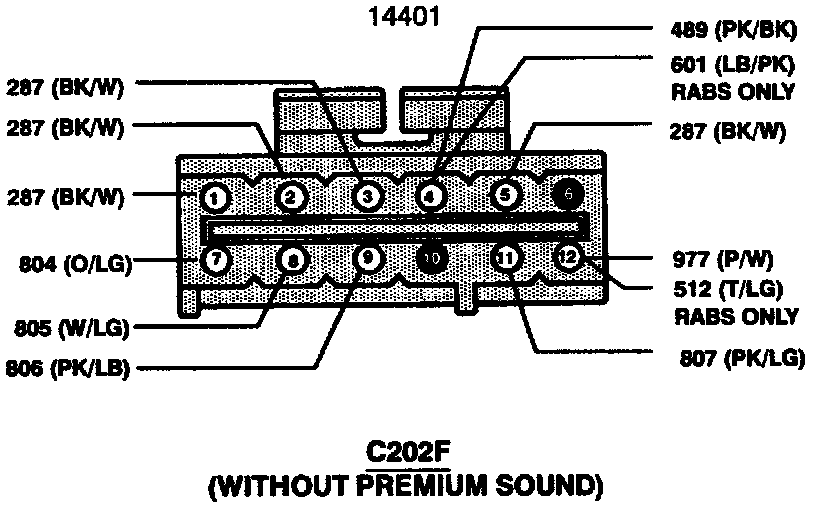

In Line Connector Faces - C202F (Without Premium Sound):
