With Sequential Fuel Injection

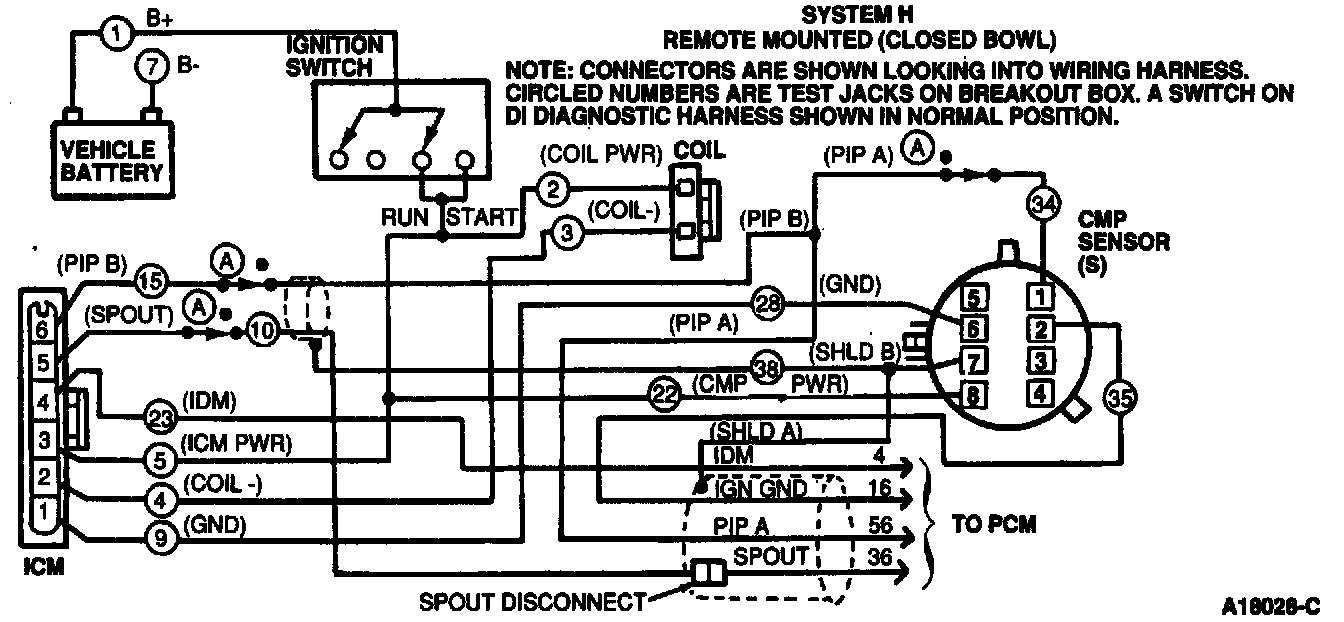

Distributor Ignition Wiring Schematic (With Diagnostic Harness Installed)Distributor Ignition Wiring Schematic (With Diagnostic Harness Installed)Distributor Ignition Wiring Schematic (With Diagnostic Harness Installed:

Distributor Ignition Wiring Schematic (With Diagnostic Harness Installed)

Electrical Schematic:

Powertrain Control Module (PCM) Electrical Schematic

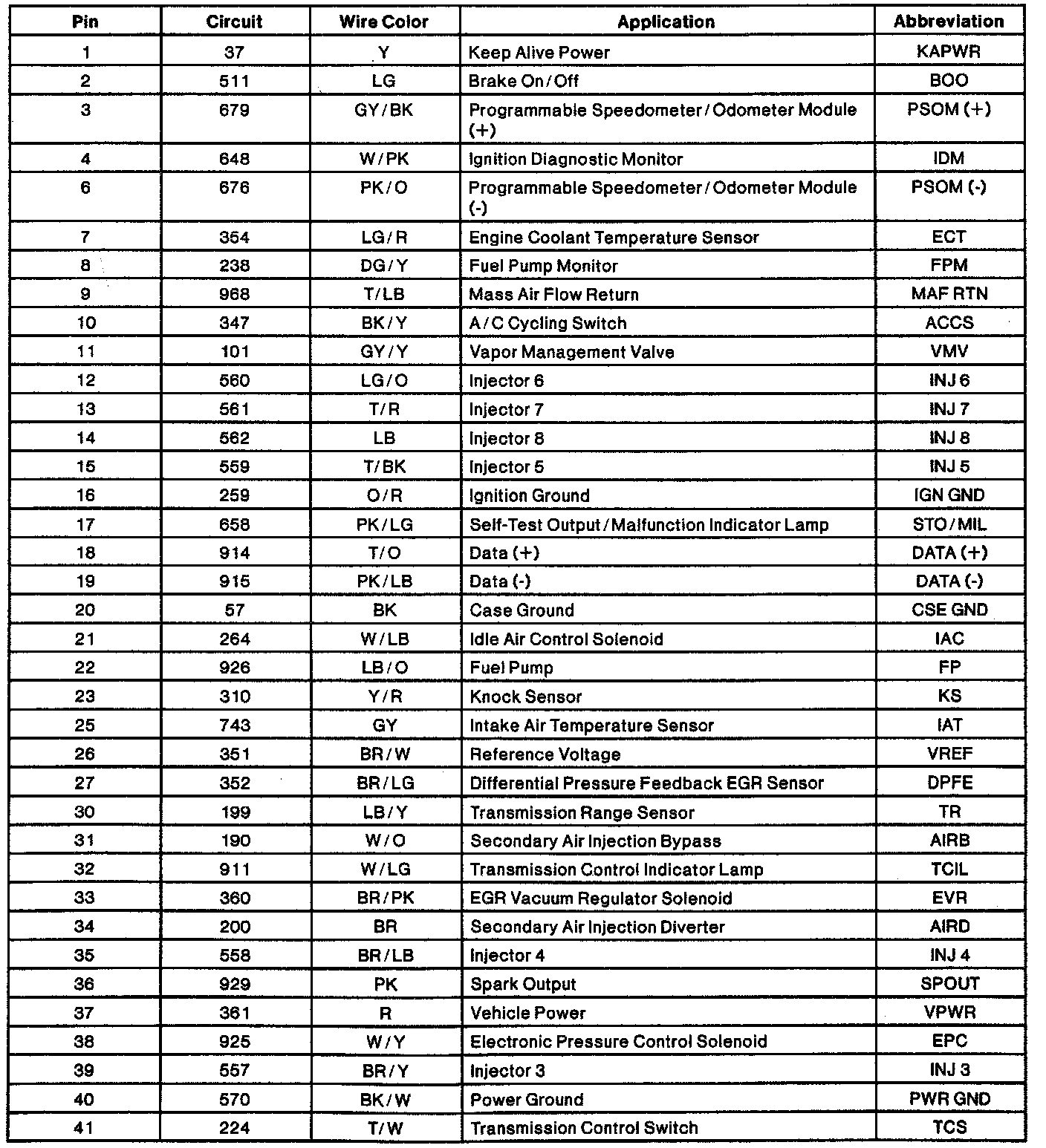

Powertrain Control Module (PCM) Connector Pin Usage (Part 1 Of 2):

PCM Connector Pin Usage (Part 1 Of 2)

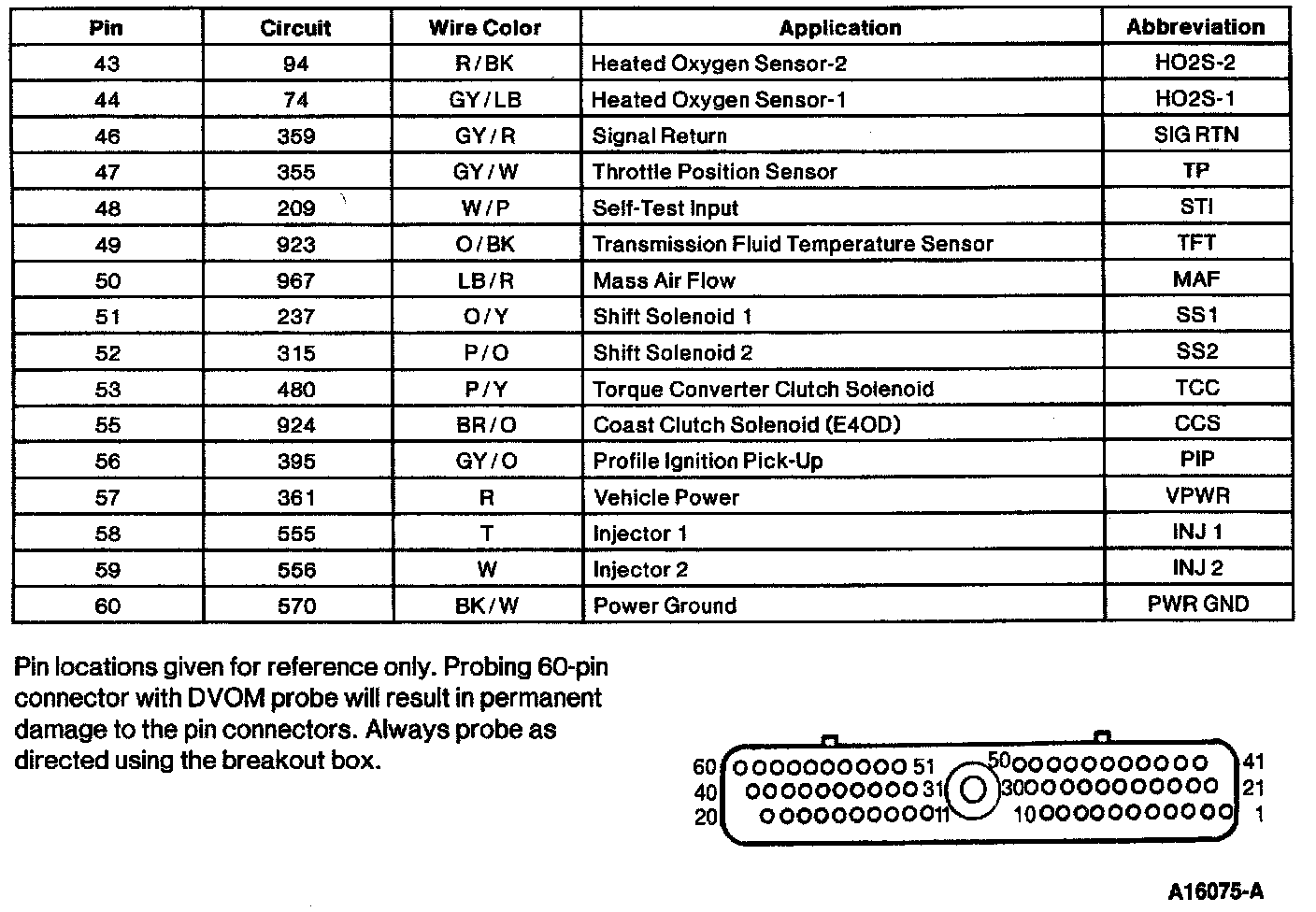

Powertrain Control Module (PCM) Connector Pin Usage (Part 2 Of 2):

PCM Connector Pin Usage (Part 2 Of 2)
