J - Fuel Pump Circuit
>>
J - Testing Schematic
J - Testing Schematic

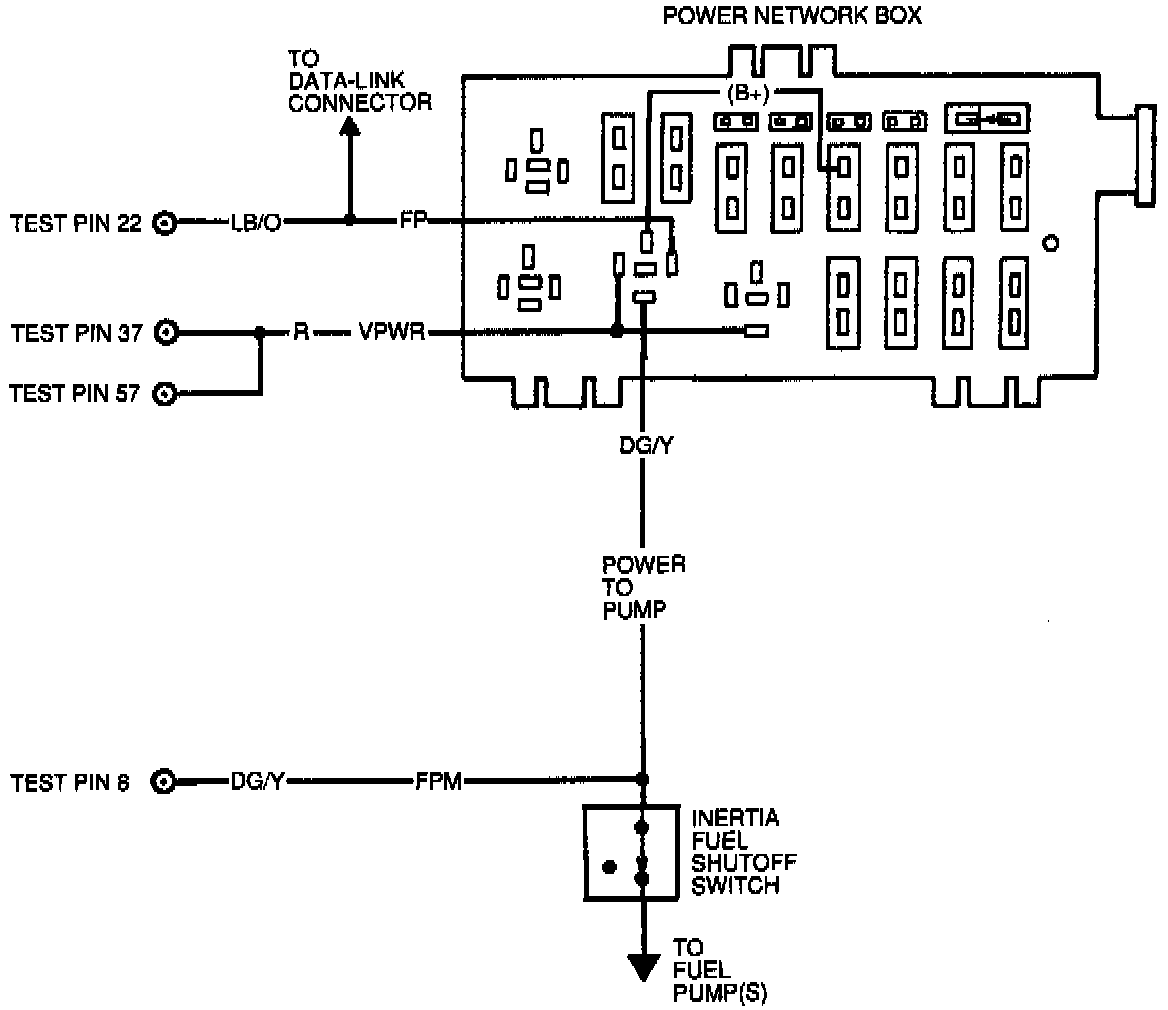

Inertia Fuel Shutoff Switch Circuit:
