Engine Controls

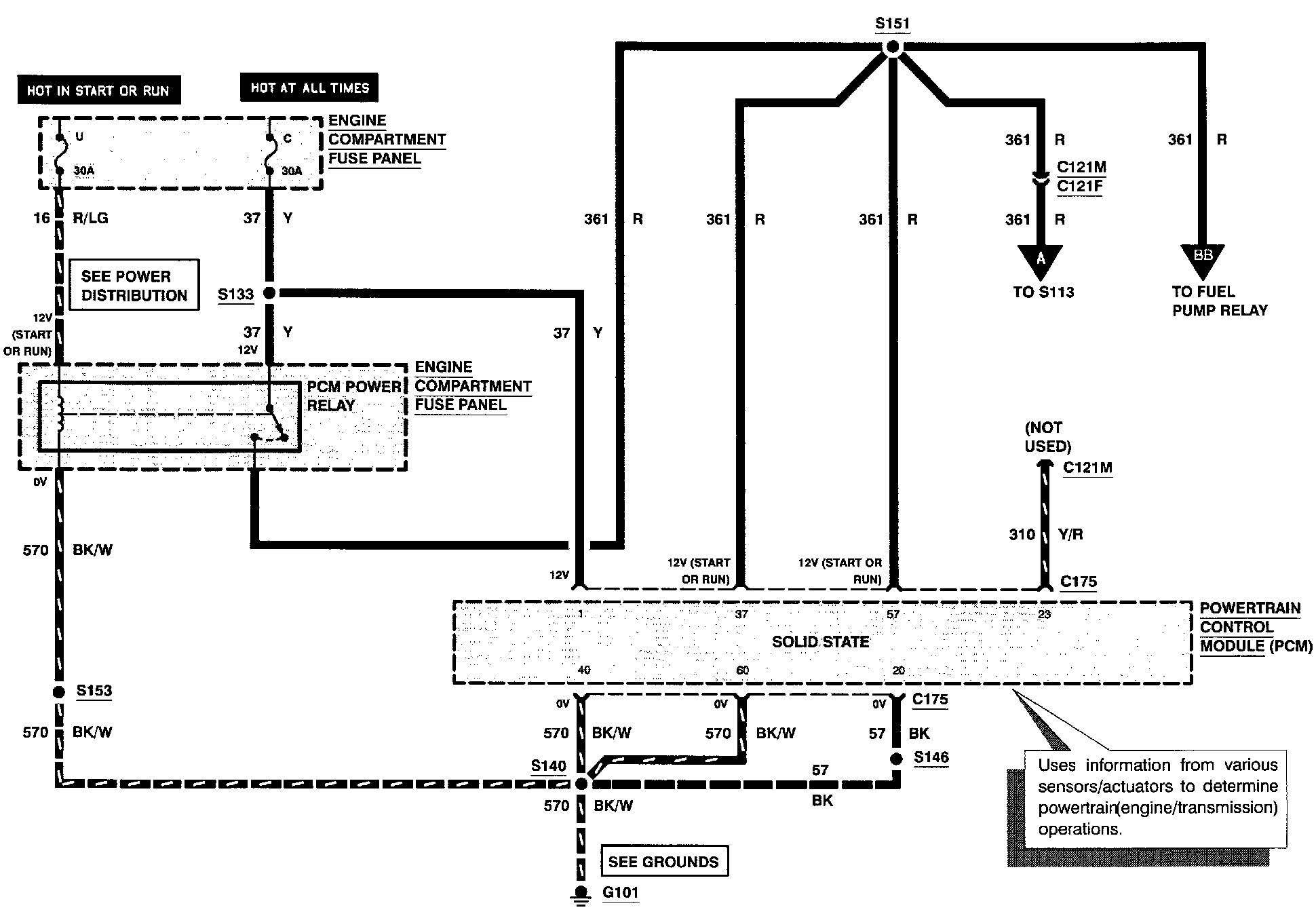

Engine Controls (Part 1 Of 7):

PCM POWER RELAY

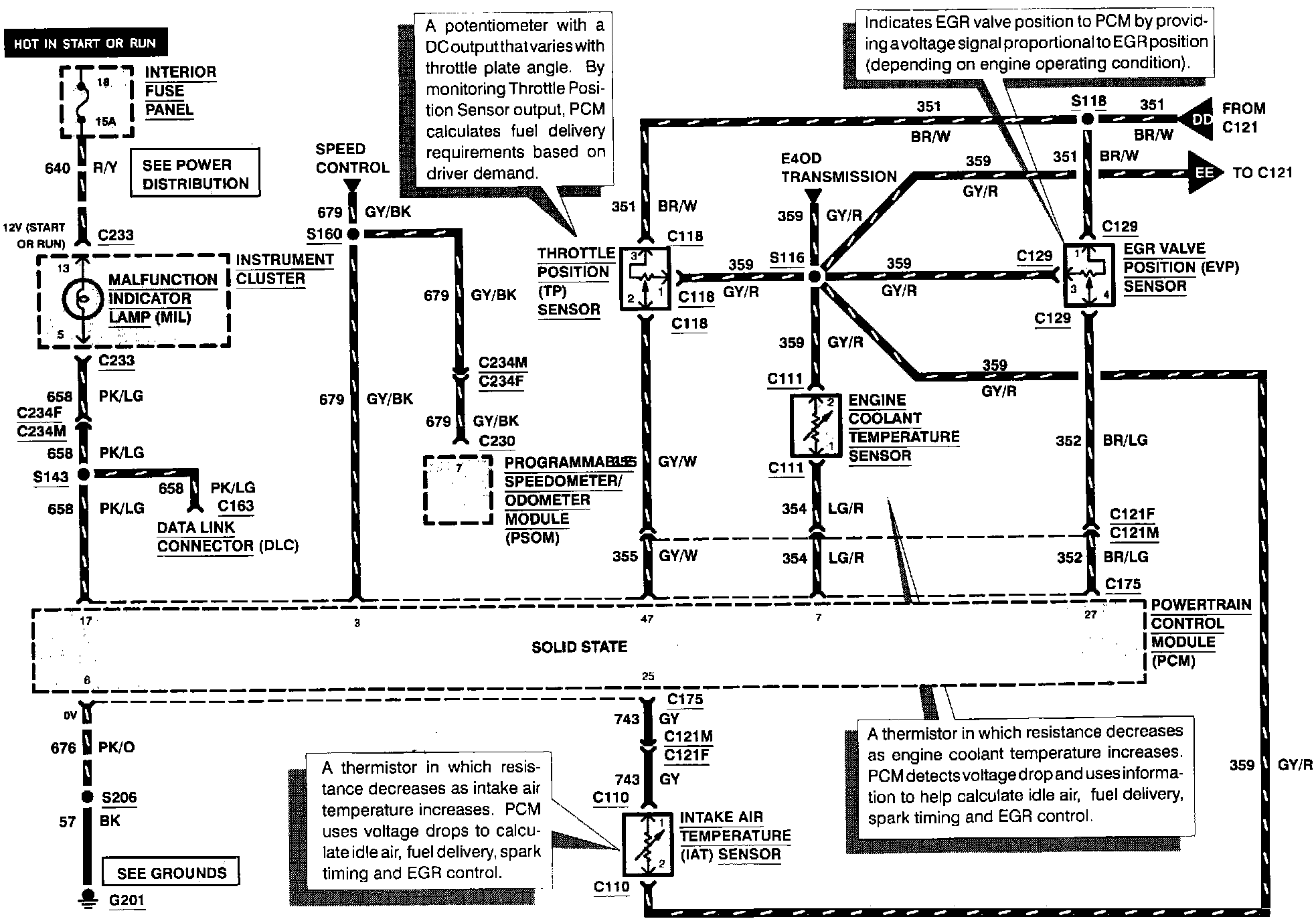

Engine Controls (Part 2 Of 7):

EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
MALFUNCTION INDICATOR LAMP
THROTTLE POSITION SENSOR

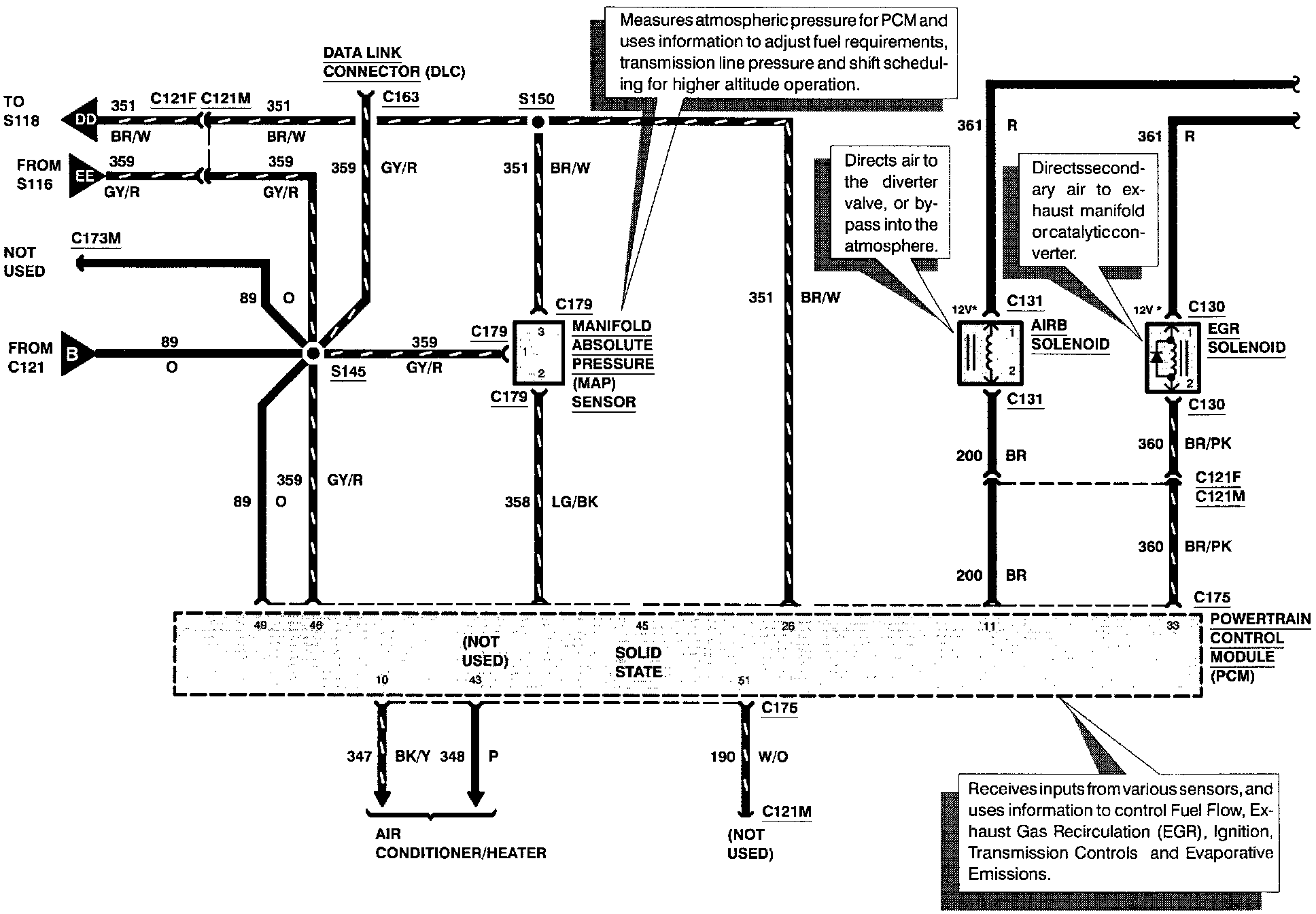

Engine Controls (Part 3 Of 7):

AIRB SOLENOID
EGR SOLENOID
MANIFOLD ABSOLUTE PRESSURE SENSOR

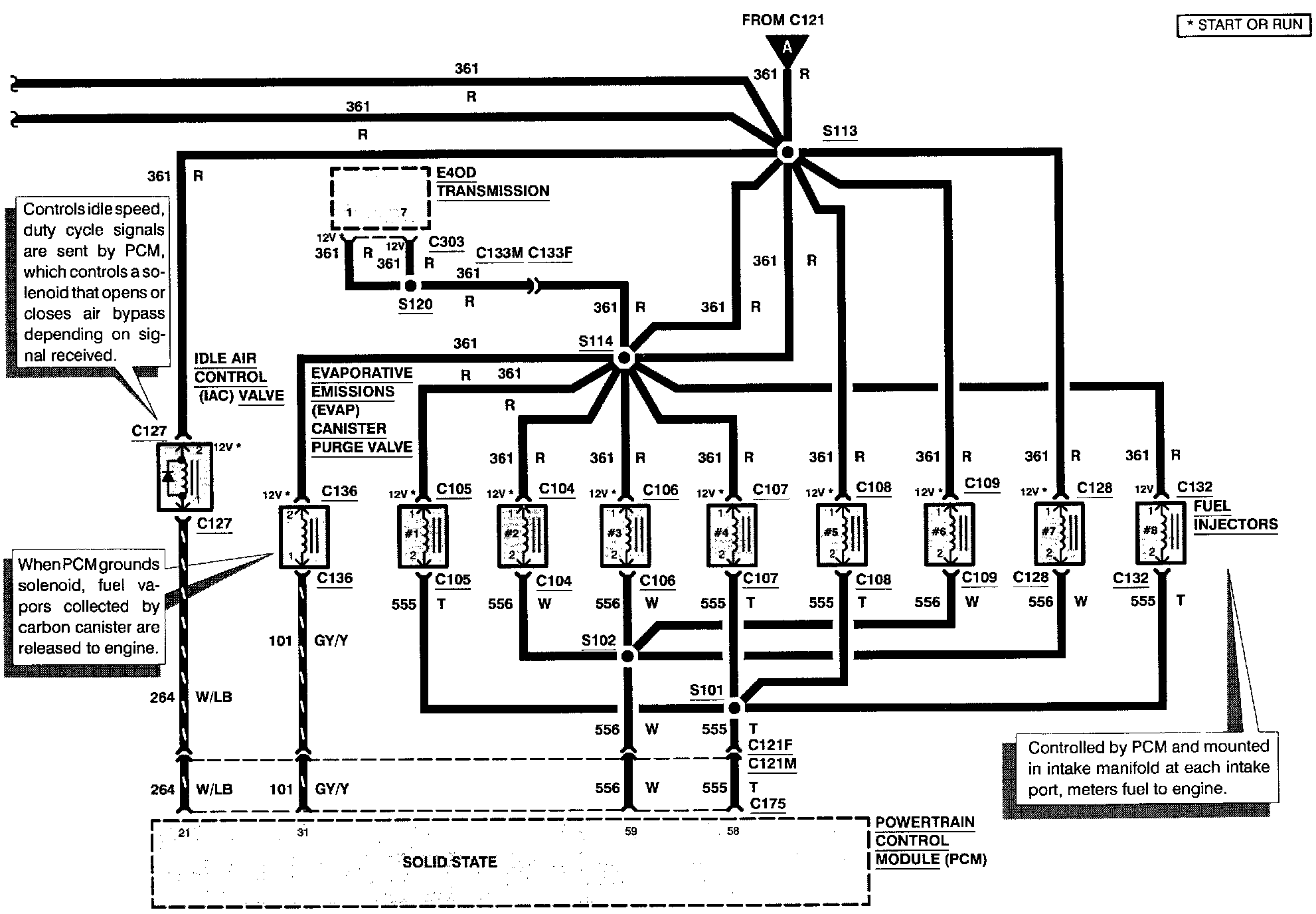

Engine Controls (Part 4 Of 7):

EVAPORATIVE EMISSIONS CANISTER PURGE VALVE
FUEL INJECTORS
IDLE AIR CONTROL VALVE

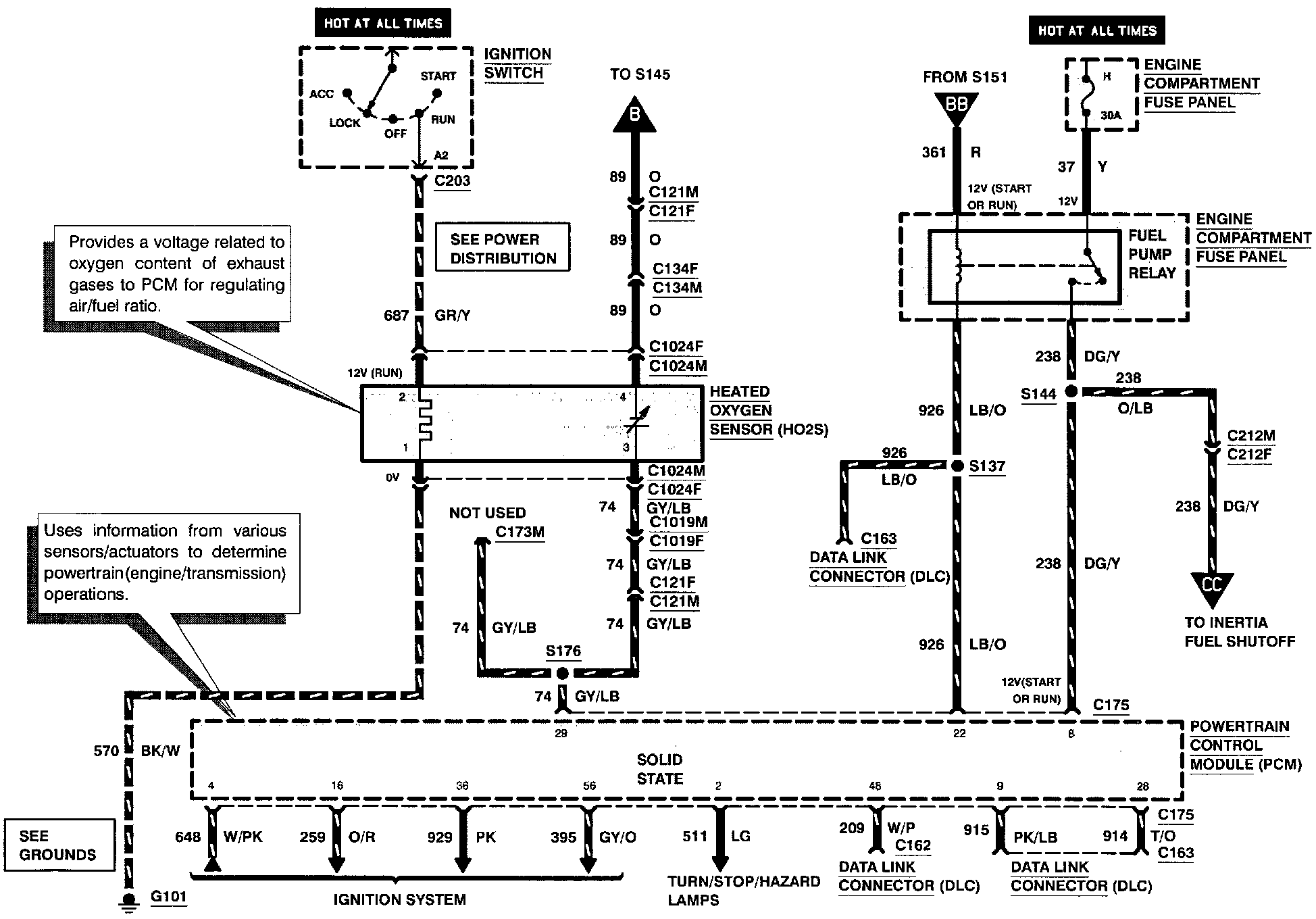

Engine Controls (Part 5 Of 7):

FUEL PUMP RELAY
HEATED OXYGEN SENSOR

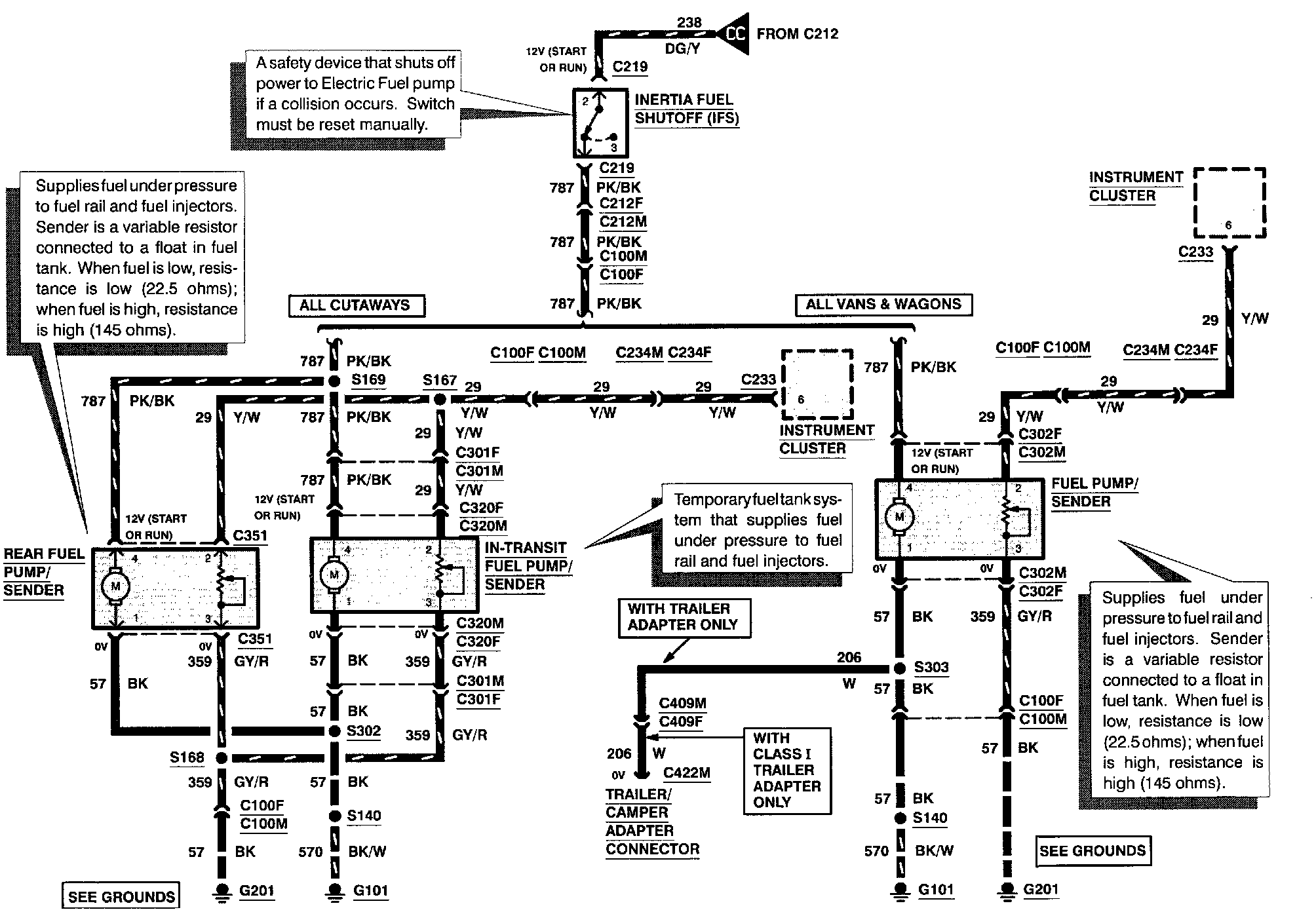

Engine Controls (Part 6 Of 7):

FUEL PUMP/SENDER
IN-TRANSIT FUEL PUMP/SENDER
INERTIA FUEL SHUTOFF
REAR FUEL PUMP/SENDER

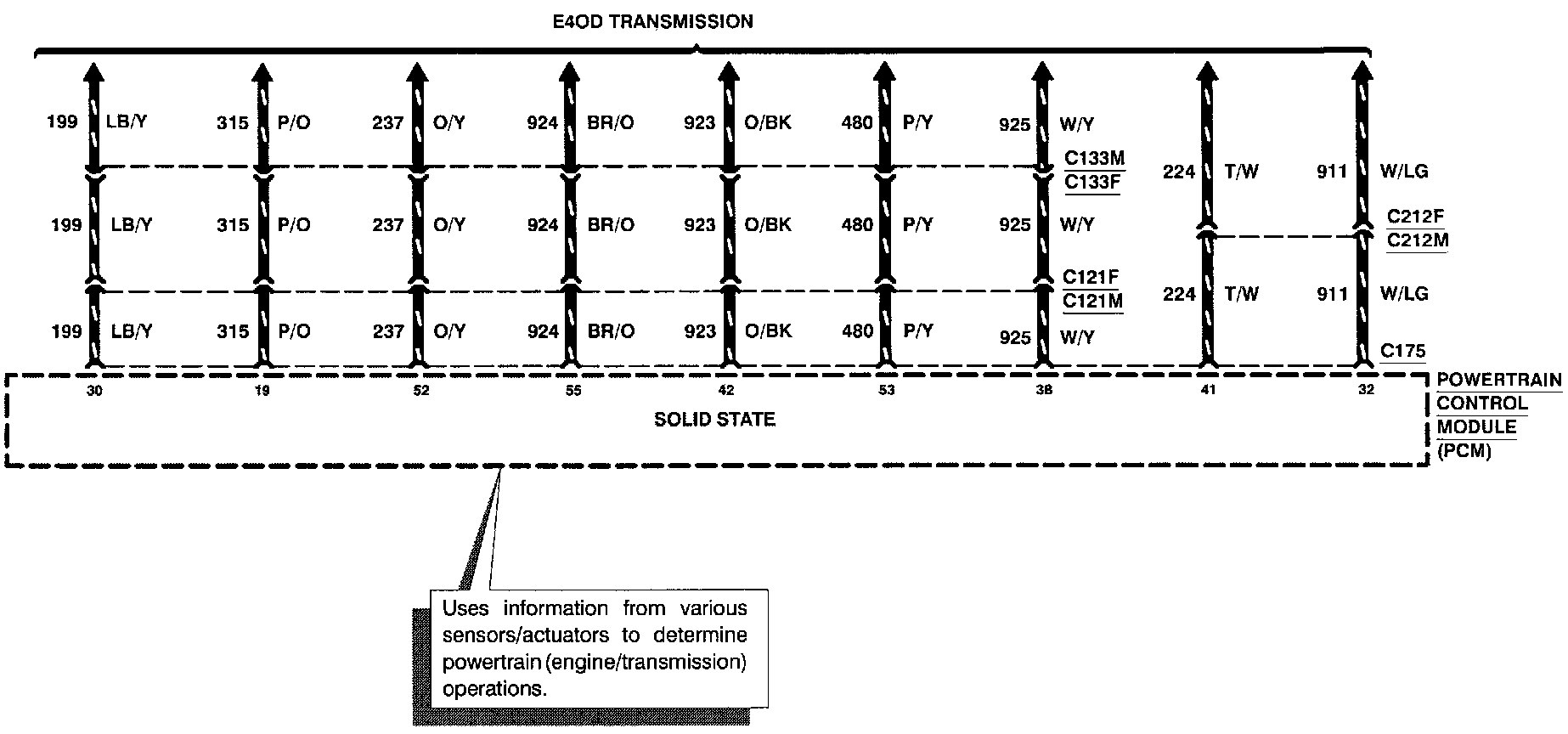

Engine Controls (Part 7 Of 7):
