Normal Scan Data Values - Includes PIDs

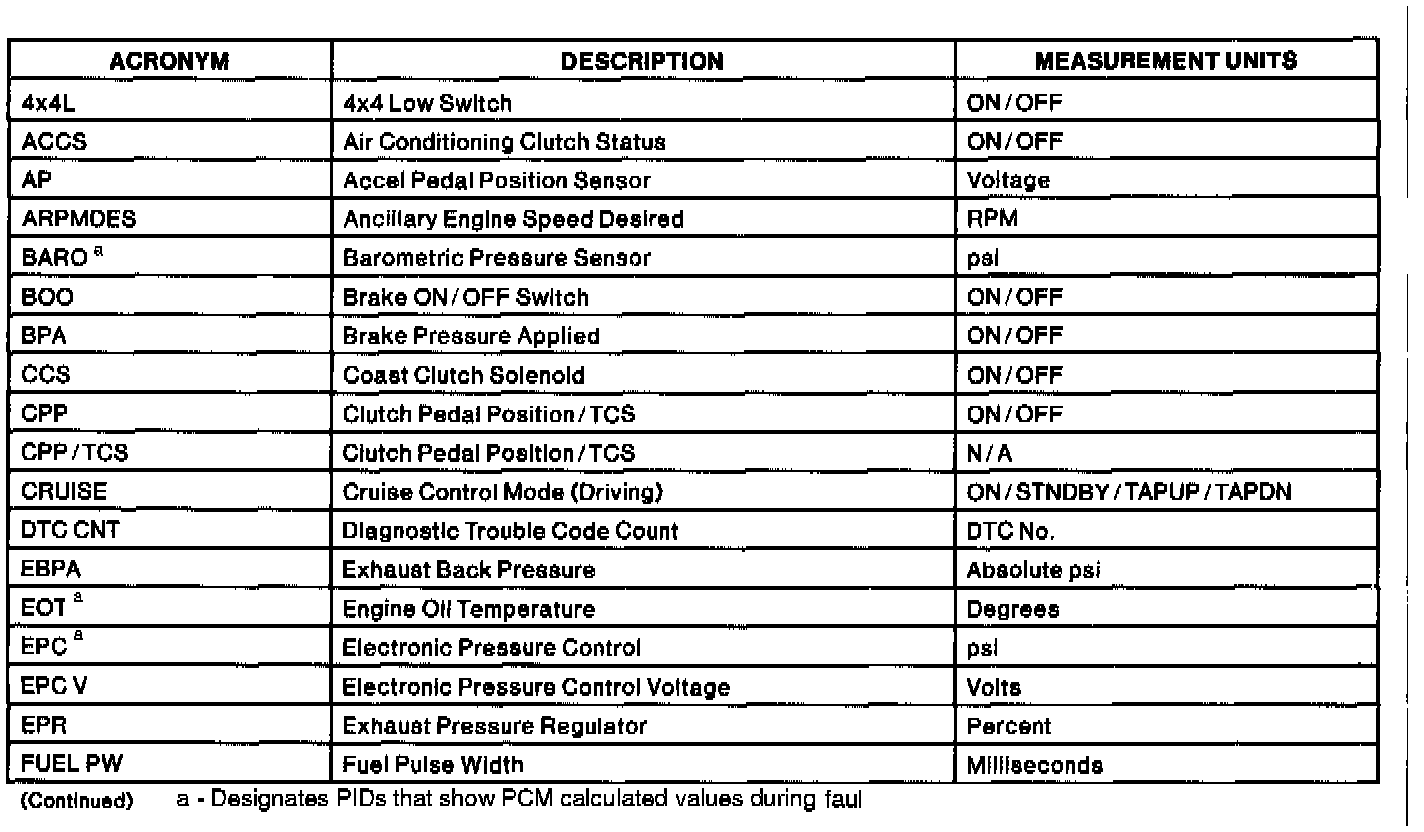

Parameter Identification (PID) List (Part 1 Of 2):

Part 2 Of 2:

The Parameter Identification (PID) mode allows access to certain data values, analog and digital inputs and outputs, calculated values, and system status information. Throughout the testing procedures, there will be references to PID values. PID Data Monitor and Record can be accessed from the New Generation Star (NGS) Scan Tool (or equivalent) through the Diagnostic Data Link Menu.
- Perform safety precautions.
- Connect the New Generation Star (NGS) Tester to the Data Link Connector (DLC) under the dash. Turn OFF accessories.
- Select Vehicle and Engine Selection menu.
- Select year, engine, model.
- Select DIAGNOSTIC DATA LINK.
- Select PCM POWERTRAIN CONTROL MODULE.
- Select PID DATA MONITOR AND RECORD.
- Turn key ON or start vehicle.
- Follow operating instructions from the menu.

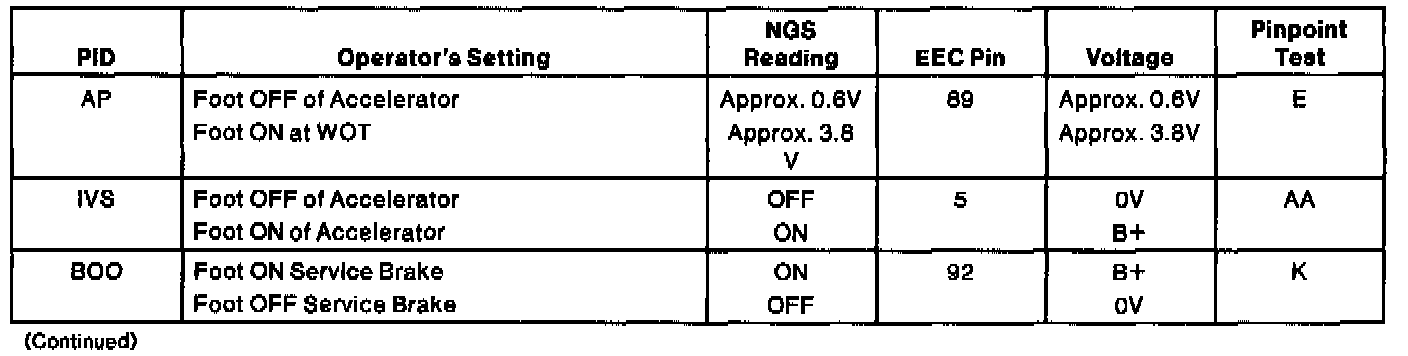

NGS-DRIVER OPERATED CONTROLS CHECK (Part 1 Of 2):

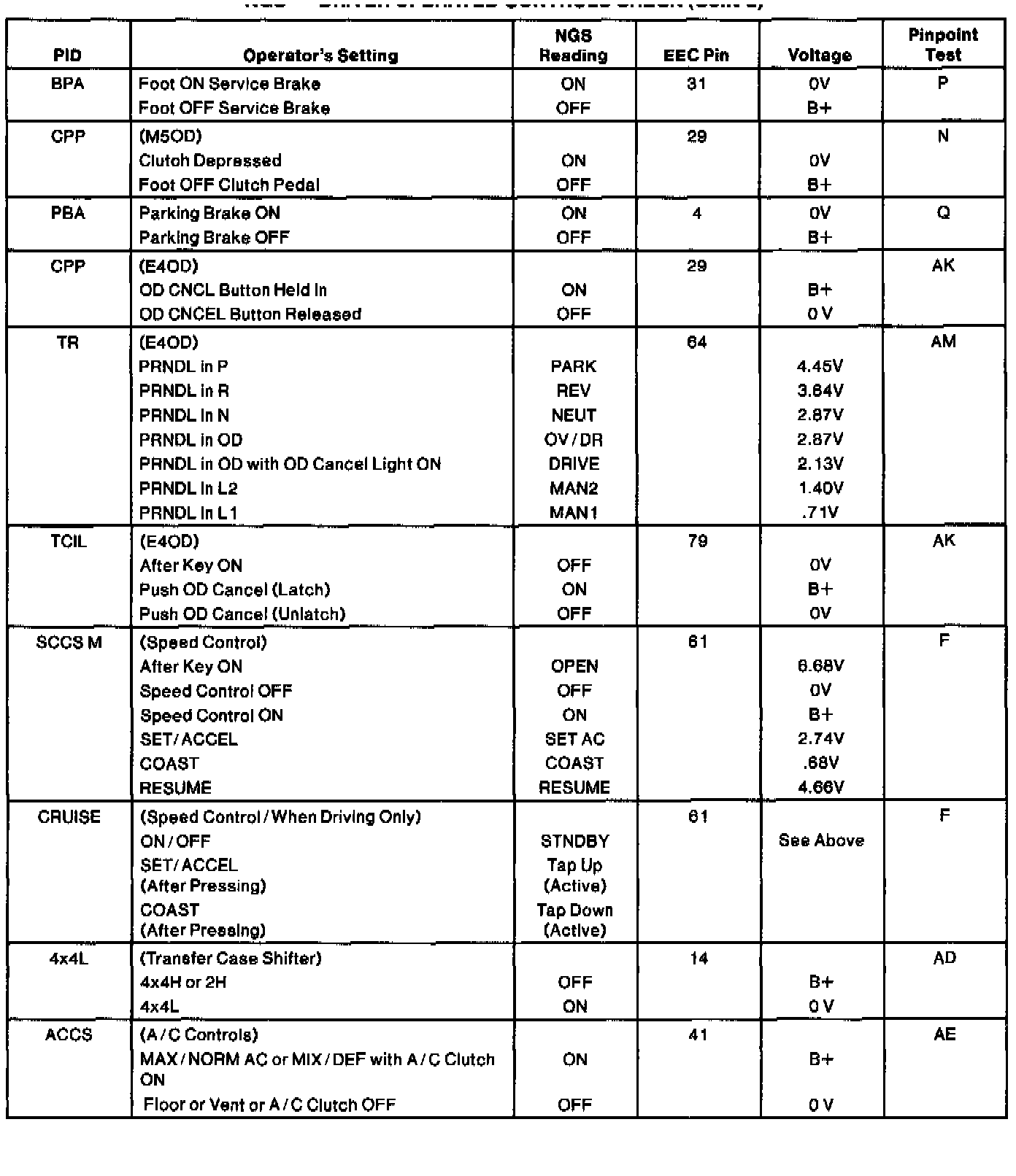

Part 2 Of 2:

- Select the PIDs, press START to begin monitoring.
