Fuse 9

Fuse 9 - protects the following circuits:
^ Memory Seat Module
^ Message Center
^ Electronic Automatic Temperature Control Module
^ Autolamps

Power Source
Power is supplied through Maxifuse 2

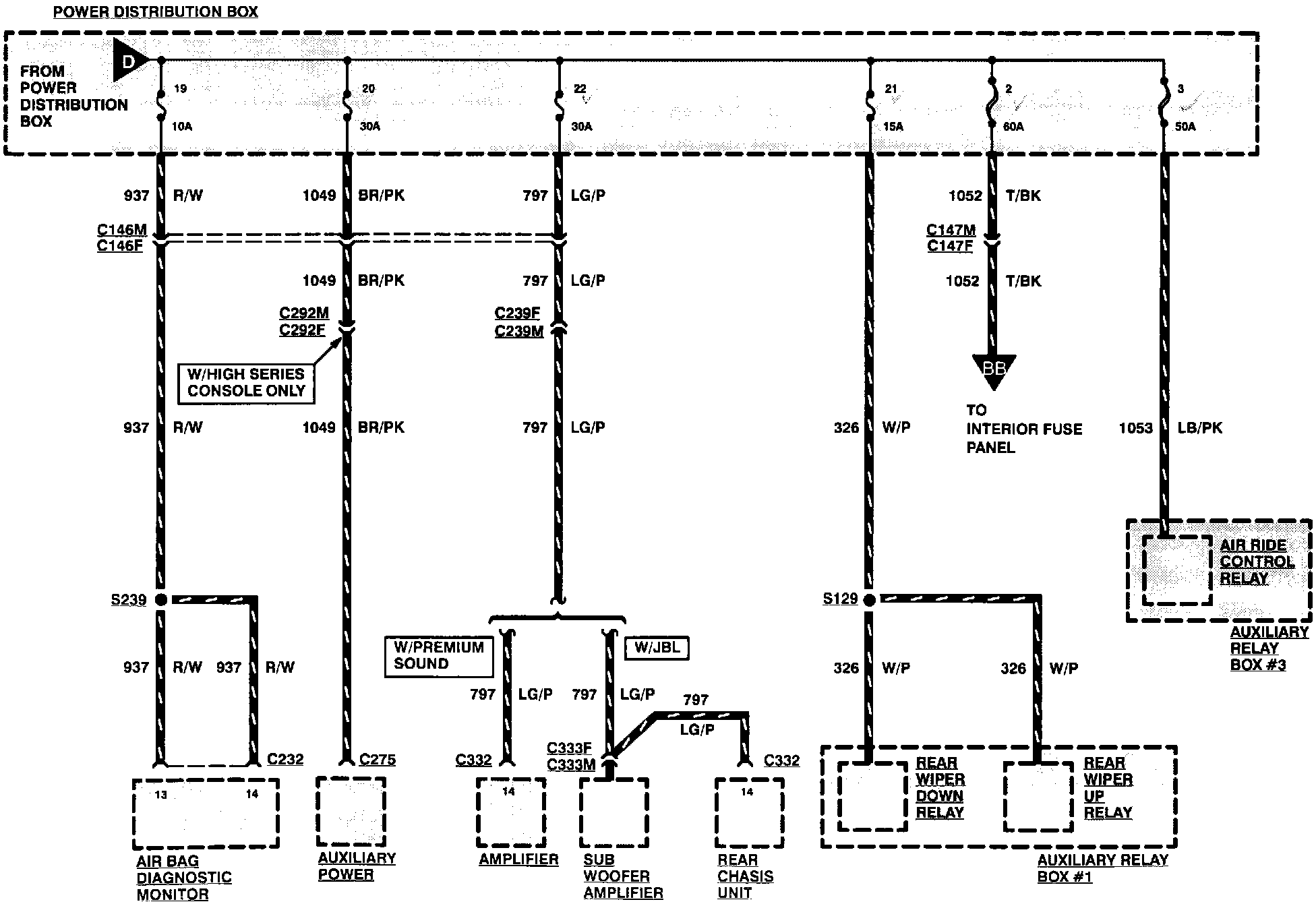

Power Distribution:

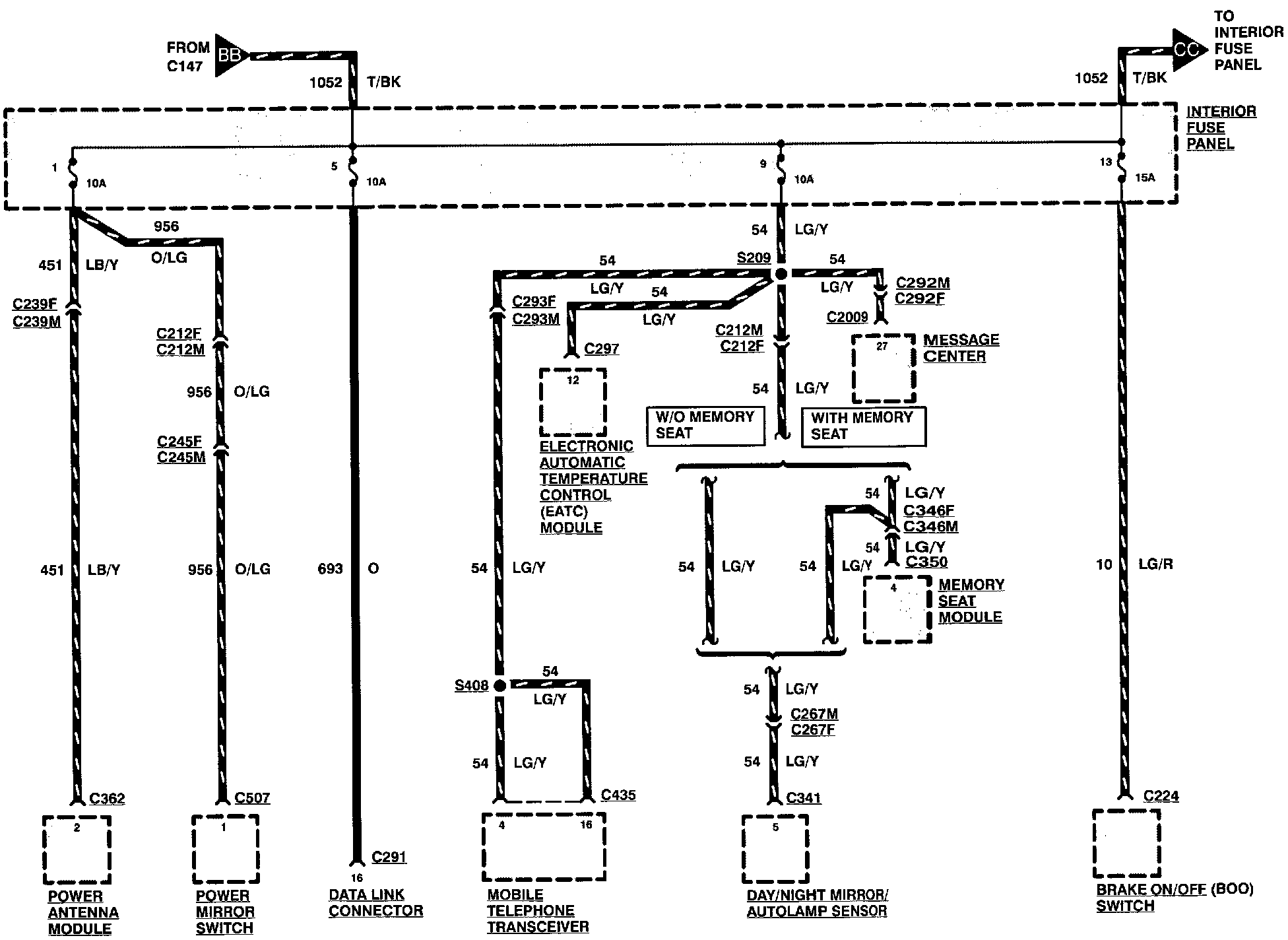

Power Distribution:

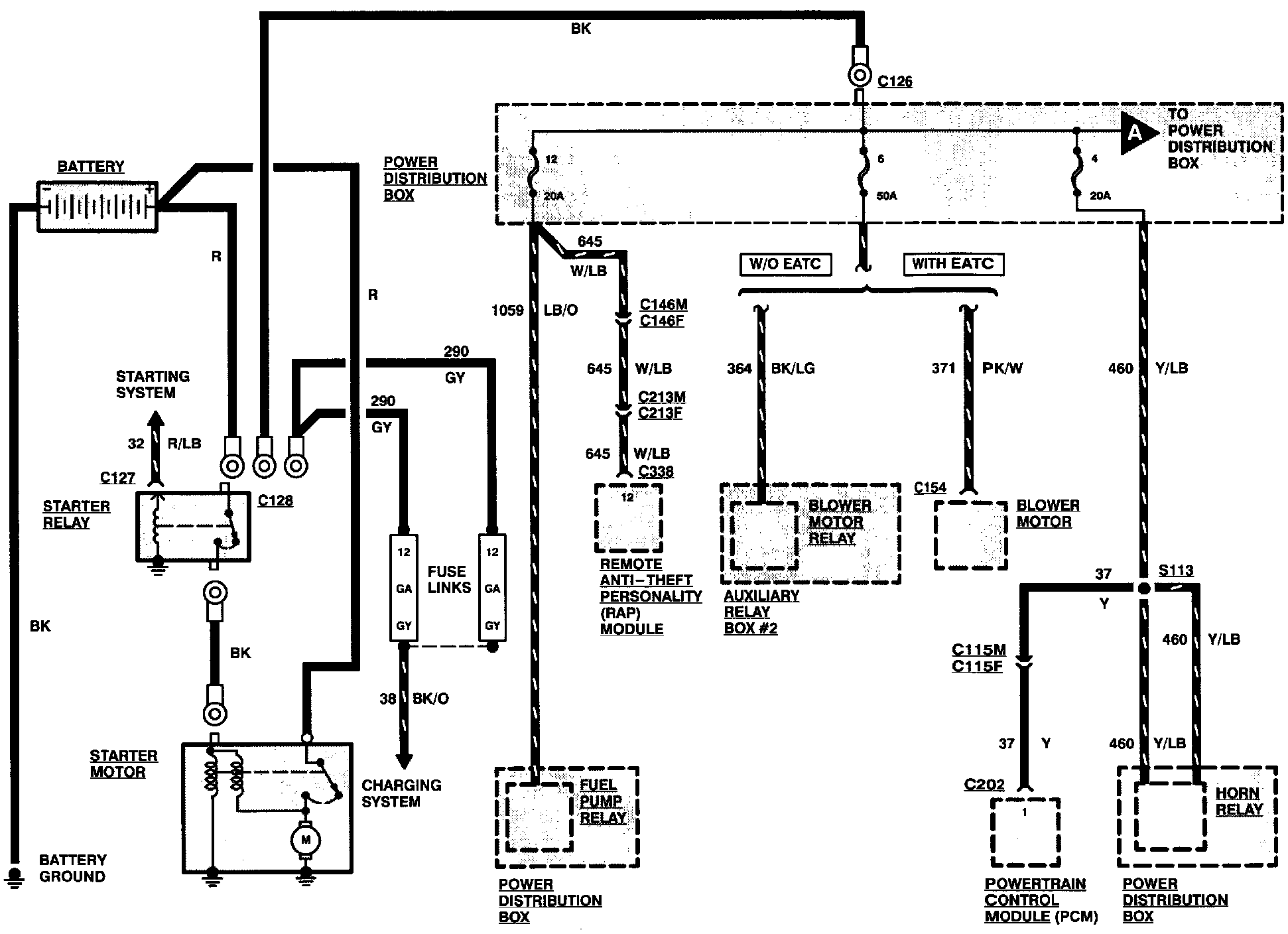

Power Distribution:
