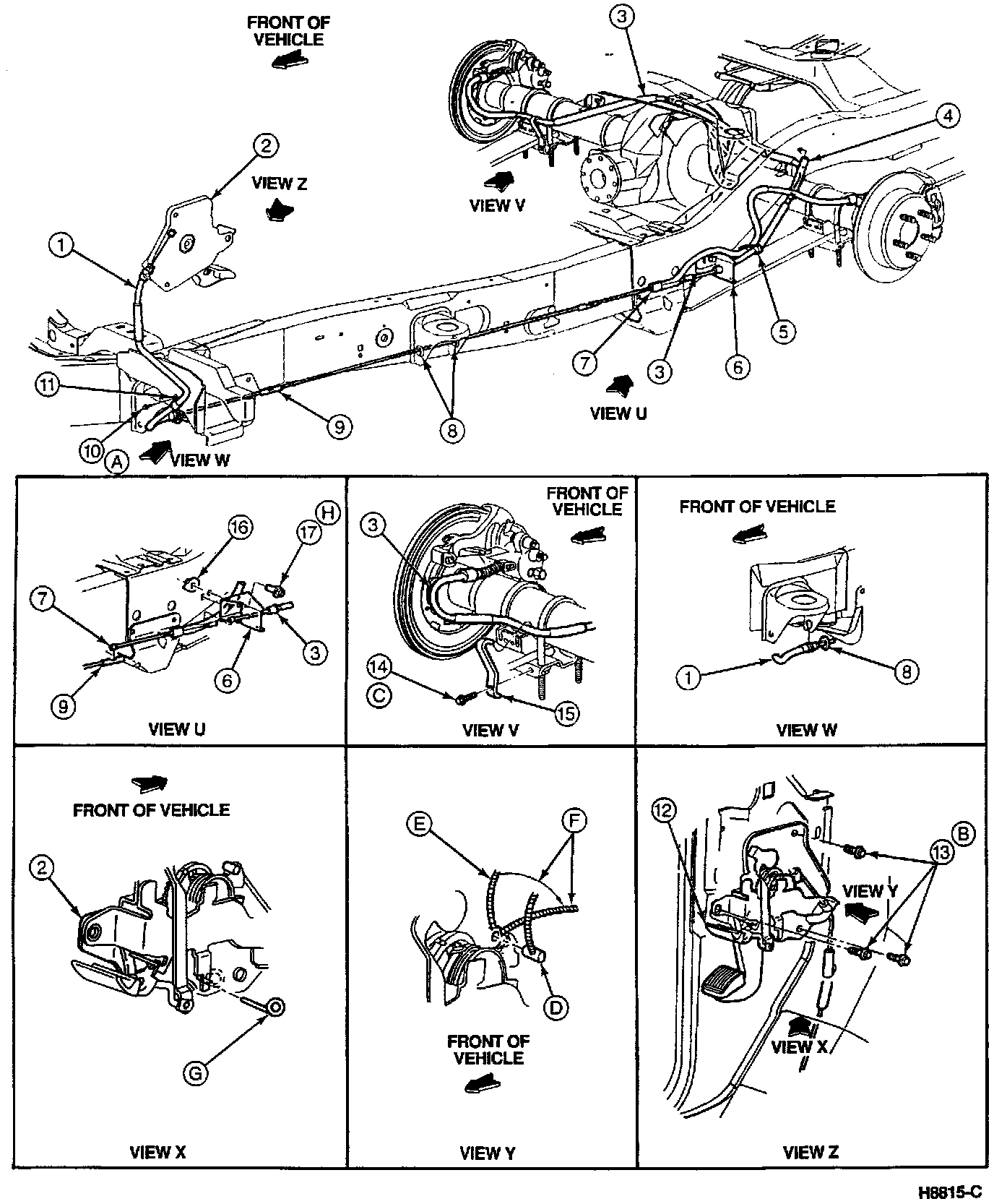

Front Cable

Item Part Number Description

1. 2853 Front Parking Brake Cable and Conduit
2. 2780 Parking Brake Control
3. 2A635 Parking Brake Rear Cable and Conduit (RH)
4. 2A709 Rear Parking Brake Cable Retainer
5. 2A530 Parking Brake Cable Insulator
6. 2530 Parking Brake Cable Bracket
7. 2A635 Parking Brake Rear Cable and Conduit (LH)
8. 2273 Grommet
9. 2A793 Parking Brake Intermediate Cable
10. N610959-S2 Bolt, Front Parking Brake Cable Clamp
11. 377699-S8 Clamp, Front Parking Brake Cable and Conduit
12. -- Parking Brake Release Handle (Part of 2780)
13. N806497-S2 Bolt, Parking Brake Control-to-Cowl Side
14. N611194-S2 Bolt, Parking Brake Cable Retainer Clip
15. 2A826 Parking Brake Cable Retainer Clip
16. N802621-S53B Nut
17. N605933-S2 Bolt, Parking Brake Cable Bracket-to-Frame

A -- Tighten to 15-20 Nm (11-14 ft lb).

B -- Tighten to 17-23 Nm (13-17 ft lb).

C -- Tighten to 6-8 Nm (54-70 lb-in).

D -- Parking Brake Front Cable and Conduit
Before Inserting into Ratchet Plate Pivot Hole.
E -- Parking Brake Front Cable and
Conduit After Inserting into Ratchet Plate Pivot Hole.
F -- Parking Brake Front Cable and
Conduit, Installed.
G -- 4mm (5/32-Inch) Steel Pin or
Equivalent Size Drill Bit.
H -- Tighten to 68-92 Nm (51-67 ft lb).

REMOVAL

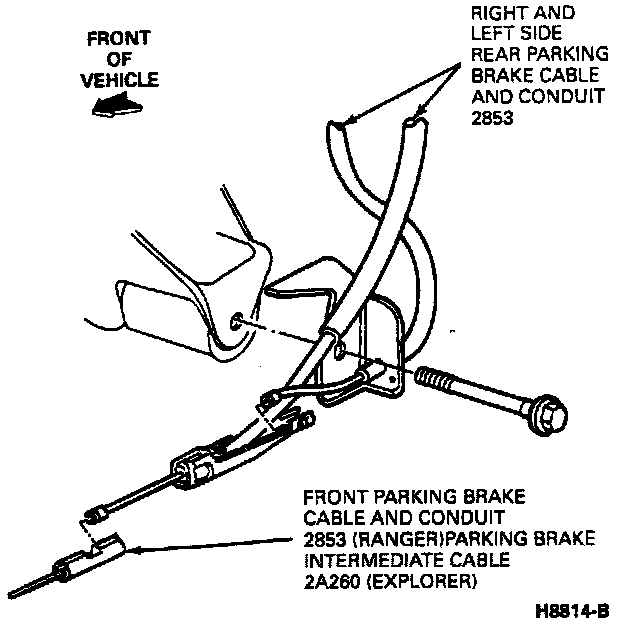

1. Relieve tension on the system by having an assistant pull on the parking brake intermediate cable (2A620) or front parking brake cable and conduit while you insert a 5/32-inch drill bit into the hole provided in the parking brake control. Tension Release
2. Disconnect the parking brake intermediate cable or front parking brake control cable from the parking brake rear cable and conduit.
3. To replace the parking brake intermediate cable, disconnect it from the front parking brake cable and conduit and remove it.
4. To replace the front parking brake cable and conduit, remove the cable anchor pin from the pivot hole in the control assembly ratchet pin.





5. Guide the front parking brake cable and conduit from the parking brake control and disconnect it from the frame mounting bracket. Remove cable-to-frame attaching screw, if screw is present, and slide cable from vehicle.

INSTALLATION
1. Feed the front parking brake cable and conduit through the hole in the front frame mounting bracket. Push the retainer through the hole so the fingers expand over the hole.
2. Route the front parking brake cable and conduit around the control assembly pulley and insert the cable anchor pin in the pivot hole in the ratchet assembly.
3. If removed, install cable-to-frame attaching screw.
4. Connect the front parking brake cable and conduit to the left rear parking brake cable bracket (2530).
5. For intermediate cable installation, feed cable through holes in center frame bracket.
6. Attach cable to front parking brake cable and conduit and to left rear parking brake cable bracket.
