Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
Explorer 4WD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
Power Locks

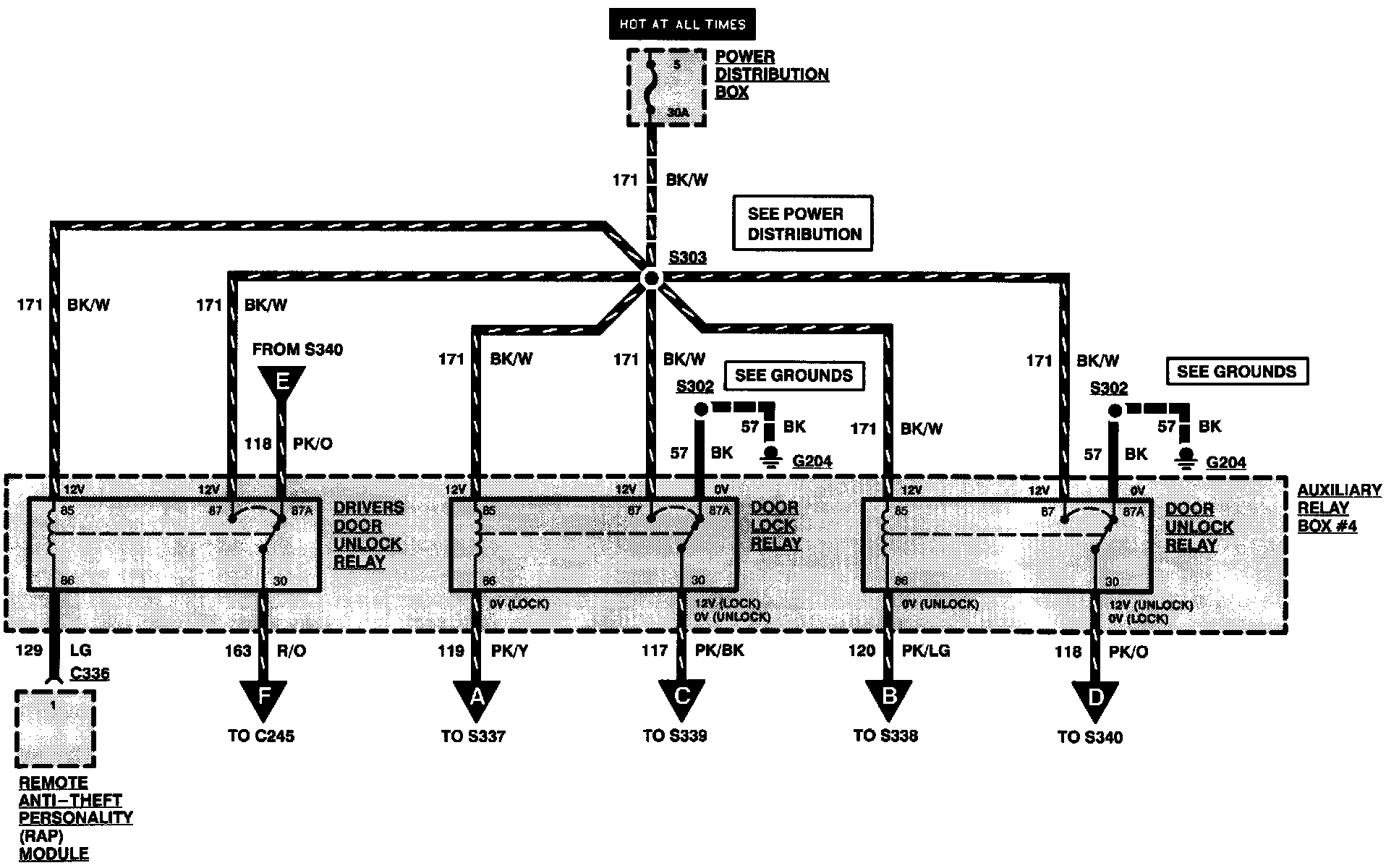

Power Door Locks (Part 1 Of 3):

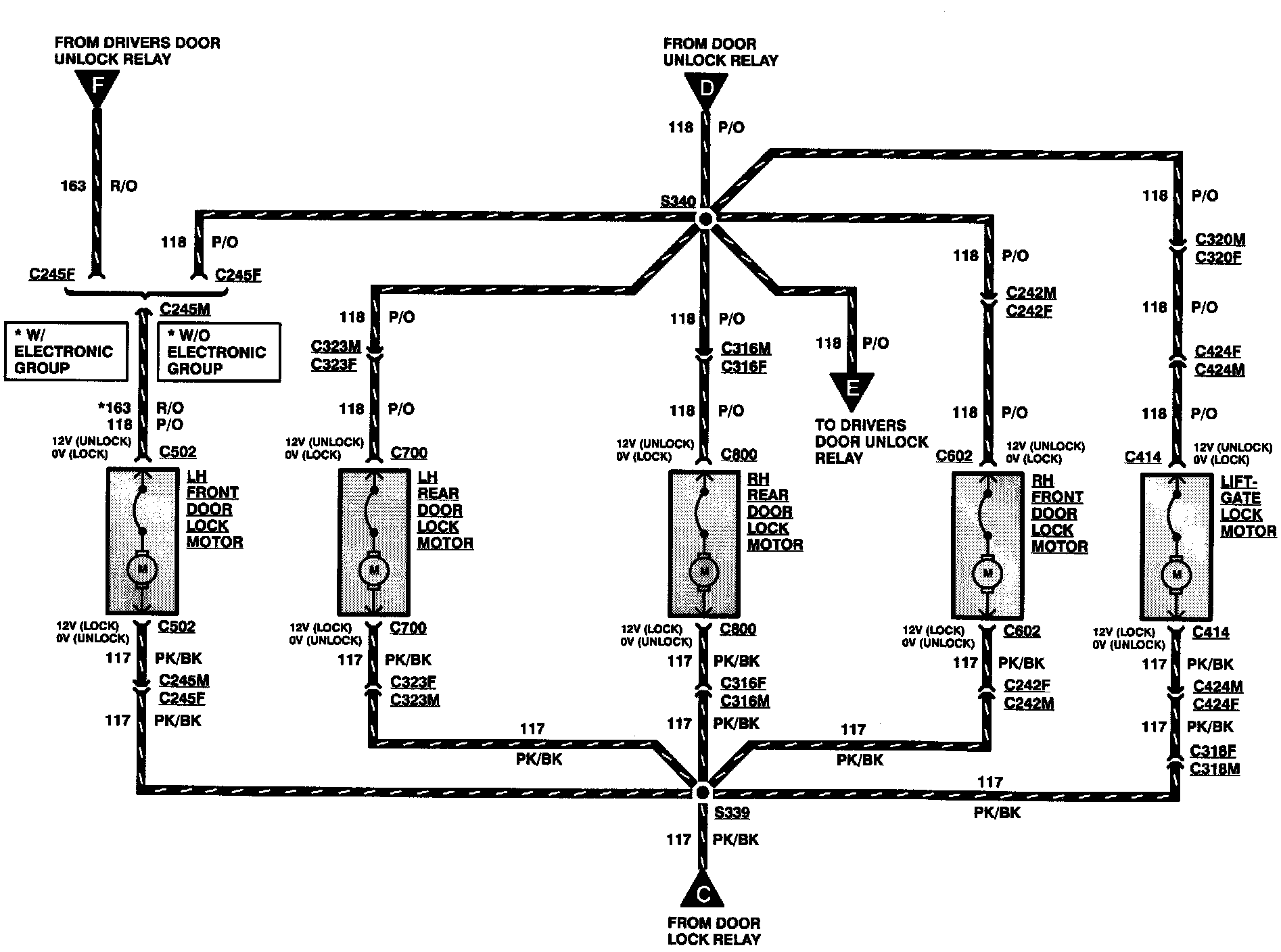

Power Door Locks (Part 2 Of 3):

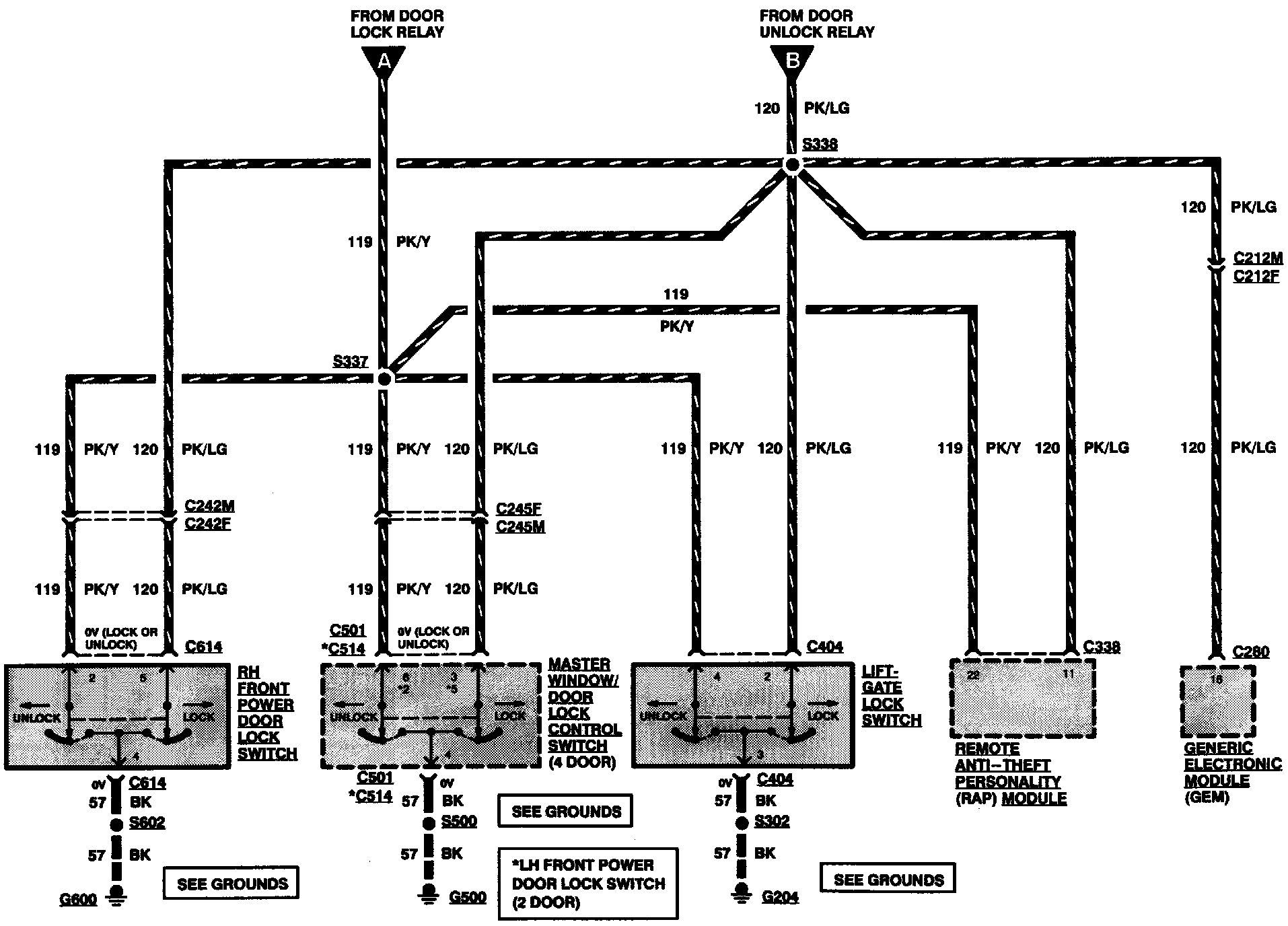

Power Door Locks (Part 3 Of 3):
