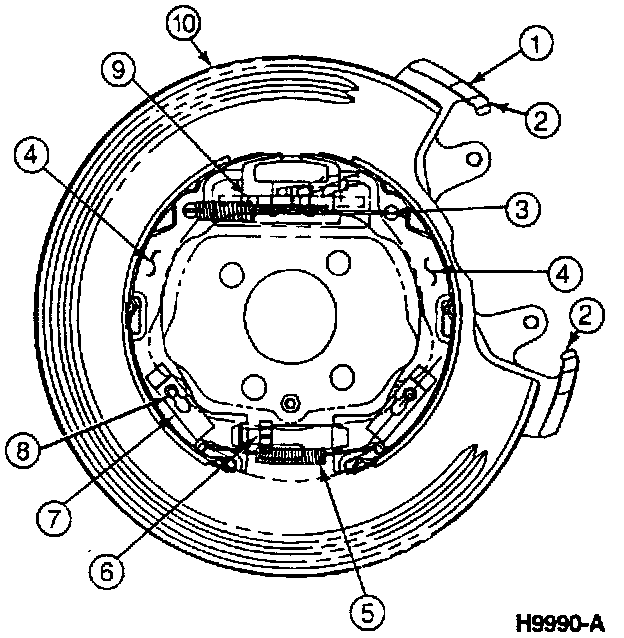

System Diagram

ITEM PART NUMBER DESCRIPTION

1. 2C220 Rear Wheel Disc Brake Adapter
2. -- Shoe Slippers (Part of 2001)
3. 2L642 Return Spring, Upper
4. 2N712 Parking Brake Shoe and Lining
5. 2049 Brake Shoe Adjusting Screw Spring
6. 2041 Parking Brake Adjuster
7. 2068 Brake Shoe Hold-Down Spring
8. 2069 Brake Shoe Hold-Down Spring Pin
9. 2A637 Parking Brake Lever
10. 2C028 Rear Wheel Disc Brake Shield
