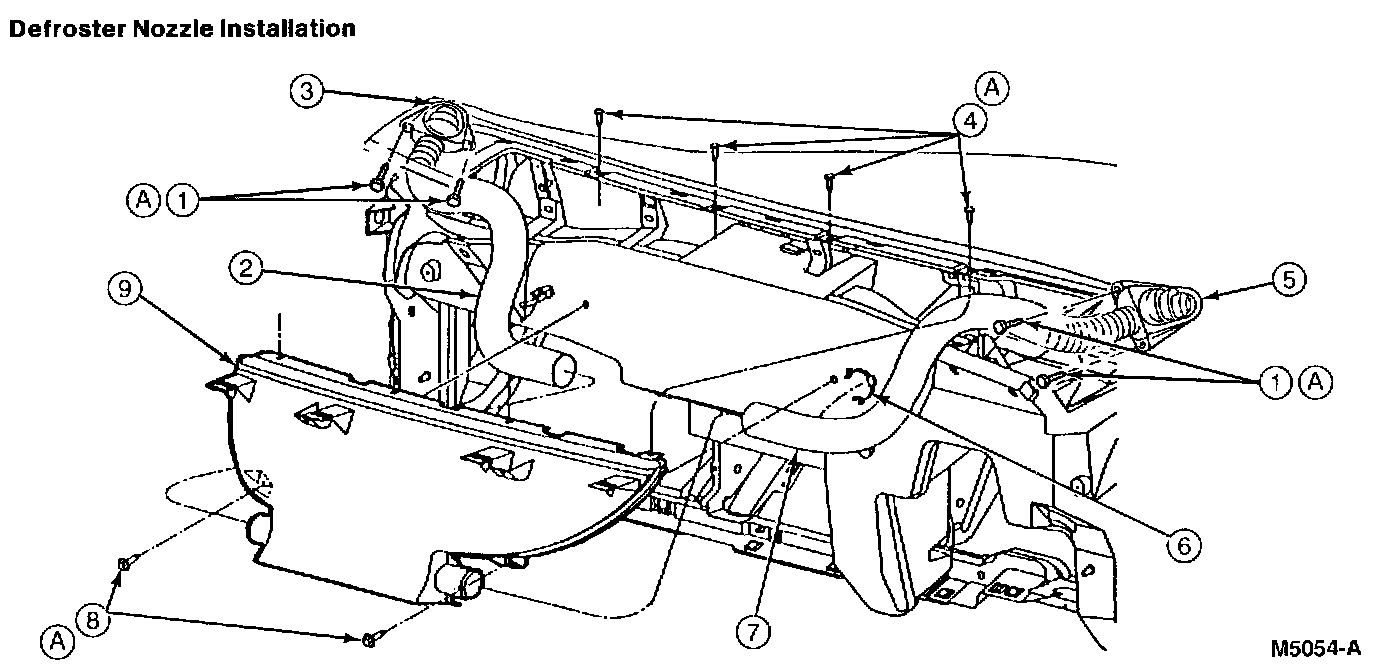

Defrost Nozzle
Removal and Installation 1.
Remove instrument panel.
Instrument Cluster / Carrier 2.
Remove four screws at the top of the defroster, on front of instrument panel pad.
3.
Remove two screws attaching defroster to the instrument panel duct beam.
4.
Disconnect demister hoses from defroster (pull off).
5.
Remove nozzle assembly.
6.
To install, follow installation procedures in reverse order.
