A/C - Revised Temperature Control Cable

Article No.
95-11-10

06/05/95

^ AIR CONDITIONING - "PULL-PULL" TEMPERATURE DOOR CONTROL CABLE - VEHICLES BUILT AFTER 2/27/95 - SERVICE TIP

^ HEATER - "PULL-PULL" TEMPERATURE DOOR CONTROL CABLE - VEHICLES BUILT AFTER 2/27/95 - SERVICE TIP

LIGHT TRUCK:
1995 BRONCO, F-150-350 SERIES

ISSUE:
A revised temperature door control cable (pull-pull technique), temperature control cable bracket and plenum has been developed and placed into production on the 1995 F-Series/Bronco built after February 27, 1995.

ACTION:
Refer to the 1995 F-Series/Bronco Service Manual, Section 12-02, Pages 10 and 11, for servicing procedures on temperature control bracket and cable. Temperature Cable Disconnect Tool (T94Pt1 8532-A) should be used at temperature control bracket.

The illustrations detail the temperature control assembly and pull-pull cable system:

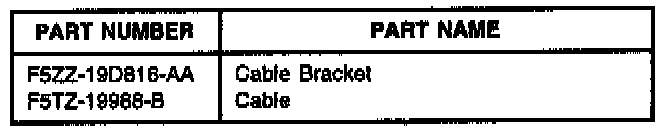

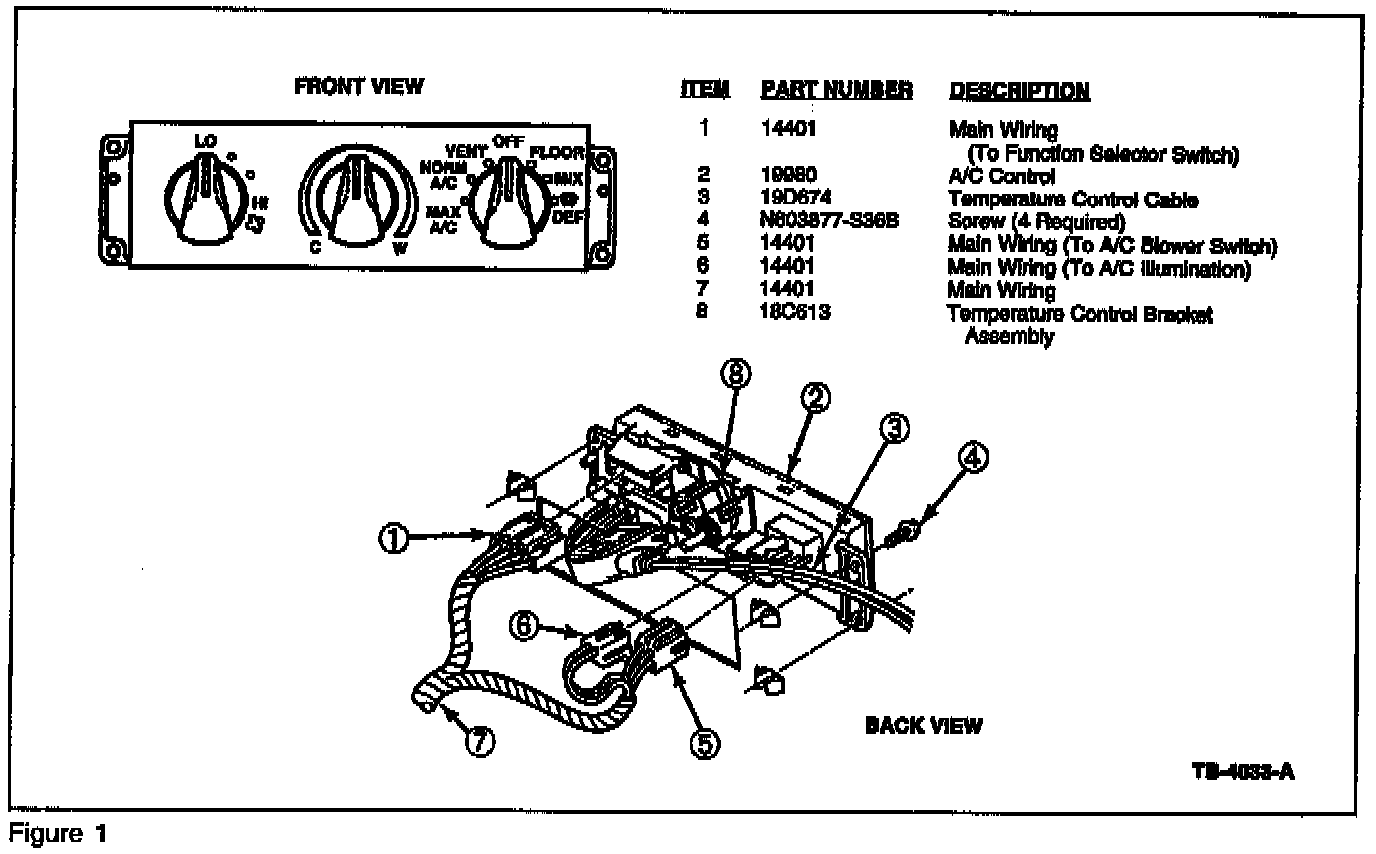

^ Figure 1 - Control assembly for heater or A/C showing new temperature control cable bracket (F5ZZ-19D816-AA) in the assembly and the new cable (F5TZ-19988-B).

HVAC Plenum Chamber Unit:

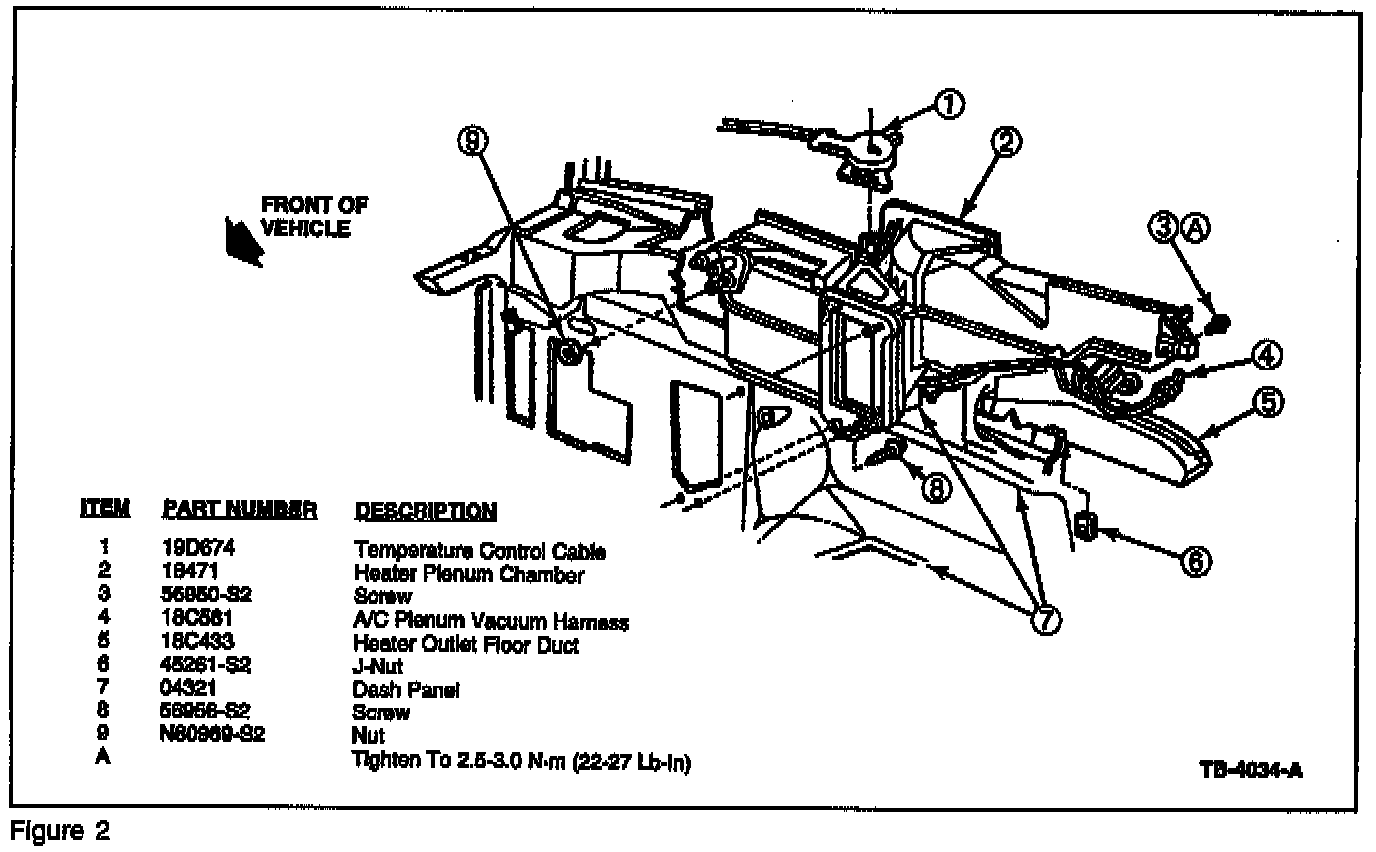

^ Figure 2 - Plenum housing assembly showing cable, post and cam relationship.

Blend Door Cable Attachments:

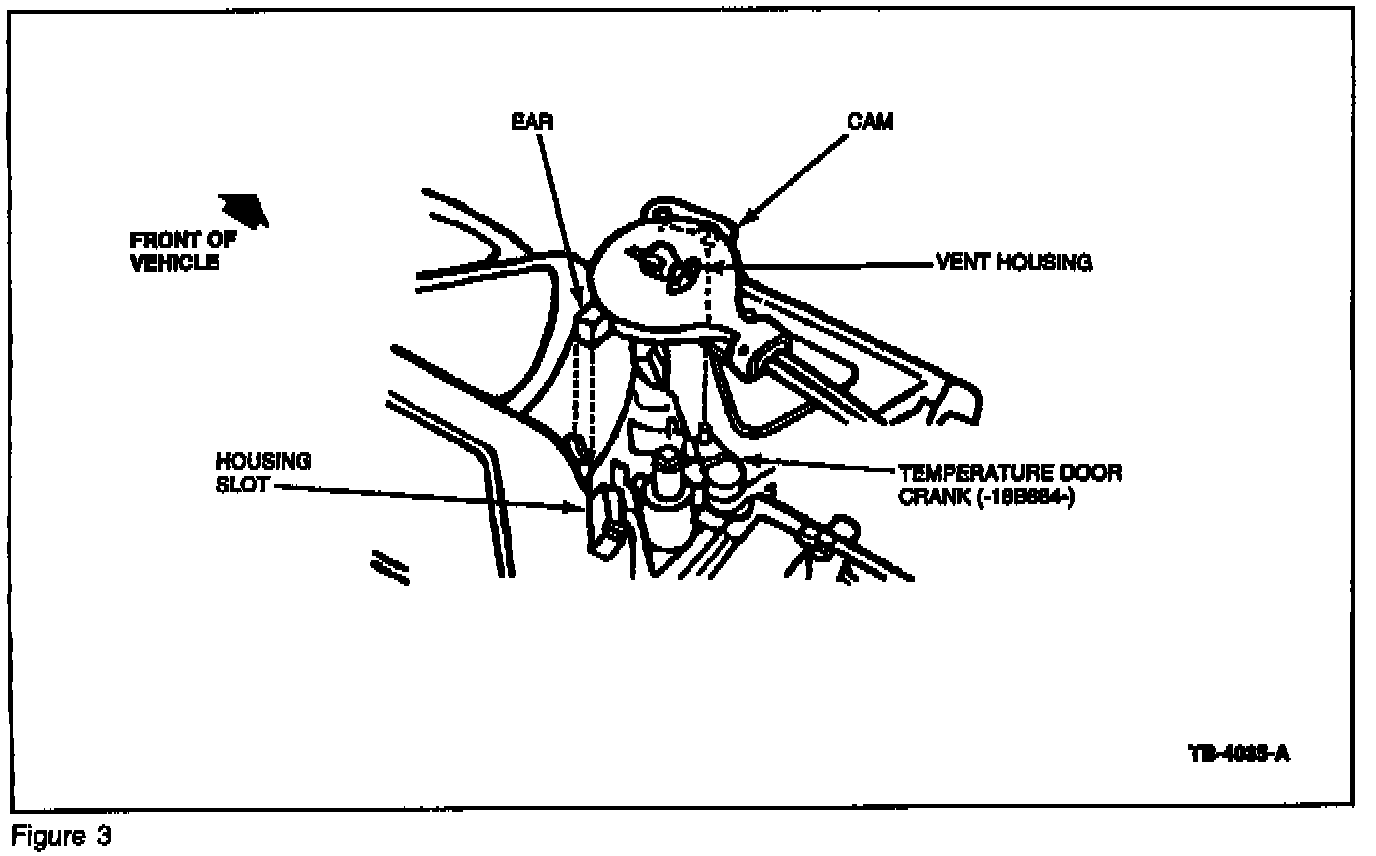

^ Figure 3 - Heater core cover and temperature door crank positioning for cable installation.

Parts Block:

Parts Block

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 208000, 208100, 208200, 208300, 208300, 208999
