Home
>>
Ford
>>
1995
>>
F 150 2WD Pickup V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
System Diagram
>>
Vacuum and Vapor Hose Routing

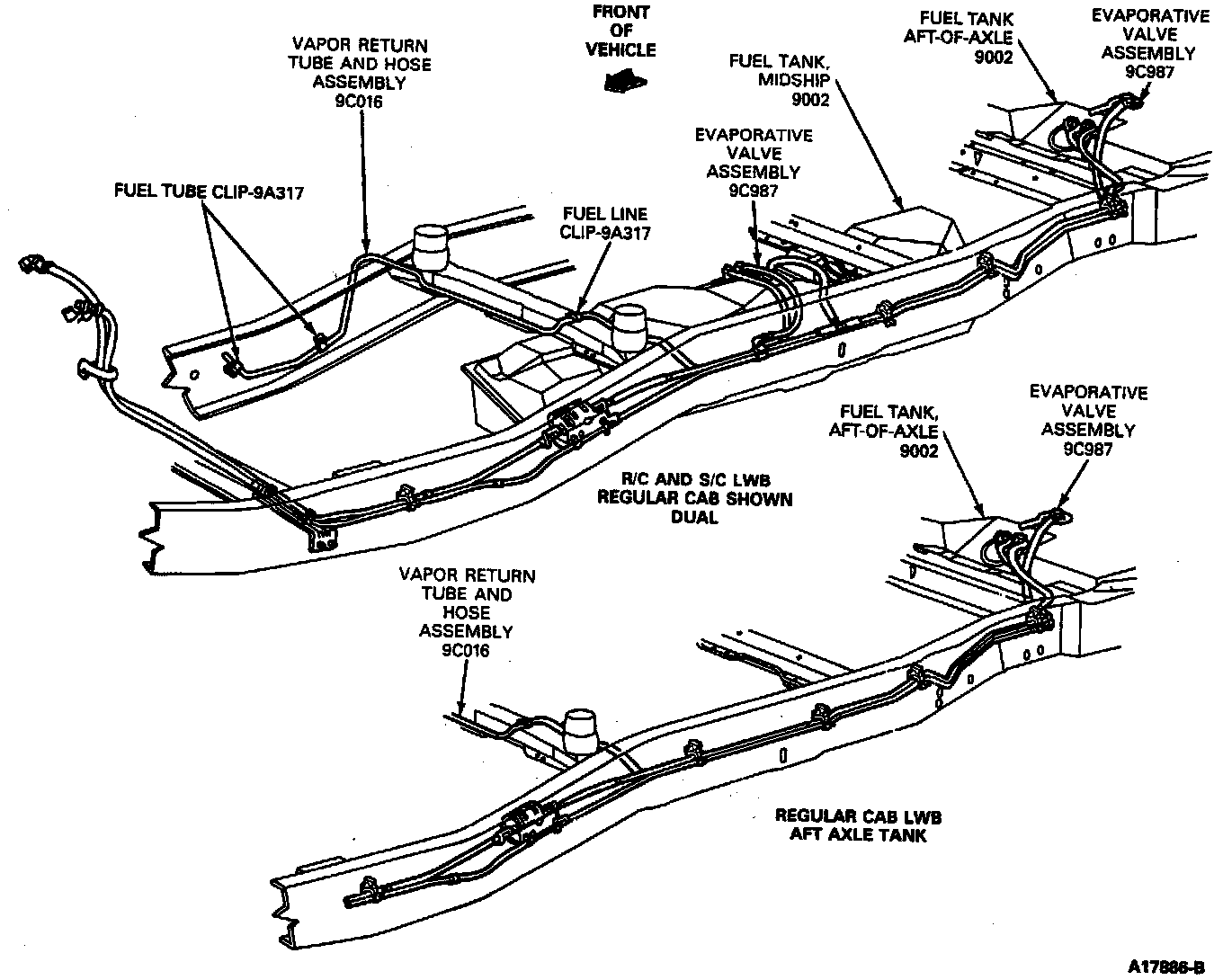

Vacuum and Vapor Hose Routing
Vapor Lines:
