Ground Diagrams (By Component Name)
Grounds (G100):
Brake Fluid Level Switch
Engine Compartment Fuse Box
Engine Compartment Lamp
Fog Lamps Relay
Left Fog Lamp
Left Front Park/Turn Lamp
Left Front Side Marker Lamps
Left Headlamp
PCM Power Relay
RABS Valve Assembly
Trailer Backup Lamps Relay
Trailer Battery Charge Relay
Trailer Marker Lamps
Trailer Relay Box
Windshield Washer Pump Motor
Windshield Wiper Motor
Grounds (G100):
Front Tank Fuel Pump/Fuel Gauge Sender
Rear Tank Fuel Pump/Fuel Gauge Sender
Grounds (G101, G103, G104):
Heated Oxygen Sensor
Mass Air Flow Sensor
Powertrain Control Module
Right Fog Lamp
Right Front Park/Turn Lamp
Right Front Side Marker Lamps
Right Headlamp
Grounds (G100) (Without Flare Side):
Left Backup Lamp
Left Rear Park/Stop/Turn Lamp
License Lamps
Right Backup Lamp
Right Rear Park/Stop/Turn Lamp

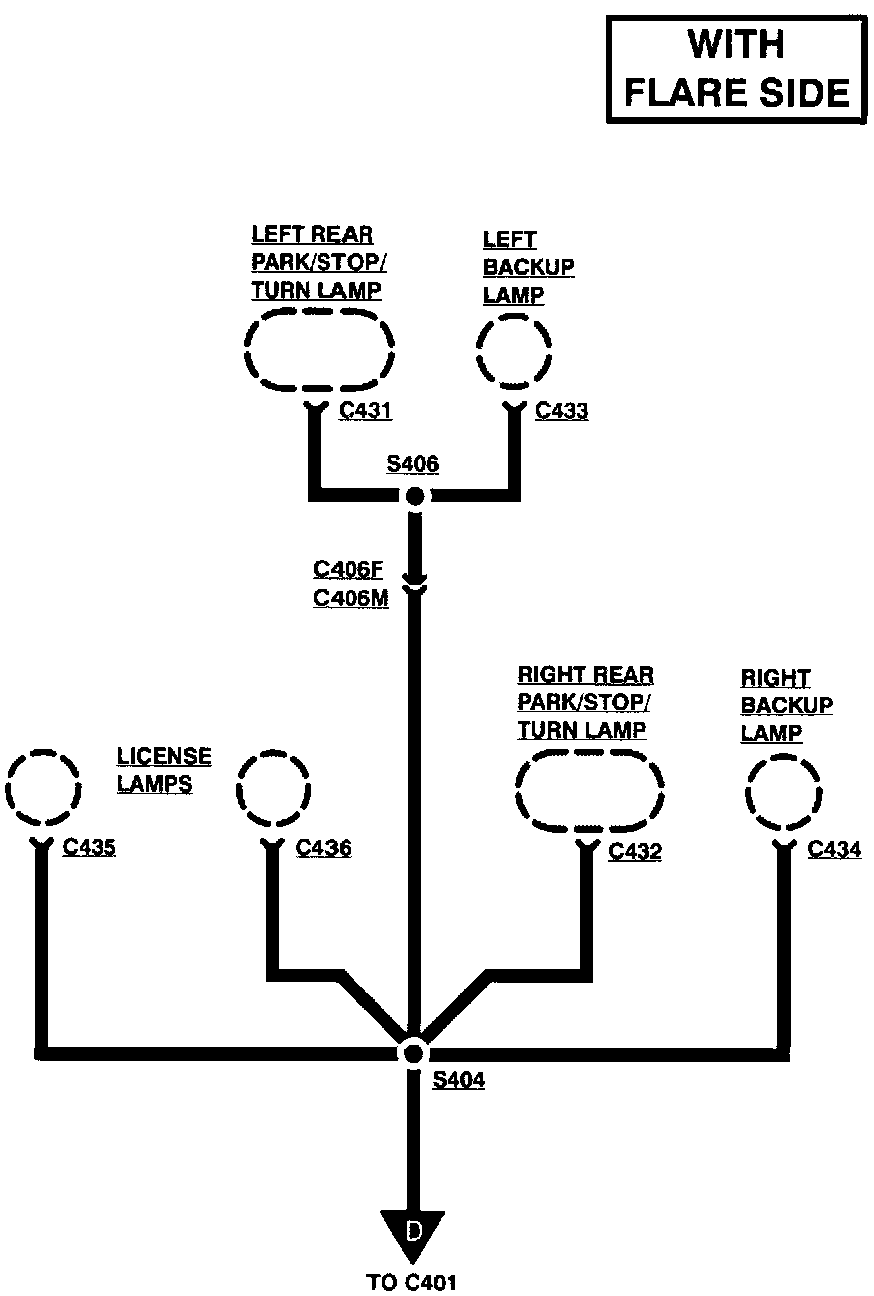

Grounds (G100) (With Flare Side):
Left Rear Park/Stop/Turn Lamp
Left Backup Lamp
License Lamps
Right Backup Lamp
Right Rear Park/Stop/Turn Lamp
Grounds (G100):
A/C Clutch Field Coil
A/C Resistor Diode
Heated Oxygen Sensor
Instrument Cluster
Transmission Range Sensor
Grounds (G200):
Anti-Theft Controller Module
Instrument Cluster
Powertrain Control Module
Programmable Speedometer/Odometer Module
Radio
Rear Anti-Lock Brakes Module
Remote Keyless Entry Module
Speed Control Servo/Amplifier Assembly
Speed Control/Horn Switch Assembly
Grounds (G200):
Air Bag Diagnostic Monitor
Anti-Theft Controller Module
Electronic Shift Control Module
Instrument Cluster
Radio
Rear Anti-Lock Brakes Module
Remote Keyless Entry Module
Speed Control/Horn Switch Assembly

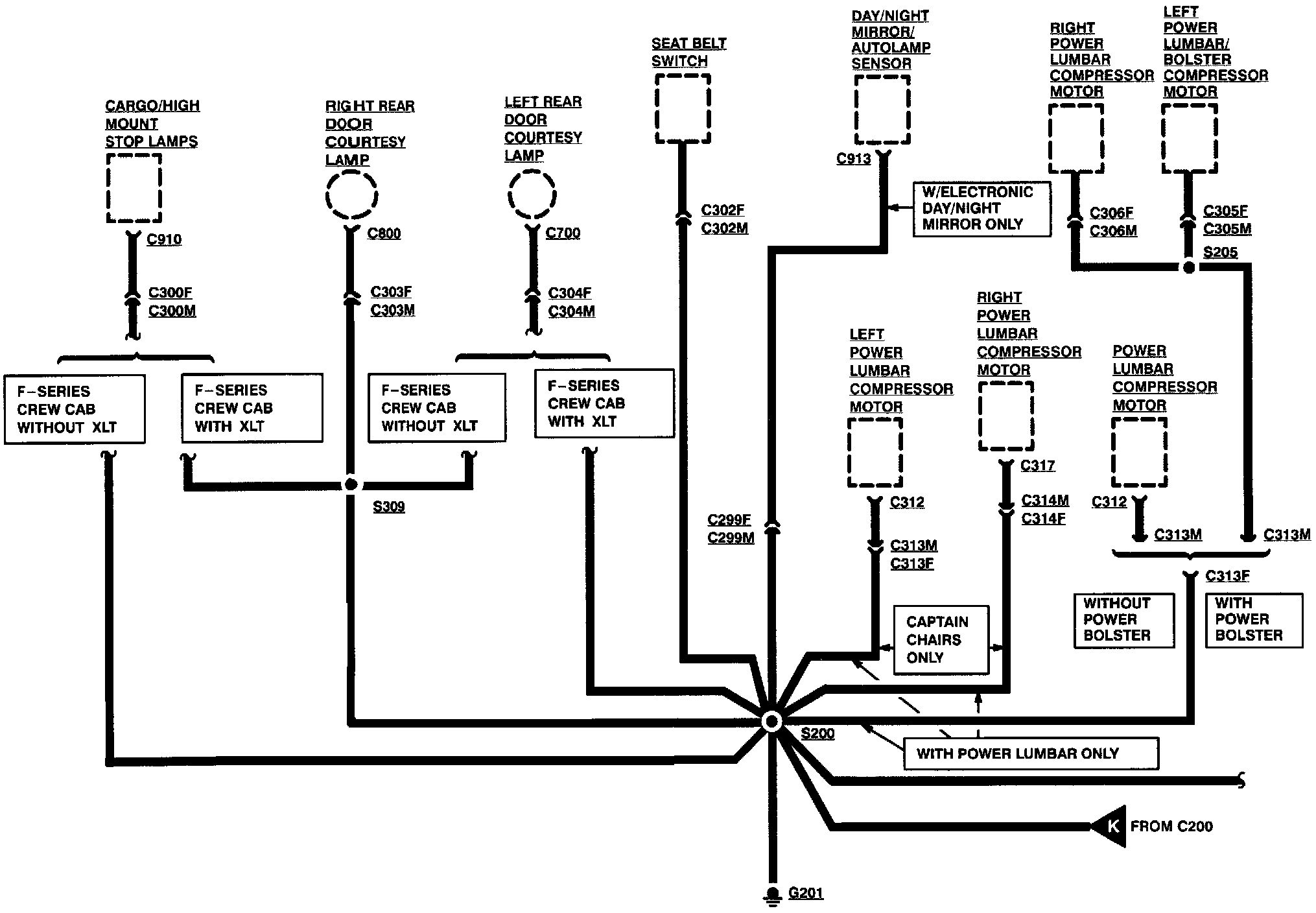

Grounds (G201):
Cargo/High Mount Stop Lamps
Day/Night/Mirror/Autolamp Sensor
Left Power Lumbar Compressor Motor
Left Power Lumbar/Bolster Compressor Motor
Left Rear Door Courtesy Lamp
Power Lumbar Compressor Motor
Right Power Lumbar Compressor Motor
Right Rear Door Courtesy Lamp
Seat Belt Switch

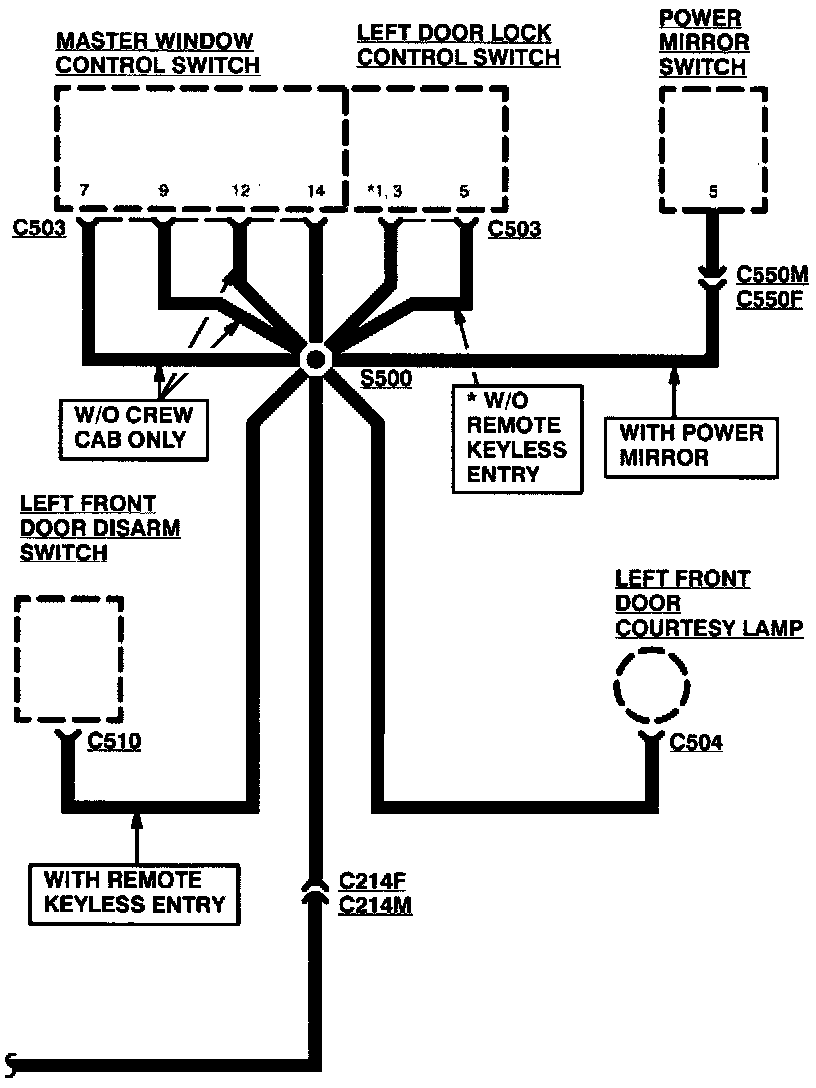

Grounds (G201):
Left Door Lock Control Switch
Left Front Door Courtesy Lamp
Left Front Door Disarm Switch
Master Window Control Switch
Power Mirror Switch
Grounds (G401) (Dual Rear Wheel):
Left Side Body Marker Lamps
Rear Body Marker Lamps
Right Side Marker Lamps
Grounds (G201):
Blower Motor Resistor
Electronic Shift Control Module
Glove Compartment Lamp
Right Door Lock Control Switch
Right Front Door Courtesy Lamp
Right Front Door Disarm Switch
Wiper Control Module
Grounds (G201):
Ashtray Illumination
Auxiliary Power Socket
Blower Motor Switch
Cigar Lighter
Fuel Tank Selector Switch
Radio
Remote Keyless Entry Module
Grounds (G201):
Diesel Warning Lamps Display
Electronic Shift Control Switch
Fog Lamps Switch
Ignition Switch
Instrument Cluster Heater Control Illumination
Shift Lock Actuator
Shift Lock Resistor
Warning Chime Module
