Function Selector Switch
Function Selector Switch

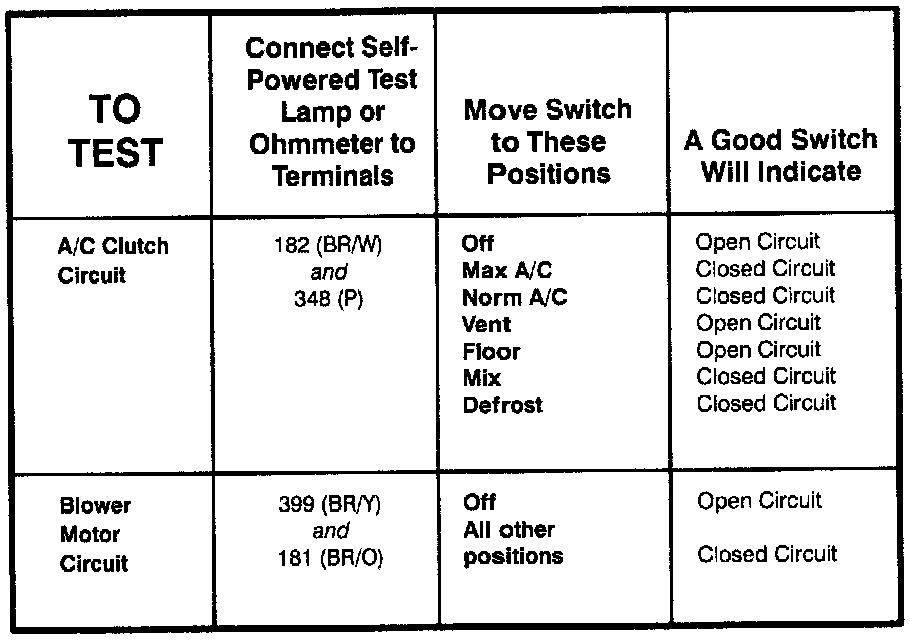

A/C Function Selector Switch - Component Testing Procedure:

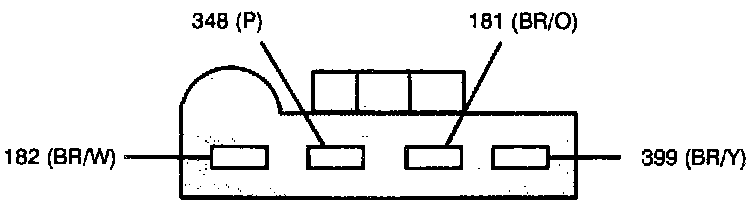

A/C Function Selector Switch - Terminal Location:

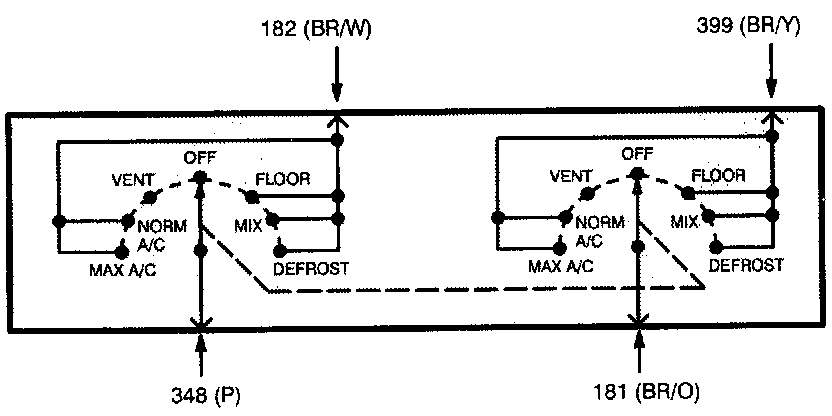

A/C Function Selector Switch - Schematic:
