Data Link Connector: Locations

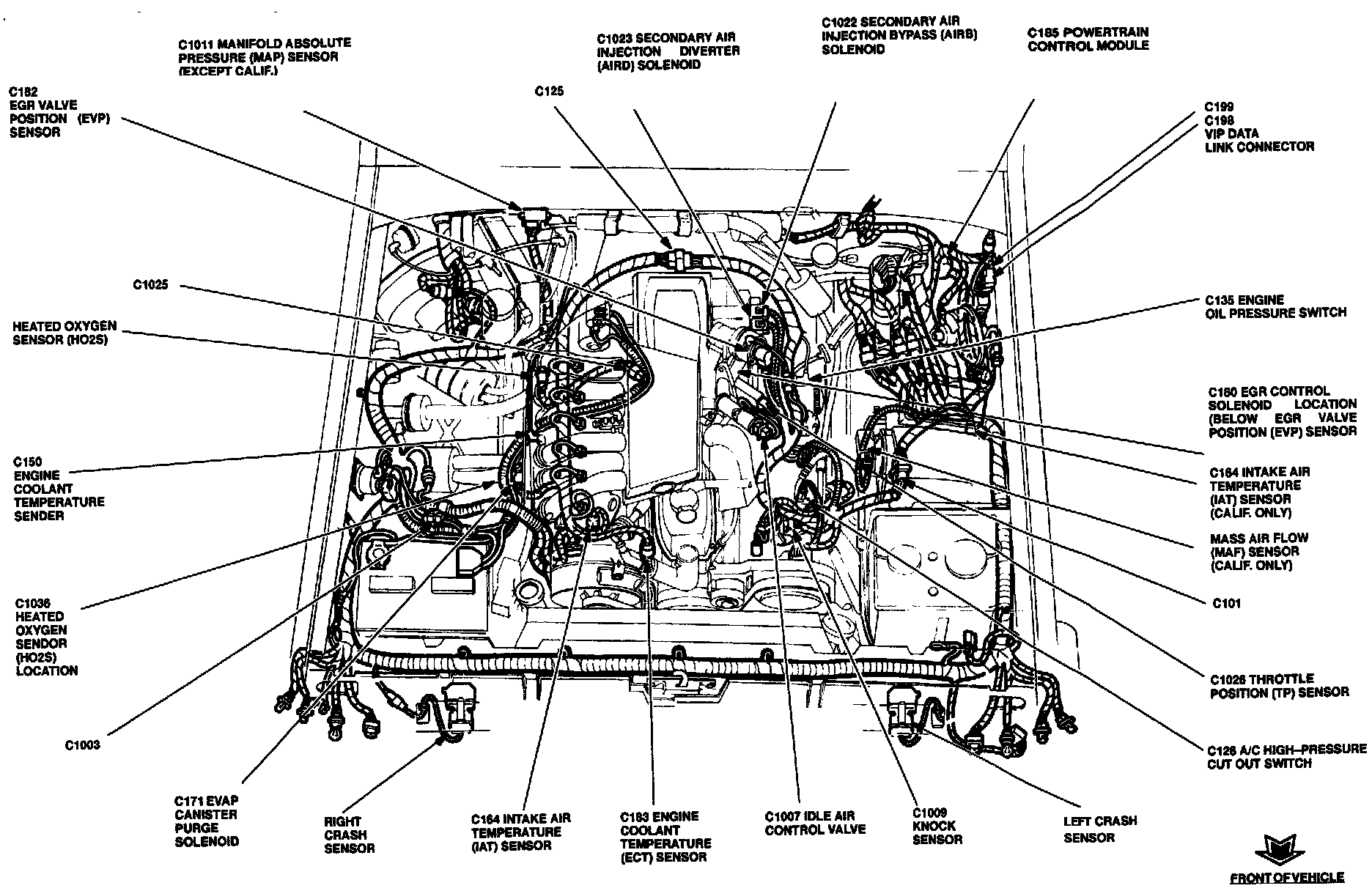

Engine View:





The VIP Data Link Connector (C198, C199) is located at the LH rear of engine compartment, on bracket.
