California Emission Vehicle

FUEL PUMP
FUEL TANK SELECTOR SWITCH
FUEL GAUGE SENDER

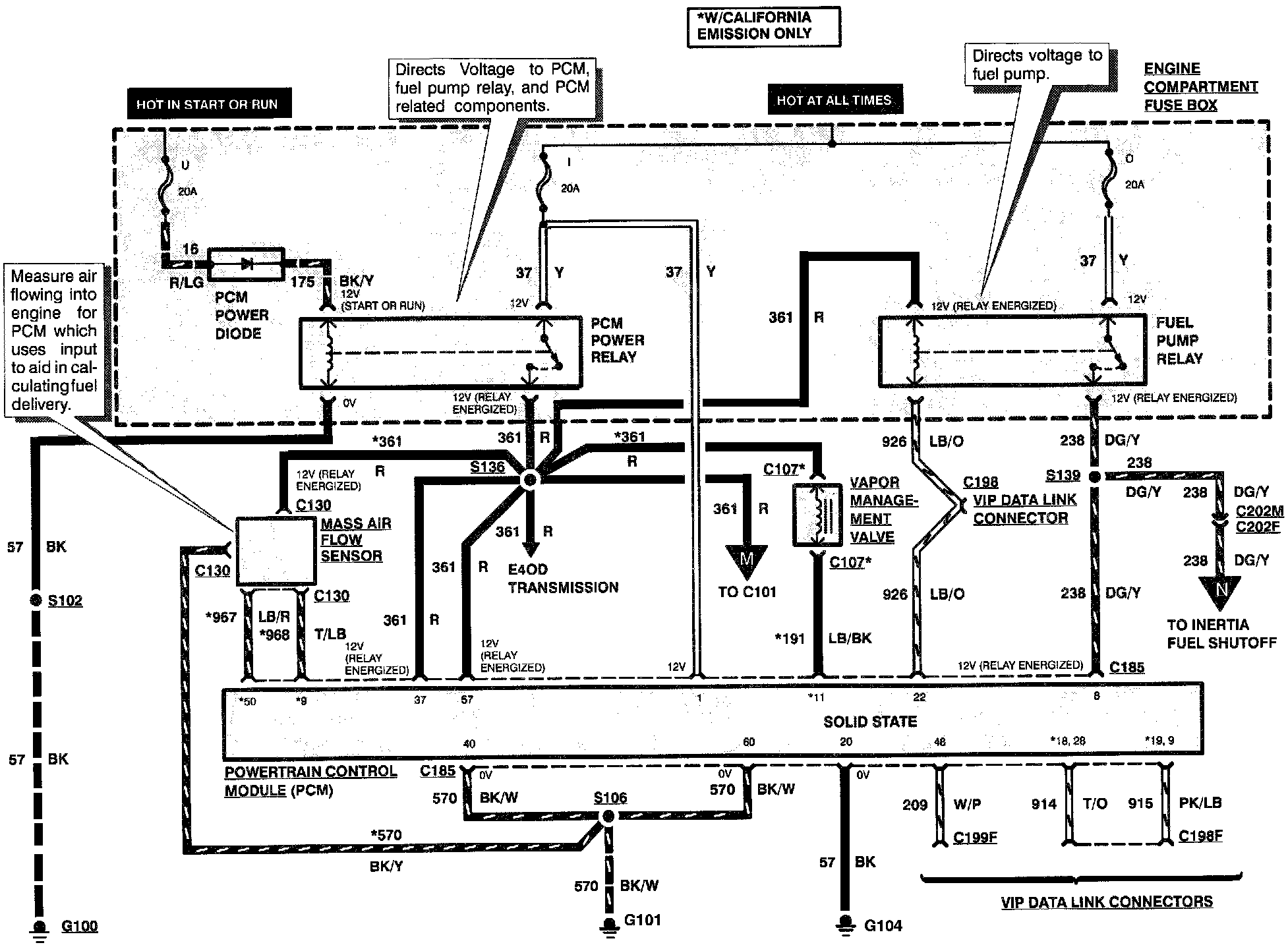

Engine Controls:

FUEL PUMP RELAY
MASS AIR FLOW SENSOR
PCM POWER DIODE
PCM POWER RELAY
VAPOR MANAGEMENT VALVE

Engine Controls:

FUEL INJECTORS
IDLE AIR CONTROL VALVE
SECONDARY AIR INJECTION DIVERTER SOLENOID

Engine Controls:

EGR CONTROL SOLENOID
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
THROTTLE POSITION SENSOR

Engine Controls:

HEATED OXYGEN SENSOR
INTAKE AIR TEMPERATURE SENSOR
MANIFOLD ABSOLUTE PRESSURE SENSOR

Engine Controls:

CLUTCH PEDAL POSITION SWITCH
CLUTCH PEDAL POSITION SWITCH JUMPER
MALFUNCTION INDICATOR LAMP

Engine Controls:

HEATED OXYGEN SENSOR

Engine Controls:

INERTIA FUEL SHUTOFF
