Engine Views

Engine View:

DISTRIBUTOR
EGR CONTROL SOLENOID
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
EVAP CANISTER PURGE SOLENOID
FUEL INJECTORS
HEATED OXYGEN SENSOR
IGNITION COIL
IDLE AIR CONTROL VALVE
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR
MANIFOLD ABSOLUTE PRESSURE SENSOR
POWER STEERING PRESSURE SWITCH
POWERTRAIN CONTROL MODULE
RADIO CAPACITOR
SECONDARY AIR INJECTION BYPASS SOLENOID (ROUND)
SECONDARY AIR INJECTION DIVERTER SOLENOID (SQUARE)
SPOUT CHECK CONNECTOR
STARTER MOTOR
STARTER RELAY
STARTER SOLENOID
THROTTLE POSITION SENSOR
VIP DATA LINK CONNECTOR

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
A/C HIGH PRESSURE CUT OUT SWITCH
BLOWER MOTOR
BLOWER MOTOR RESISTOR
BRAKE FLUID LEVEL SWITCH
BRAKE PRESSURE SWITCH
BRAKE WARNING RESISTOR/DIODE ASSEMBLY
DAYTIME RUNNING LAMPS MODULE (WITH DRL)
DAYTIME RUNNING LAMPS MODULE JUMPER (WITHOUT DRL)
ENGINE COMPARTMENT FUSE BOX (TRAILER RELAY BOX INSIDE)
ENGINE COMPARTMENT LAMP
ENGINE OIL PRESSURE SWITCH
GENERATOR/VOLTAGE REGULATOR
HIGH PITCH HORN
IGNITION SUPPRESSION RESISTOR AND A/C CLUTCH RESISTOR DIODE
LEFT CRASH SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER LAMP
LEFT HEADLAMP
LOW PITCH HORN
RIGHT CRASH SENSOR
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMPS
RIGHT HEADLAMP
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR

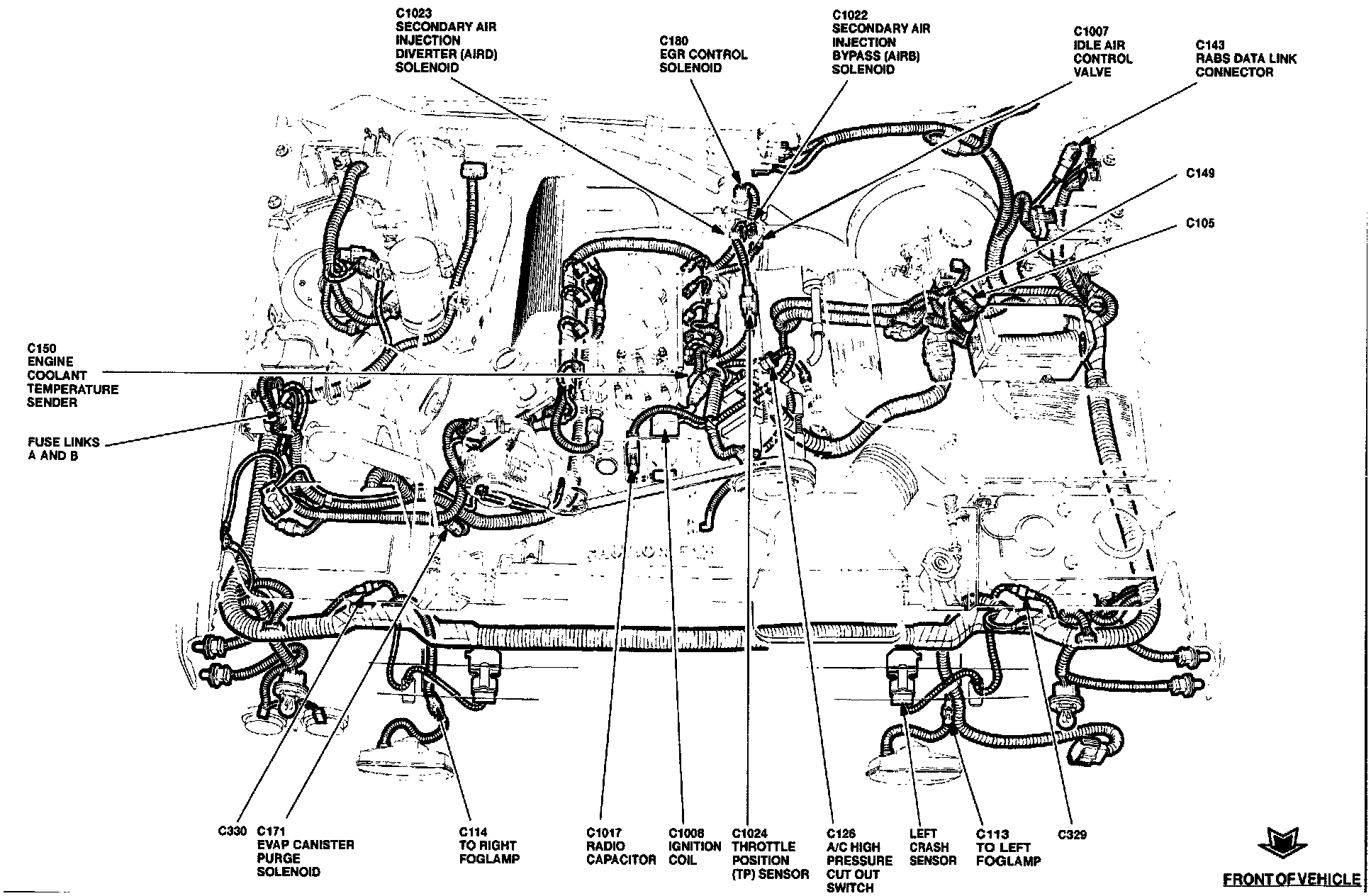

Engine View:

A/C HIGH PRESSURE CUT OUT SWITCH
EGR CONTROL SOLENOID
ENGINE COOLANT TEMPERATURE SENDER
EVAP CANISTER PURGE SOLENOID
FUSE LINKS A & B
IDLE AIR CONTROL VALVE
IGNITION COIL
LEFT CRASH SENSOR
LEFT FOGLAMP
RADIO CAPACITOR
RIGHT FOGLAMP
SECONDARY AIR INJECTION BYPASS SOLENOID
SECONDARY AIR INJECTION DIVERTER SOLENOID
THROTTLE POSITION SENSOR
