Engine Views

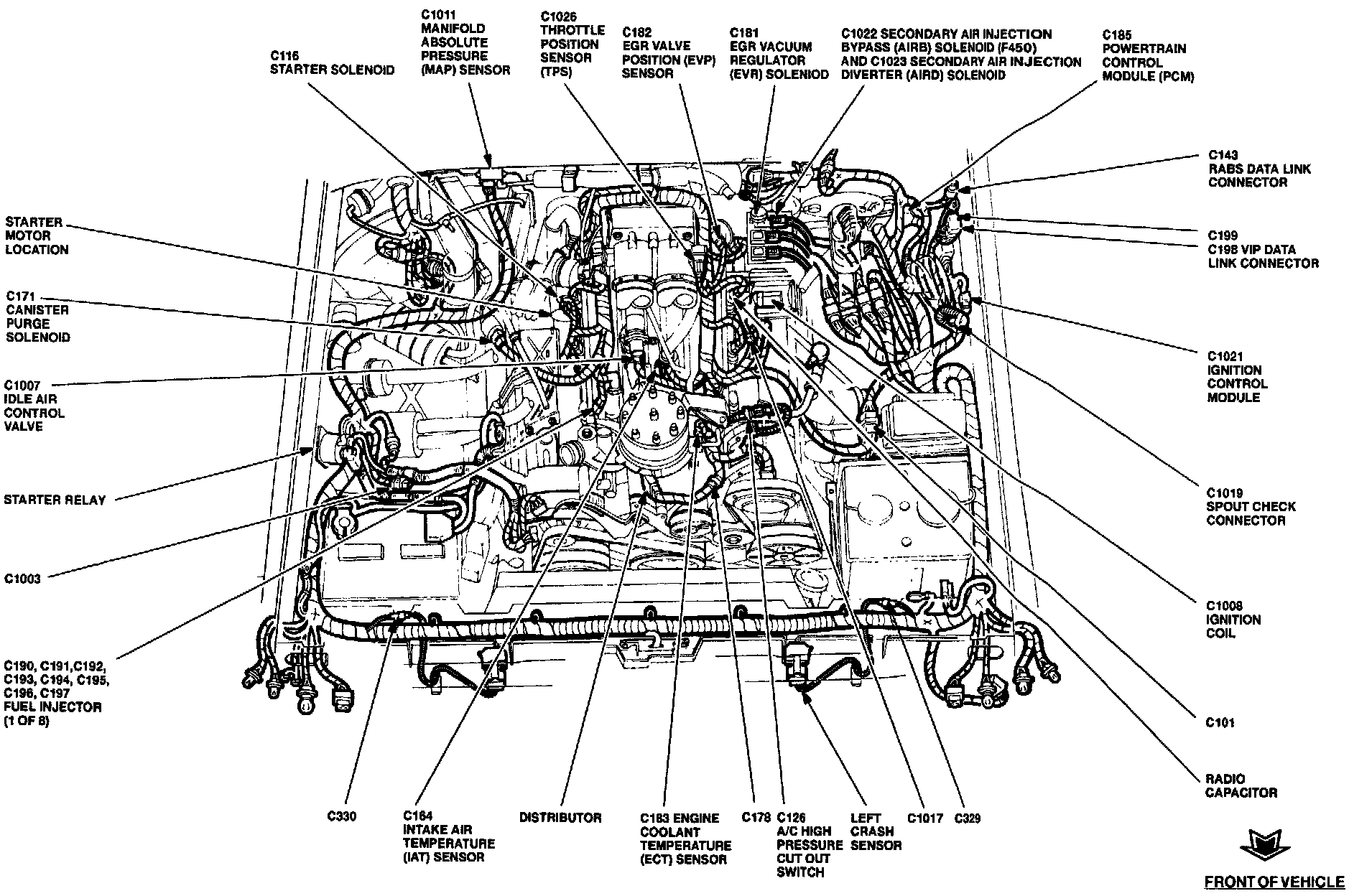

Engine View:

A/C HIGH PRESSURE CUT OUT SWITCH
CANISTER PURGE SOLENOID
DISTRIBUTOR
EGR VACUUM REGULATOR SOLENOID
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTOR
IDLE AIR CONTROL VALVE
IGNITION COIL
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR
LEFT CRASH SENSOR
MANIFOLD ABSOLUTE PRESSURE SENSOR
POWERTRAIN CONTROL MODULE
RADIO CAPACITOR
SECONDARY AIR INJECTION BYPASS SOLENOID
SECONDARY AIR INJECTION DIVERTER SOLENOID
SPOUT CHECK CONNECTOR
STARTER MOTOR
STARTER RELAY
STARTER SOLENOID
THROTTLE POSITION SENSOR
VIP DATA LINK CONNECTOR

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
BLOWER MOTOR
BLOWER MOTOR RESISTOR
BRAKE FLUID LEVEL SWITCH
BRAKE WARNING RESISTOR/DIODE ASSEMBLY
COOLANT TEMPERATURE SENDER
DAYTIME RUNNING LAMPS JUMPER (WITHOUT DRL)
DAYTIME RUNNING LAMPS MODULE (WITH DRL)
ENGINE COMPARTMENT FUSE BOX (TRAILER RELAY BOX INSIDE)
ENGINE COMPARTMENT LAMP
FUSE LINK J
FUSE LINKS A & B
GENERATOR/VOLTAGE REGULATOR
HIGH PITCH HORN
IGNITION SUPPRESSION RESISTOR AND A/C CLUTCH RESISTOR DIODE
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SIDE MARKER LAMPS
LEFT HEADLAMP
LOW PITCH HORN
OIL PRESSURE SWITCH
RIGHT CRASH SENSOR
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMPS
RIGHT HEADLAMP
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR
