Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
F 350 2WD Pickup V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Connector Views
Connector Views

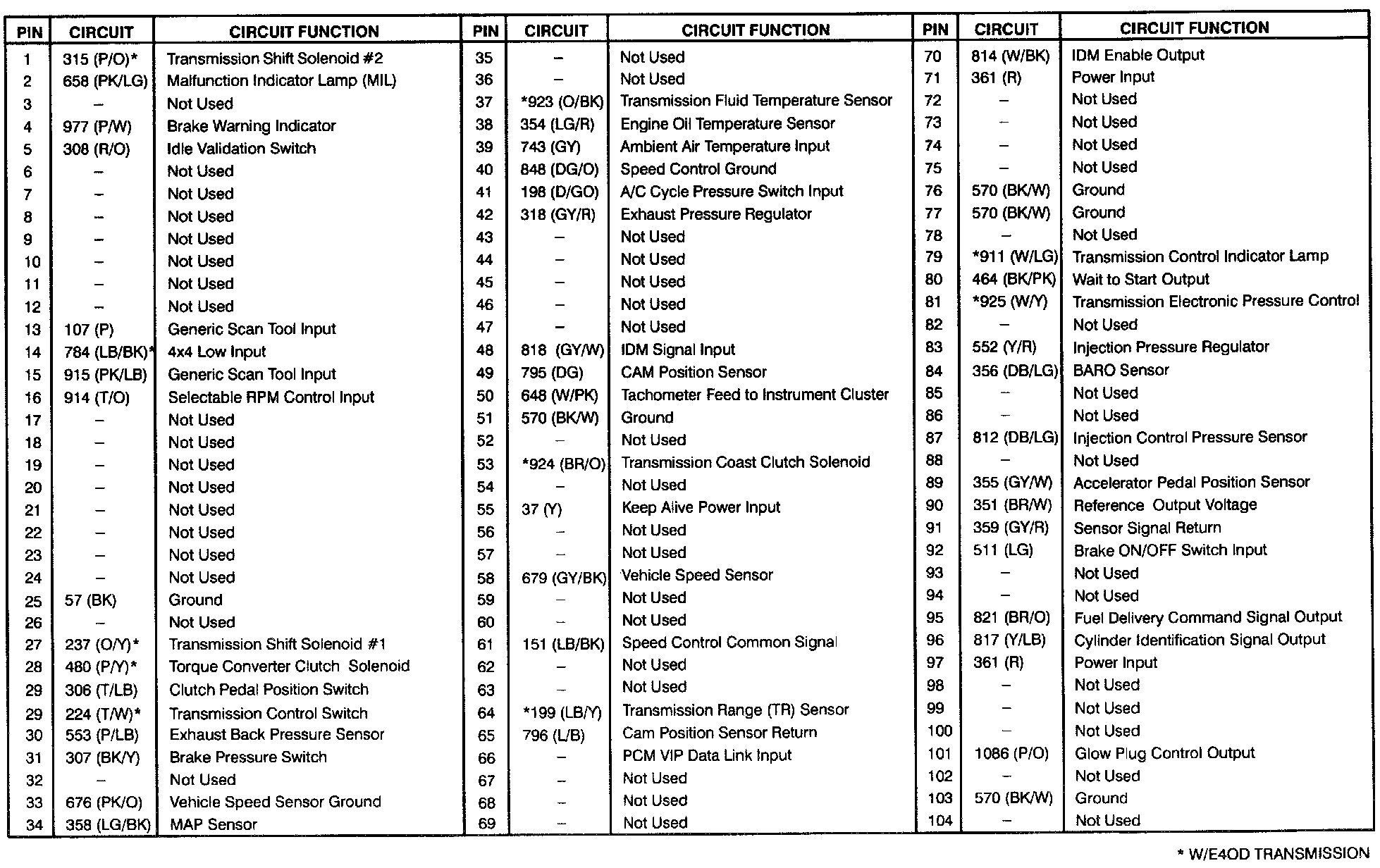

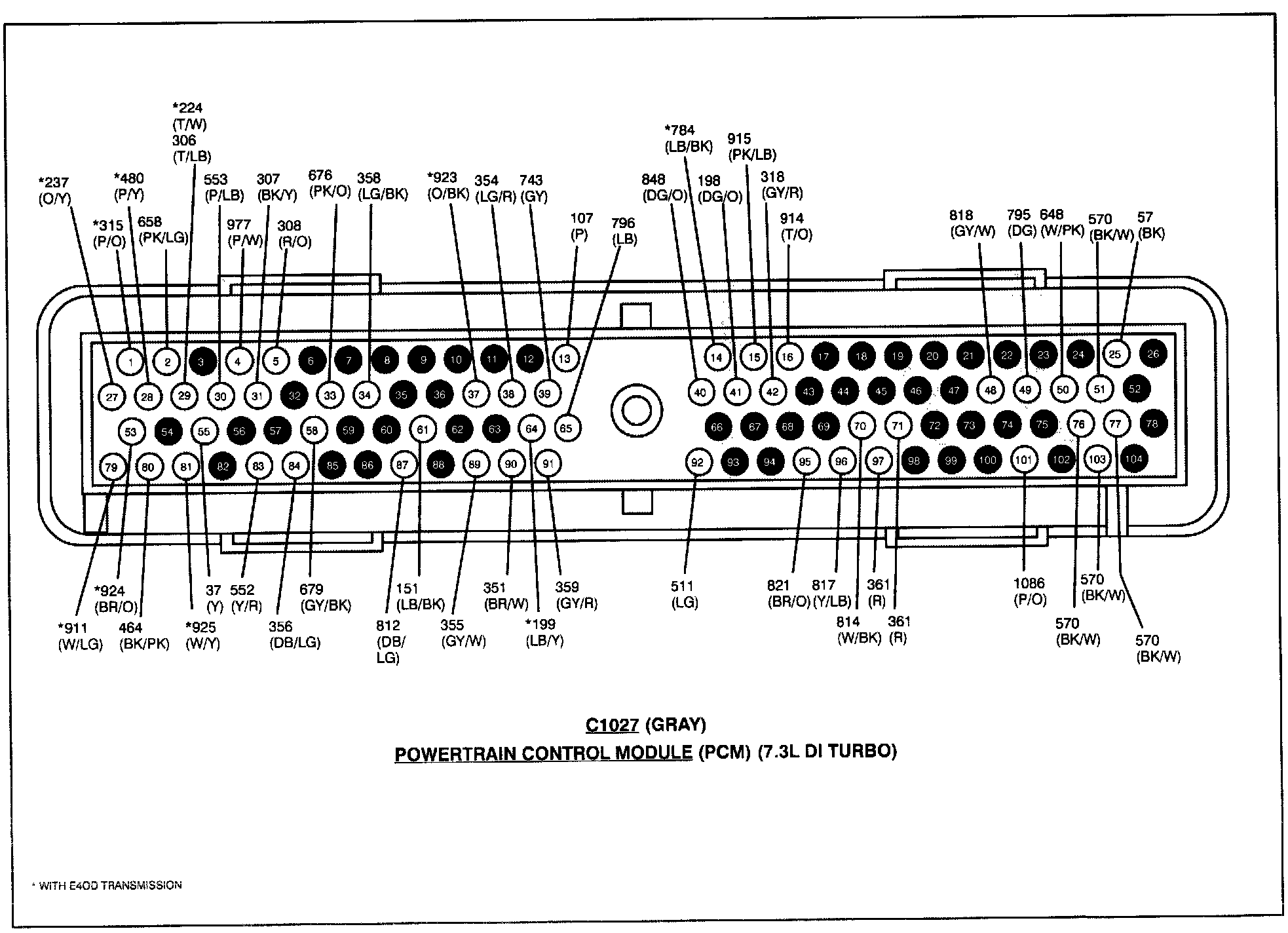

Powertrain Control Module (PCM) (Part1 Of 2):
Powertrain Control Module (PCM) (Part2 Of 2):
