Power and Ground Distribution
>>
System Diagram
>>
Ground Diagrams (By Ground Number)
>>
G103
G103

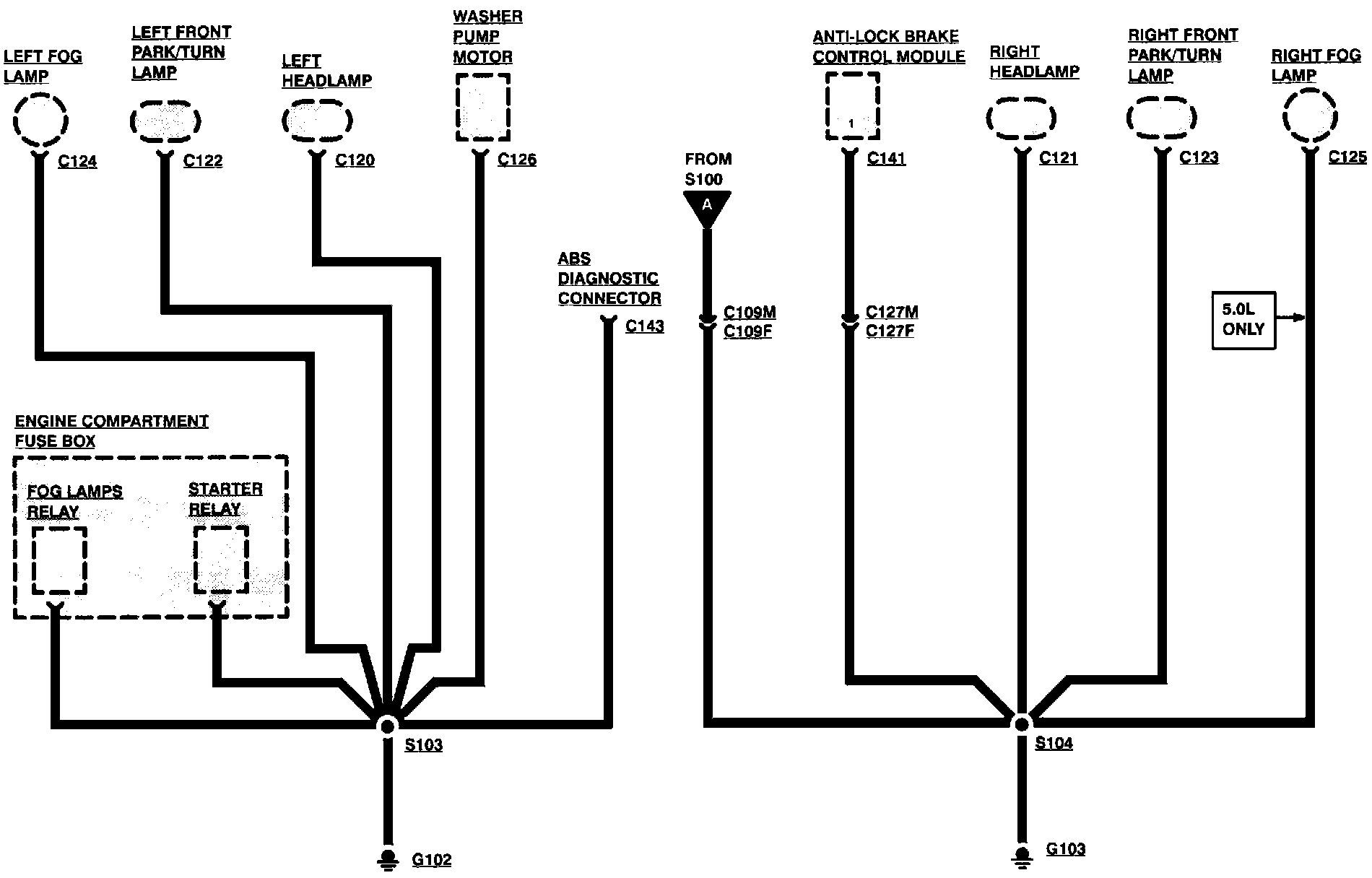

Grounds (G102, G103):
