Probe L4-121 2.0L DOHC VIN A MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Clutch Switch
>>
Diagrams
>>
Connector Views
Connector Views

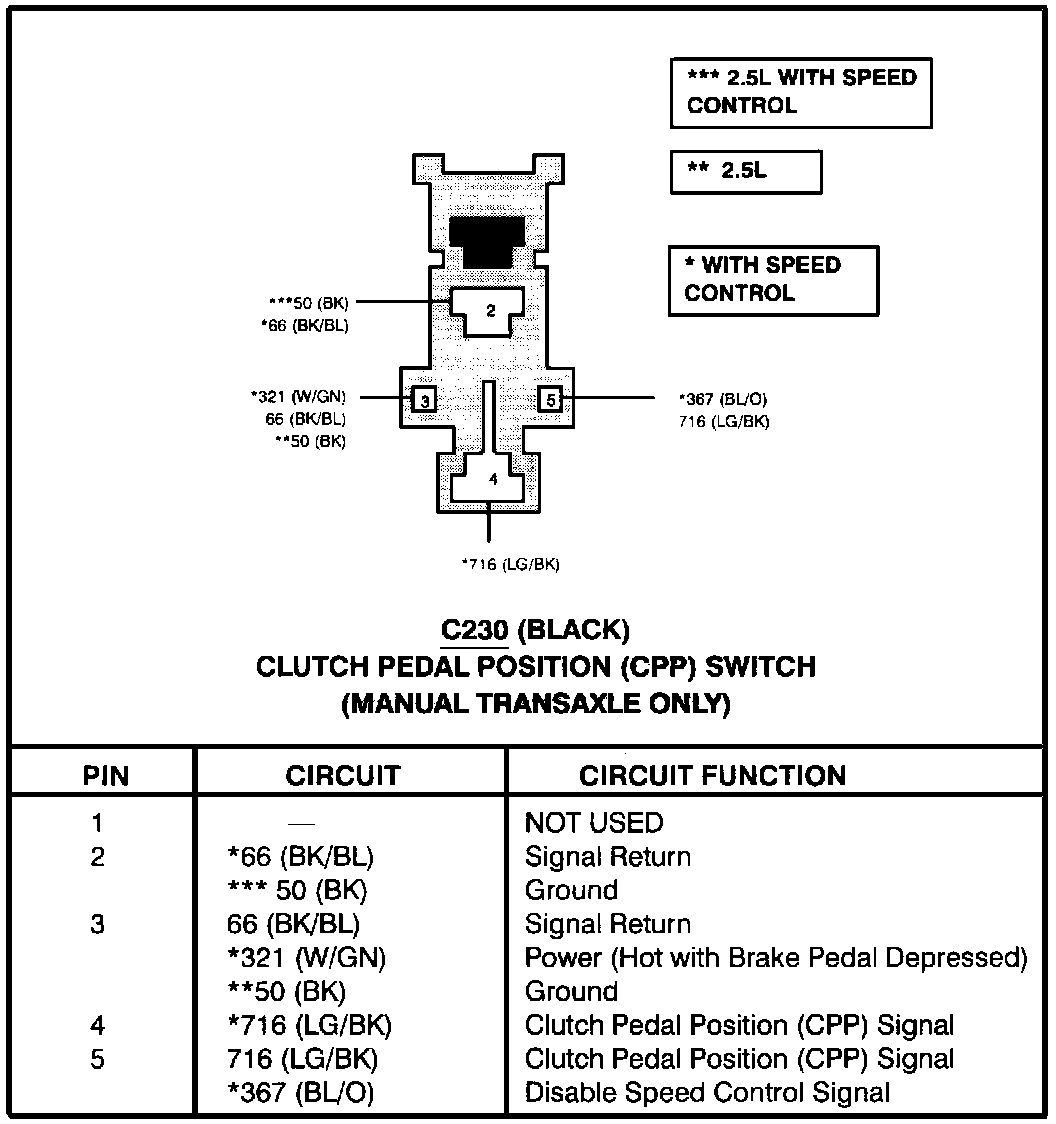

Clutch Pedal Position Switch (Manual Transaxle Only):
