Installation

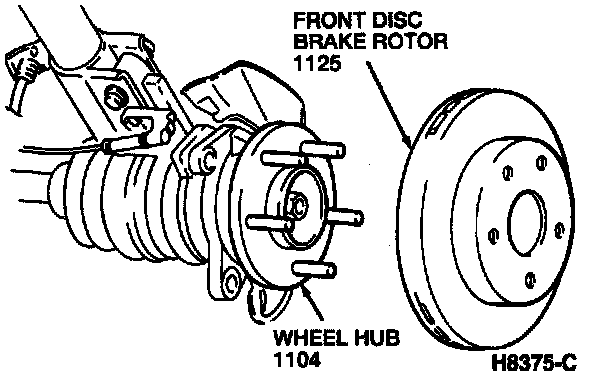

Front Disc Brake Rotor:
1.
Position the front disc brake rotor on the wheel hub.
2.
Carefully position the front disc brake caliper over the front disc brake rotor.
3.
Install the front disc brake caliper anchor plate bolts and tighten to
78-102 N.m (58-74 lb-ft).
4.
Install the wheel and tire assembly. Tighten the lug nuts to
88-118 N.m (65-87 lb-ft).
5.
Lower the vehicle.
