Engine Views

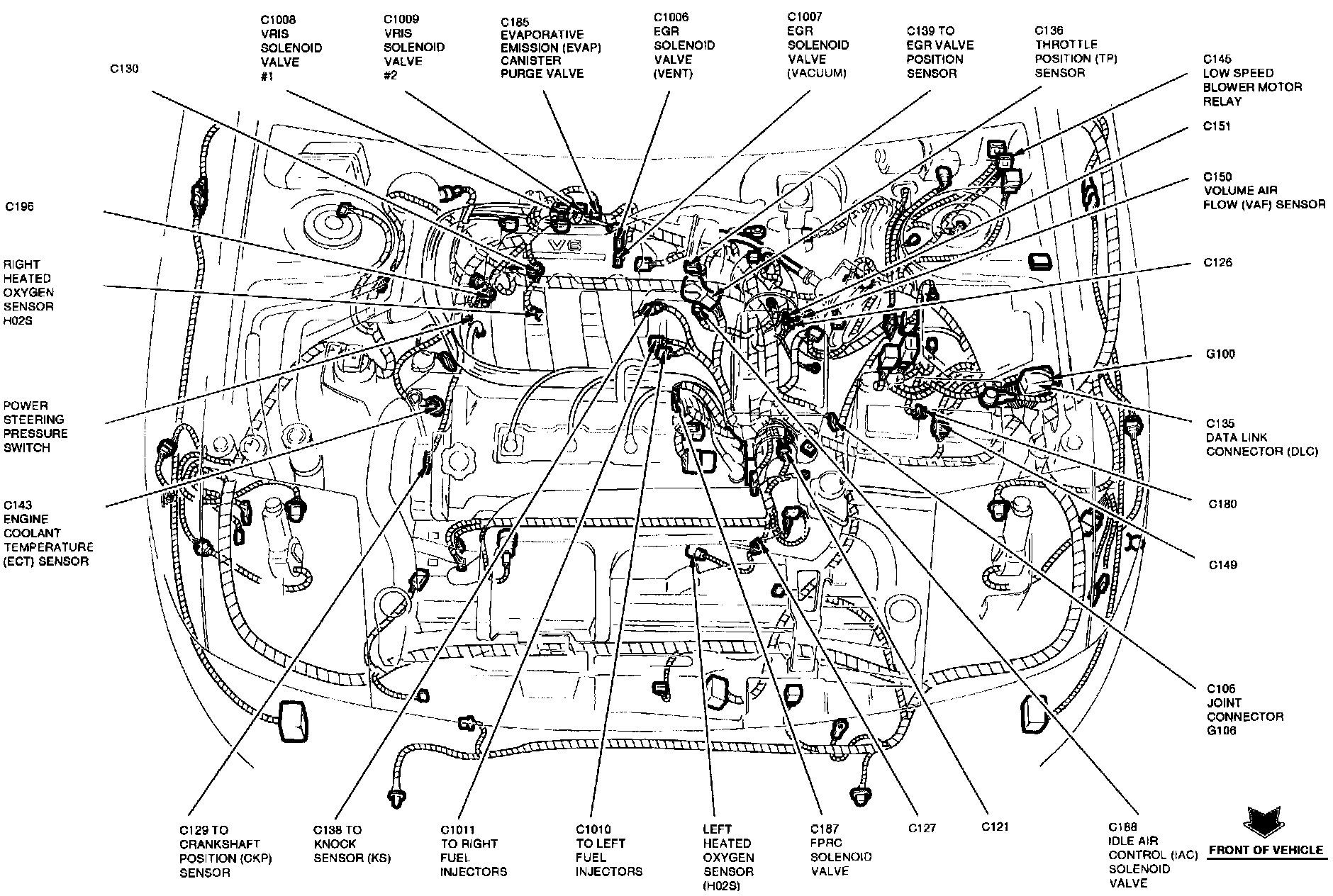

Engine View:

CRANKSHAFT POSITION SENSOR
DATA LINK CONNECTOR
EGR SOLENOID VALVE (VACUUM)
EGR SOLENOID VALVE (VENT)
EGR VALVE POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FEEDBACK PRESSURE REGULATOR CONTROL SOLENOID VALVE
IDLE AIR CONTROL SOLENOID VALVE
JOINT CONNECTOR
KNOCK SENSOR
LEFT FUEL INJECTORS
LEFT HEATED OXYGEN SENSOR
LOW SPEED BLOWER MOTOR RELAY
POWER STEERING PRESSURE SWITCH
RIGHT FUEL INJECTORS
RIGHT HEATED OXYGEN SENSOR
THROTTLE POSITION SENSOR
VOLUME AIR FLOW SENSOR
VARIABLE RESONANCE INDUCTION SYSTEM SOLENOID VALVE #1
VARIABLE RESONANCE INDUCTION SYSTEM SOLENOID VALVE #2

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
A/C CLUTCH THERMAL PROTECTION SWITCH
A/C HIGH PRESSURE CUTOUT/FAN SWITCH
A/C RELAY
CONDENSER FAN MOTOR
DAYTIME RUNNING LAMPS RELAY
DISTRIBUTOR
ELECTRIC COOLING FAN MOTOR
ENGINE COMPARTMENT FUSE BOX
FOG LAMP RELAY
FUEL PUMP RELAY
GENERATOR
HEADLAMP RELAY
HEADLAMP RETRACTOR TEST CONNECTOR
HIGH SPEED CONDENSER FAN RELAY
HIGH SPEED COOLING FAN RELAY
HORN RELAY
JOINT CONNECTOR
LOW SPEED CONDENSER FAN RELAY
LOW SPEED COOLING FAN RELAY
PARK LAMP RELAY
PARK/NEUTRAL POSITION SWITCH
PCM POWER RELAY
PULSE SIGNAL GENERATOR
STARTER INTERRUPT RELAY
STARTER MOTOR/SOLENOID
TRANSAXLE CONTROL SOLENOID VALVE

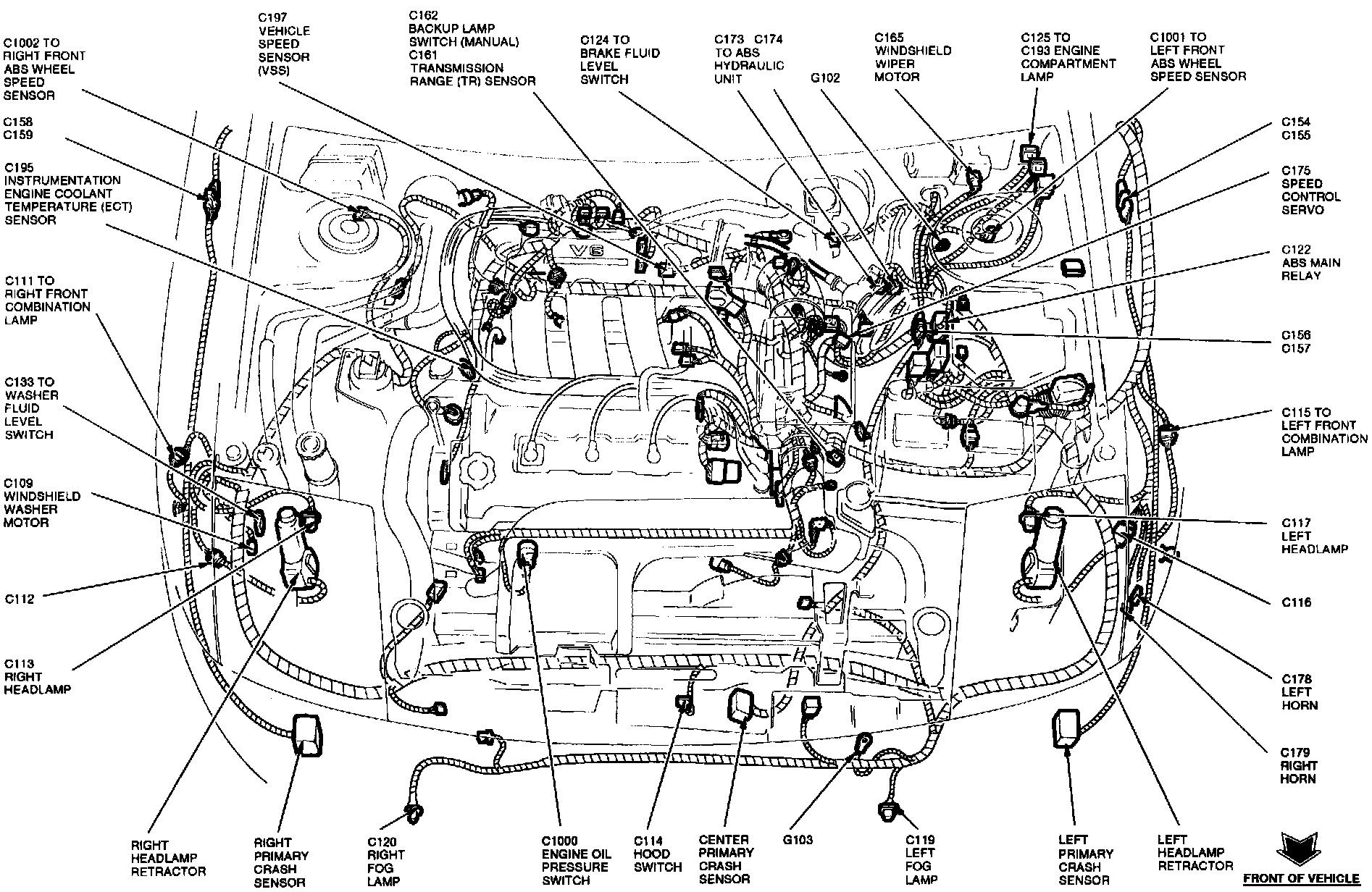

Engine View:

ANTI-LOCK BRAKE SYSTEM HYDRAULIC UNIT
ANTI-LOCK BRAKE SYSTEM MAIN RELAY
BACKUP LAMP SWITCH
BRAKE FLUID LEVEL SWITCH
CENTER PRIMARY CRASH SENSOR
ENGINE COMPARTMENT LAMP
ENGINE OIL PRESSURE SWITCH
HOOD SWITCH
INSTRUMENTATION ENGINE COOLANT TEMPERATURE SENSOR
LEFT FOG LAMP
LEFT FRONT ANTI-LOCK BRAKE SYSTEM WHEEL SPEED SENSOR
LEFT FRONT COMBINATION LAMP
LEFT HEADLAMP
LEFT HEADLAMP RETRACTOR
LEFT HORN
LEFT PRIMARY CRASH SENSOR
RIGHT FOG LAMP
RIGHT FRONT ANTI-LOCK BRAKE SYSTEM WHEEL SPEED SENSOR
RIGHT FRONT COMBINATION LAMP
RIGHT HEADLAMP
RIGHT HEADLAMP RETRACTOR
RIGHT HORN
RIGHT PRIMARY CRASH SENSOR
SPEED CONTROL SERVO
TRANSMISSION RANGE SENSOR
VEHICLE SPEED SENSOR
WASHER FLUID LEVEL SWITCH
WINDSHIELD WASHER MOTOR
WINDSHIELD WIPER MOTOR
