Cruise Control Module: Diagrams

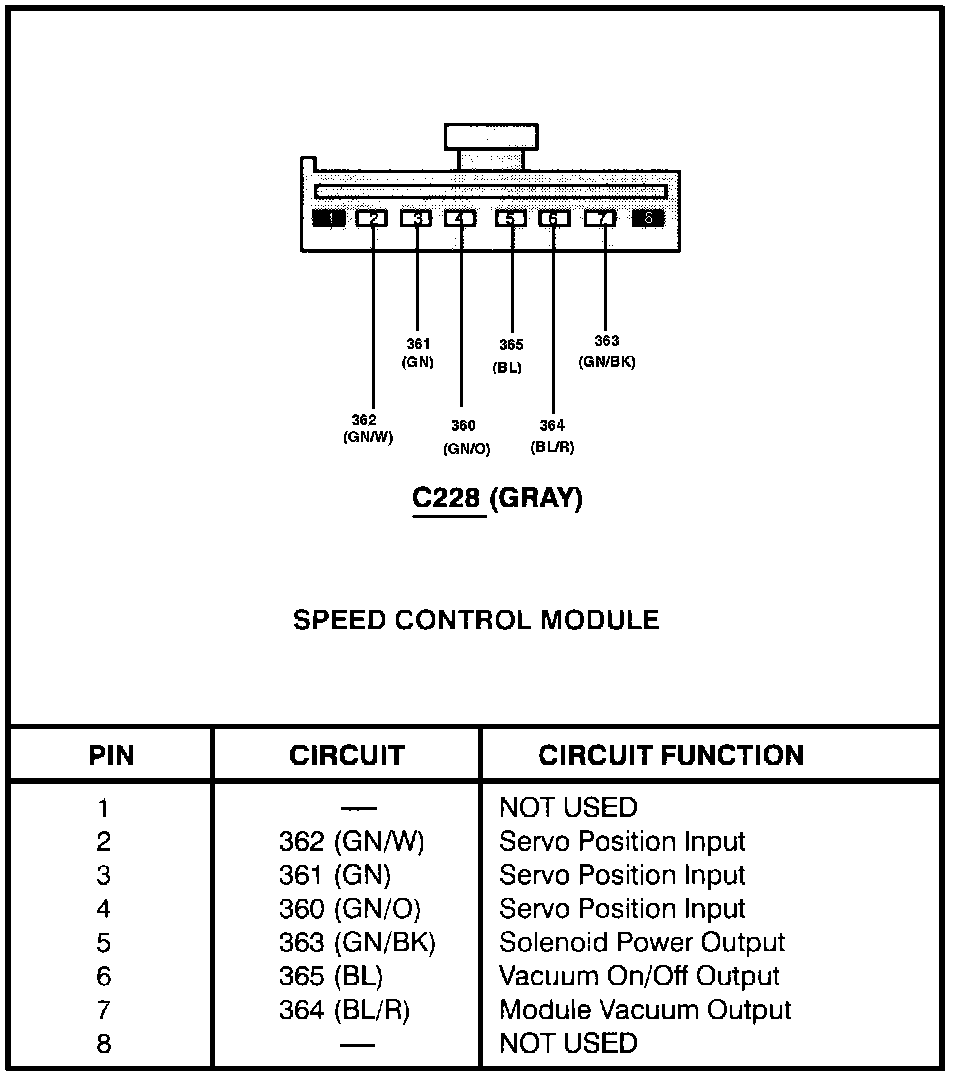

Speed Control Module (C228):

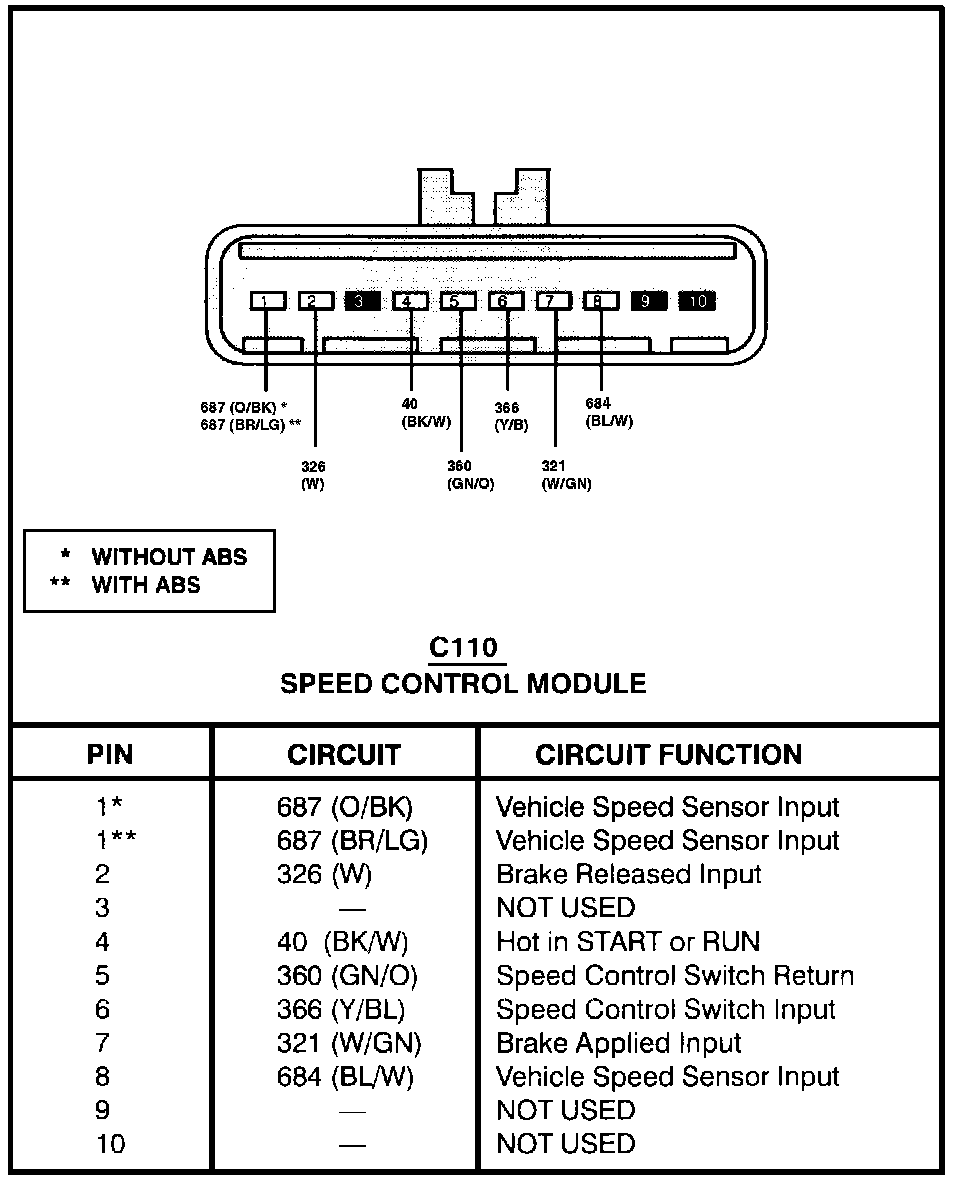

Speed Control Module (C110):

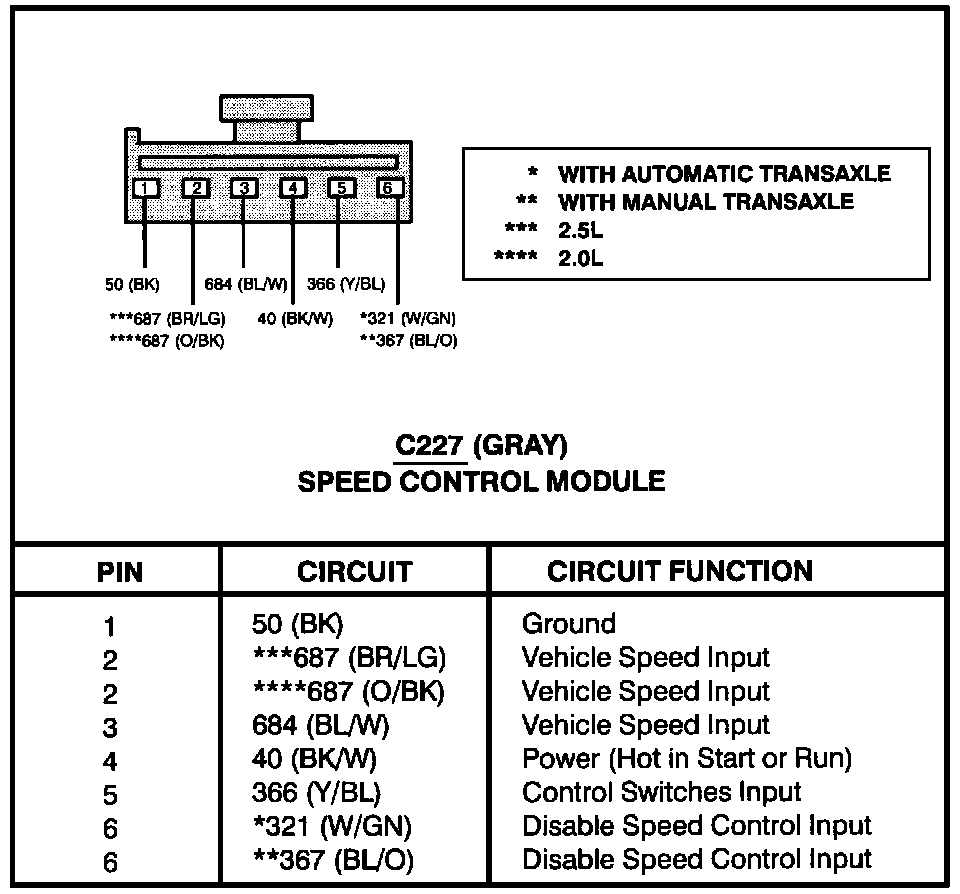

Speed Control Module (C227):
