Combination Switch - Slow to Cancel After Left Turns

Article No
95-9-4

05/08/95

SWITCH - COMBINATION SWITCH IS SLOW TO RETURN WHEN MAKING LEFT - HAND TURNS - VEHICLES BUILT 4/16/92 THROUGH 10/16/94

FORD:
1993-95 PROBE

ISSUE:
The turn signal lever/combination switch may be slow to return to center on some vehicles when making left-hand turns. This may be due to the upper side of the rubber boot on the turn signal lever sticking in the steering column.

ACTION:
Trim 15 mm (1/2") off the top of the rubber boot. This should reduce the possibility of the rubber boot sticking in the steering column cover. Refer to the following Service Procedure for details.

SERVICE PROCEDURE

1. Lower the turn signal lever

2. Pull out the upper side of the rubber boot from the steering column cover.

NOTE:
WHEN PULLING OUT THE RUBBER BOOT, DO NOT ROTATE THE BOOT.

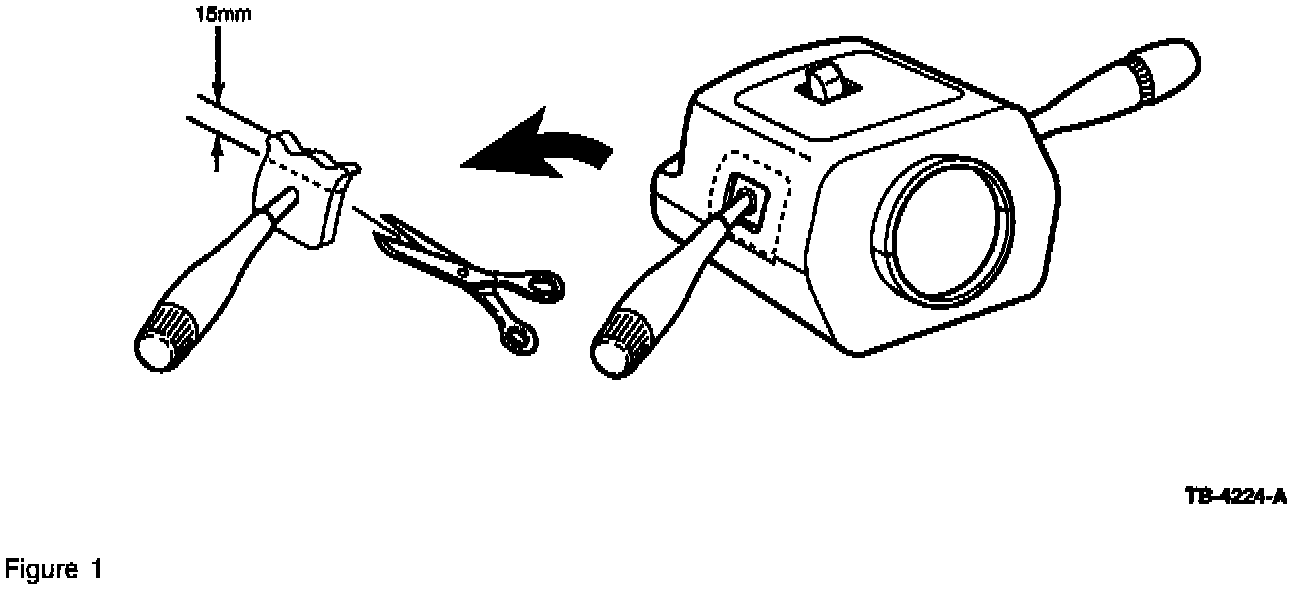

3. Cut 15 mm (1/2") off the top of the rubber boot. Refer to Figure 1.

4. Reinstall the rubber boot into the steering column cover.

5. Verify proper operation of the turn signal lever/combination switch.

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage

OPERATION DESCRIPTION TIME

950904A Trim Top Of Rubber Boot 0.2 Hr.

DEALER CODING
CONDITION
BASIC PART NO. CODE
13K359 41

OASIS CODES: 107000, 203000, 205000, 303000
