Generic Electronic Module

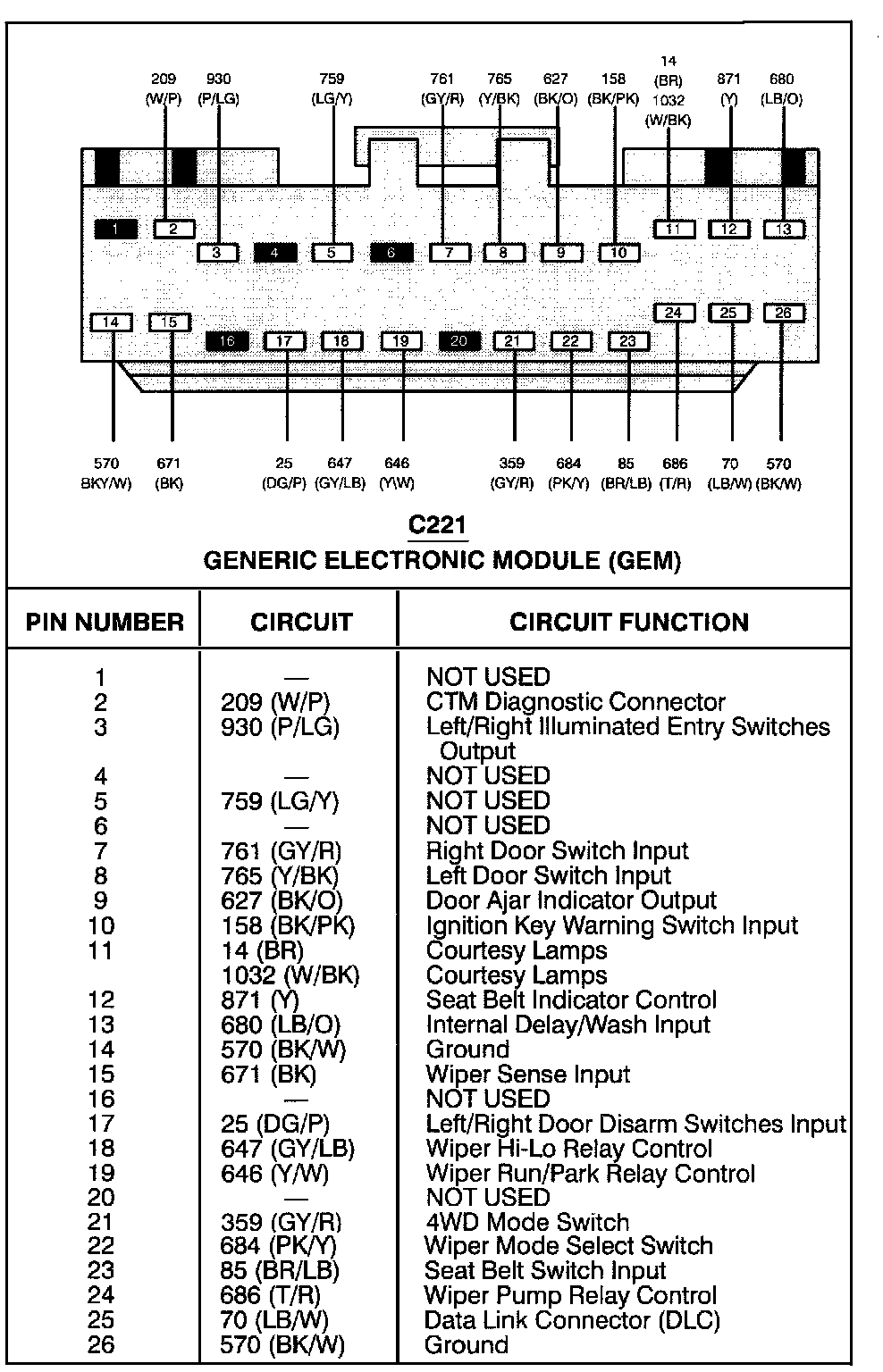

Generic Electronic Module (C221):

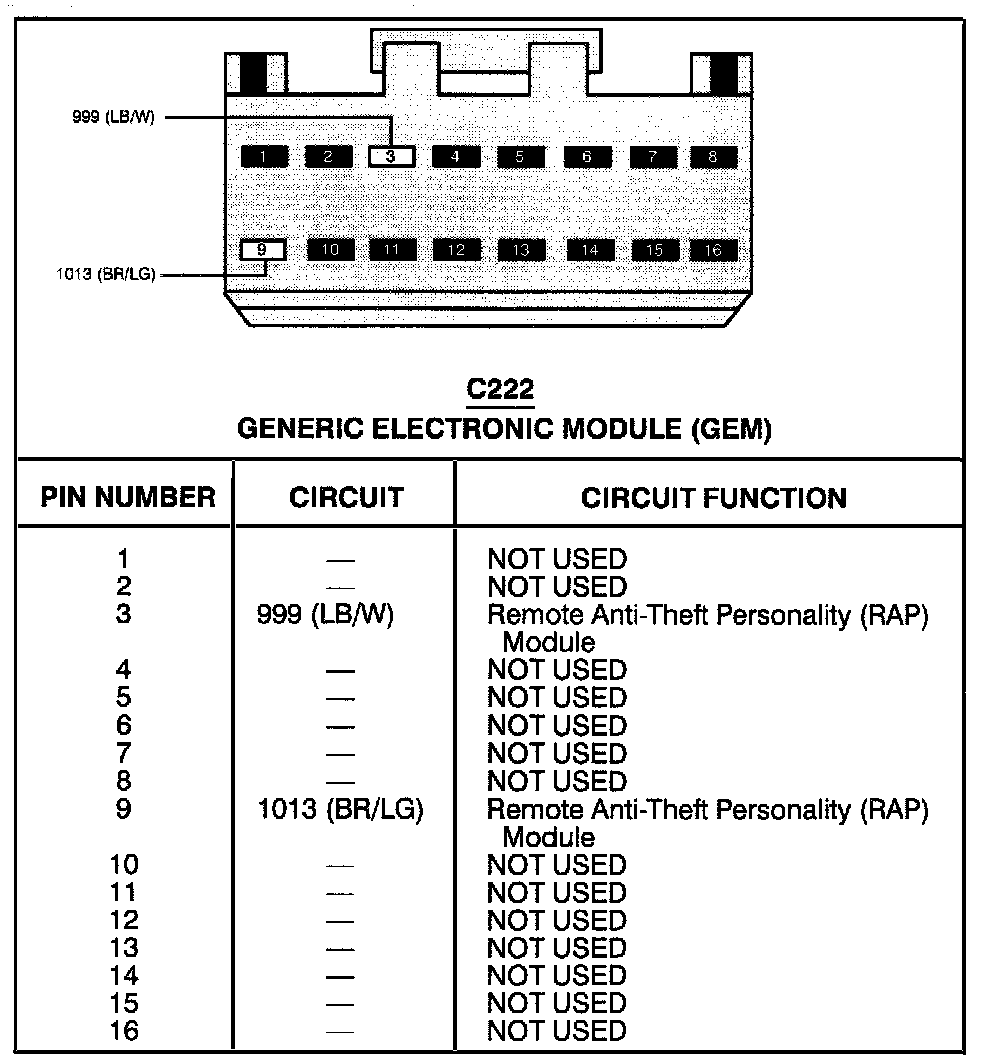

Generic Electronic Module (C222):

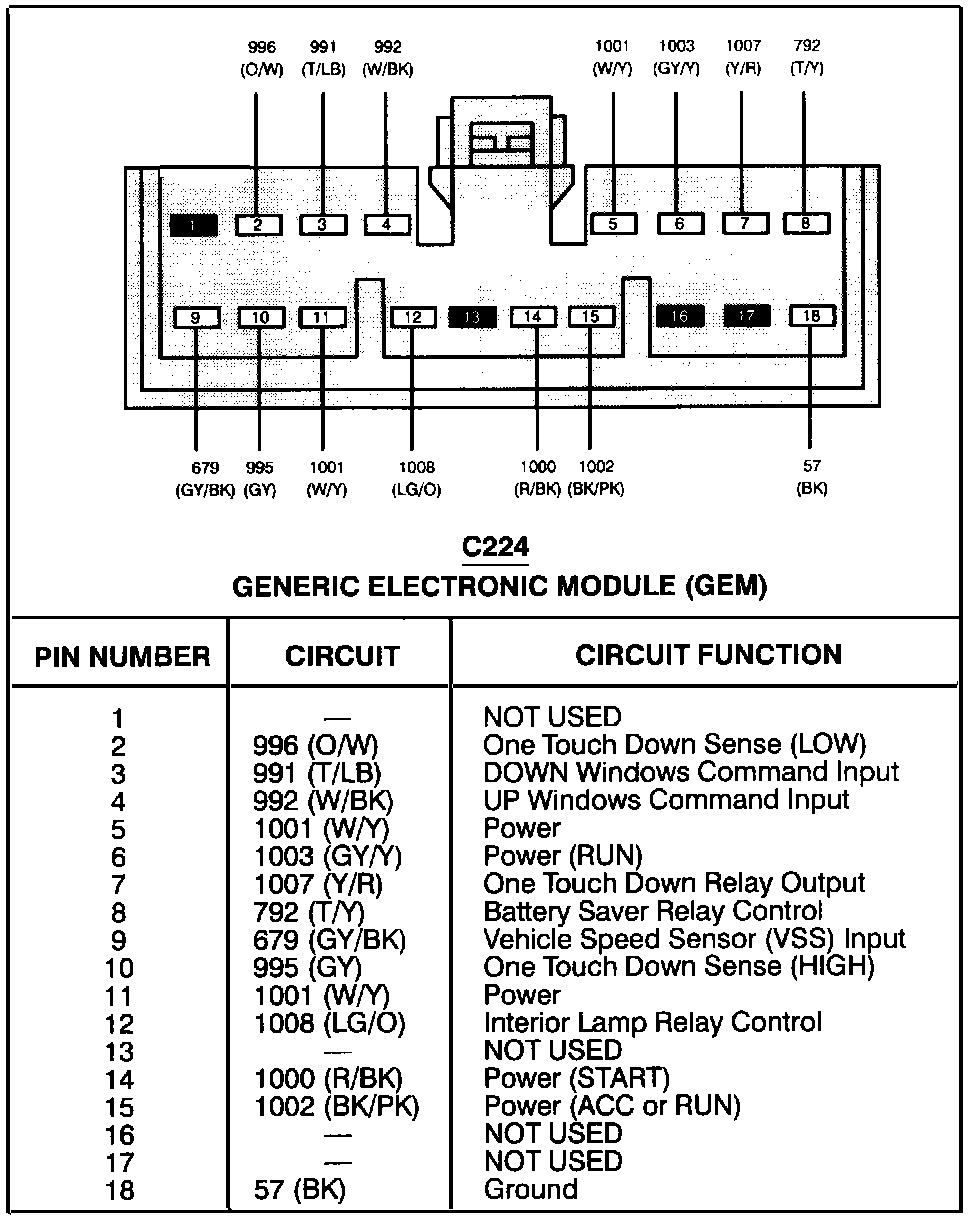

Generic Electronic Module (C224):
