Ranger 2WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

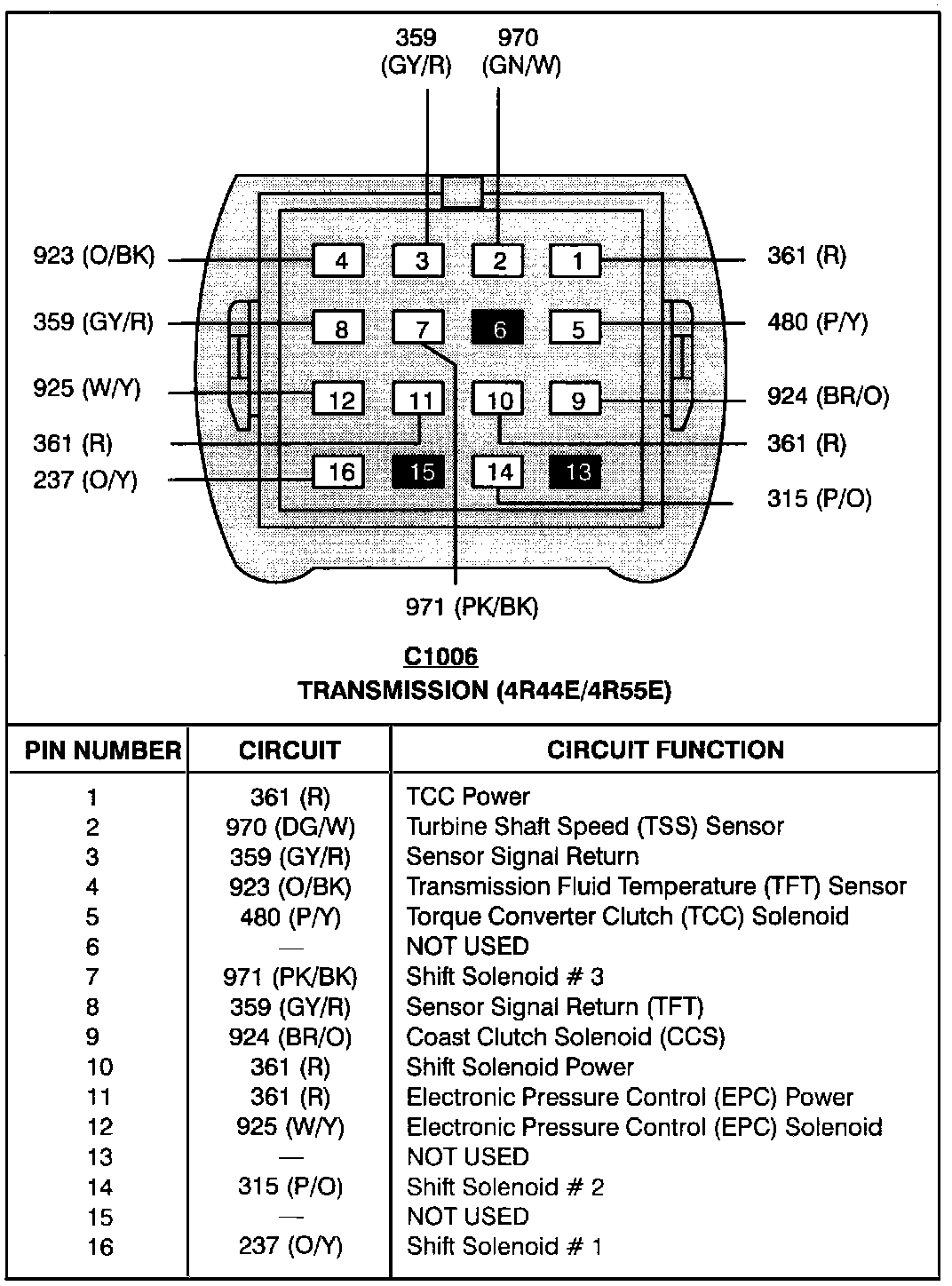

Transmission (4R44E/4R55E):
