Engine Views

Engine View:

4 WHEEL ANTI-LOCK BRAKE SYSTEM DIODE
4 WHEEL ANTI-LOCK BRAKE SYSTEM MAIN RELAY
4 WHEEL ANTI-LOCK BRAKE SYSTEM MODULE
4 WHEEL ANTI-LOCK BRAKE SYSTEM PUMP MOTOR RELAY
BLOWER MOTOR RELAY
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID
ENGINE COMPARTMENT FUSE/RELAY BOX
ENGINE OIL PRESSURE SWITCH
EVAPORATIVE EMISSIONS PURGE FLOW SENSOR
FUEL INJECTORS
FUEL PUMP RELAY
GENERATOR
HORN RELAY
MASS AIR FLOW SENSOR
PCM POWER DIODE
PCM POWER RELAY
POWER STEERING PRESSURE SWITCH
POWERTRAIN CONTROL MODULE
REAR ANTI-LOCK BRAKE SYSTEM DIODE
REAR ANTI-LOCK BRAKE SYSTEM RESISTOR
RELAY BOX #2
RELAY BOX #3
STARTER MOTOR/SOLENOID
TACHOMETER TEST CONNECTOR
WASHER PUMP RELAY
WIDE OPEN THROTTLE A/C CUT-OFF RELAY
WIPER HI-LO RELAY
WIPER RUN/PARK RELAY

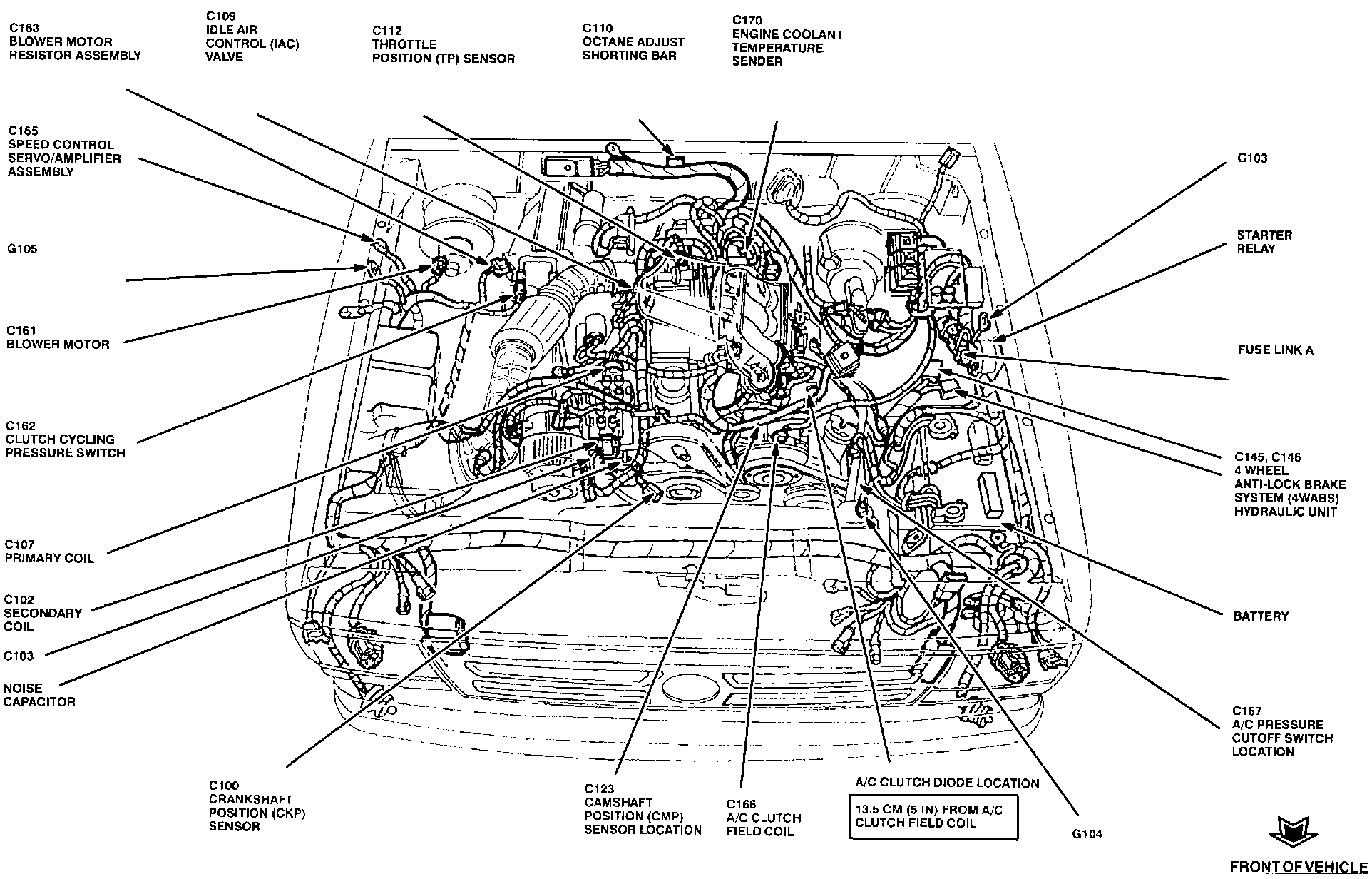

Engine View:

4 WHEEL ANTI-LOCK BRAKE SYSTEM HYDRAULIC UNIT
A/C CLUTCH DIODE
A/C CLUTCH FIELD COIL
A/C PRESSURE CUTOFF SWITCH
BATTERY
BLOWER MOTOR
BLOWER MOTOR RESISTOR ASSEMBLY
CAMSHAFT POSITION SENSOR
CLUTCH CYCLING PRESSURE SWITCH
CRANKSHAFT POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENDER
FUSE LINK A
IDLE AIR CONTROL VALVE
NOISE CAPACITOR
OCTANE ADJUST SHORTING BAR
PRIMARY COIL
SECONDARY COIL
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
STARTER RELAY
THROTTLE POSITION SENSOR

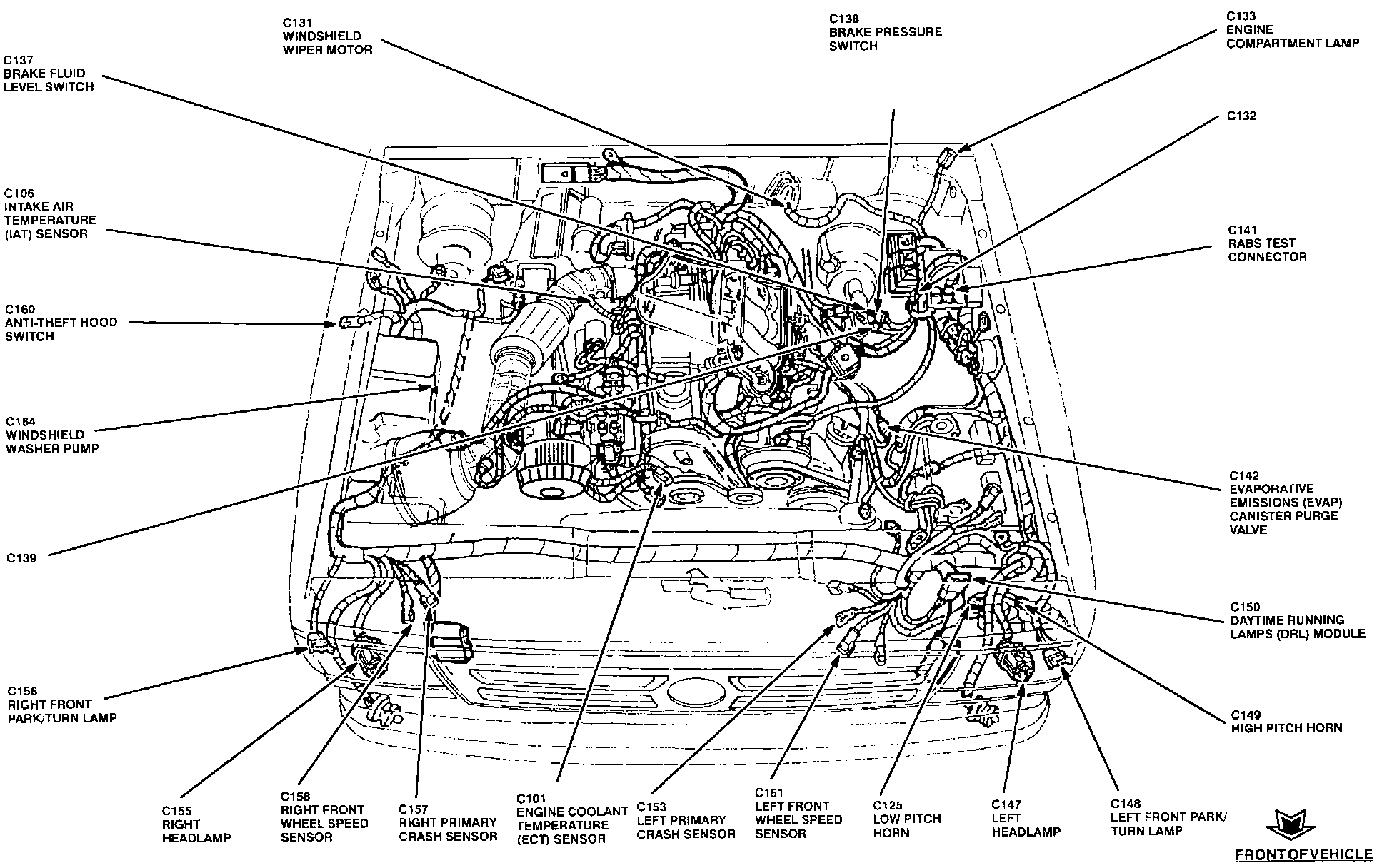

Engine View:

ANTI-THEFT HOOD SWITCH
BRAKE FLUID LEVEL SWITCH
BRAKE PRESSURE SWITCH
DAYTIME RUNNING LAMPS MODULE
ENGINE COMPARTMENT LAMP
ENGINE COOLANT TEMPERATURE SENSOR
EVAPORATIVE EMISSION CANISTER PURGE VALVE
HIGH PITCH HORN
INTAKE AIR TEMPERATURE SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT WHEEL SPEED SENSOR
LEFT HEADLAMP
LEFT PRIMARY CRASH SENSOR
LOW PITCH HORN
REAR ANTI-LOCK BRAKE SYSTEM TEST CONNECTOR
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT WHEEL SPEED SENSOR
RIGHT HEADLAMP
RIGHT PRIMARY CRASH SENSOR
WINDSHIELD WASHER PUMP
WINDSHIELD WIPER MOTOR
