Ford
>>
1995
>>
Ranger 2WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Engine Compartment Fuse/Relay Box
Engine Compartment Fuse/Relay Box

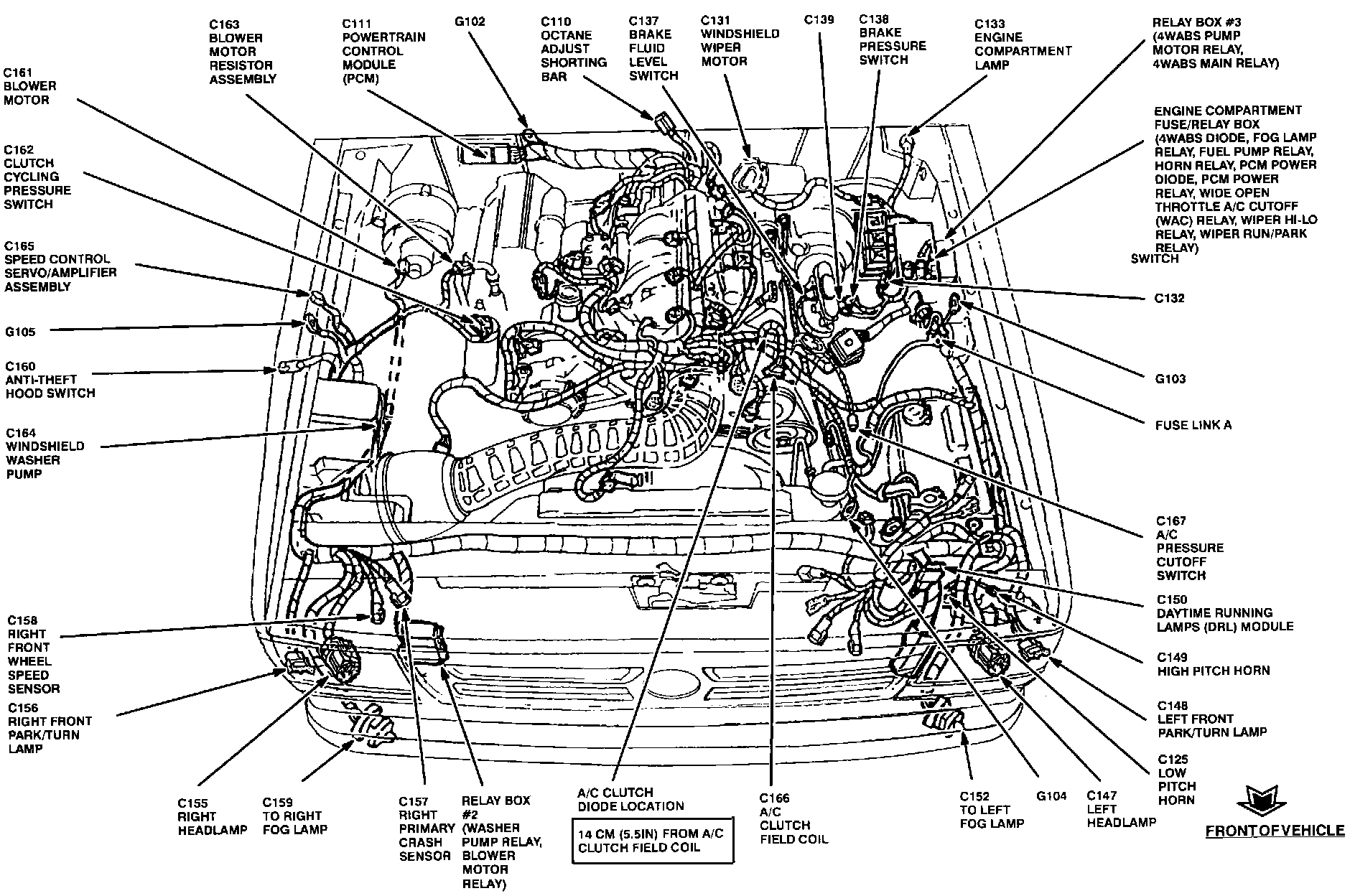

Engine View:
