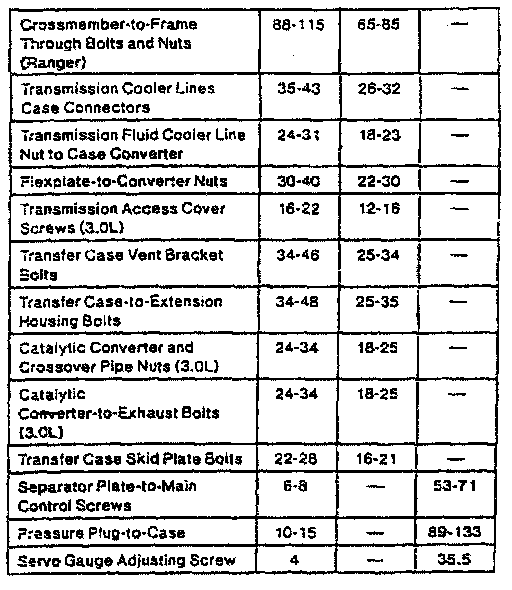

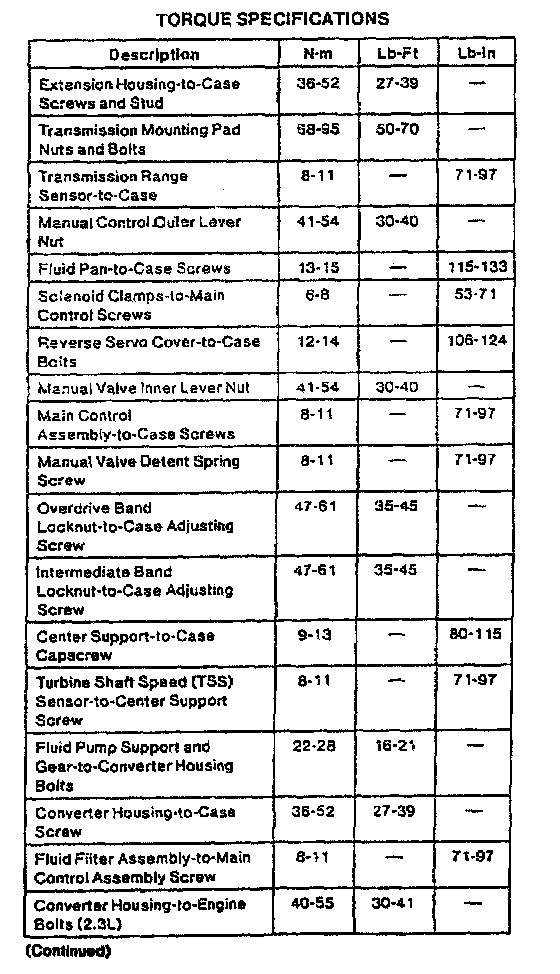

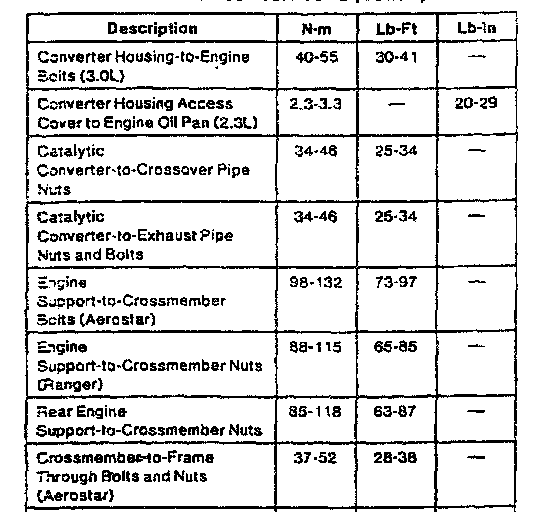

A/T Torque Data





4R44E 4-spd A/T, Transmission Torque:






4R44E 4-spd A/T, Transmission Torque:






4R44E 4-spd A/T, Transmission Torque:
