Battery Discharge Protection Relay: Locations

Behind Instrument Panel View:

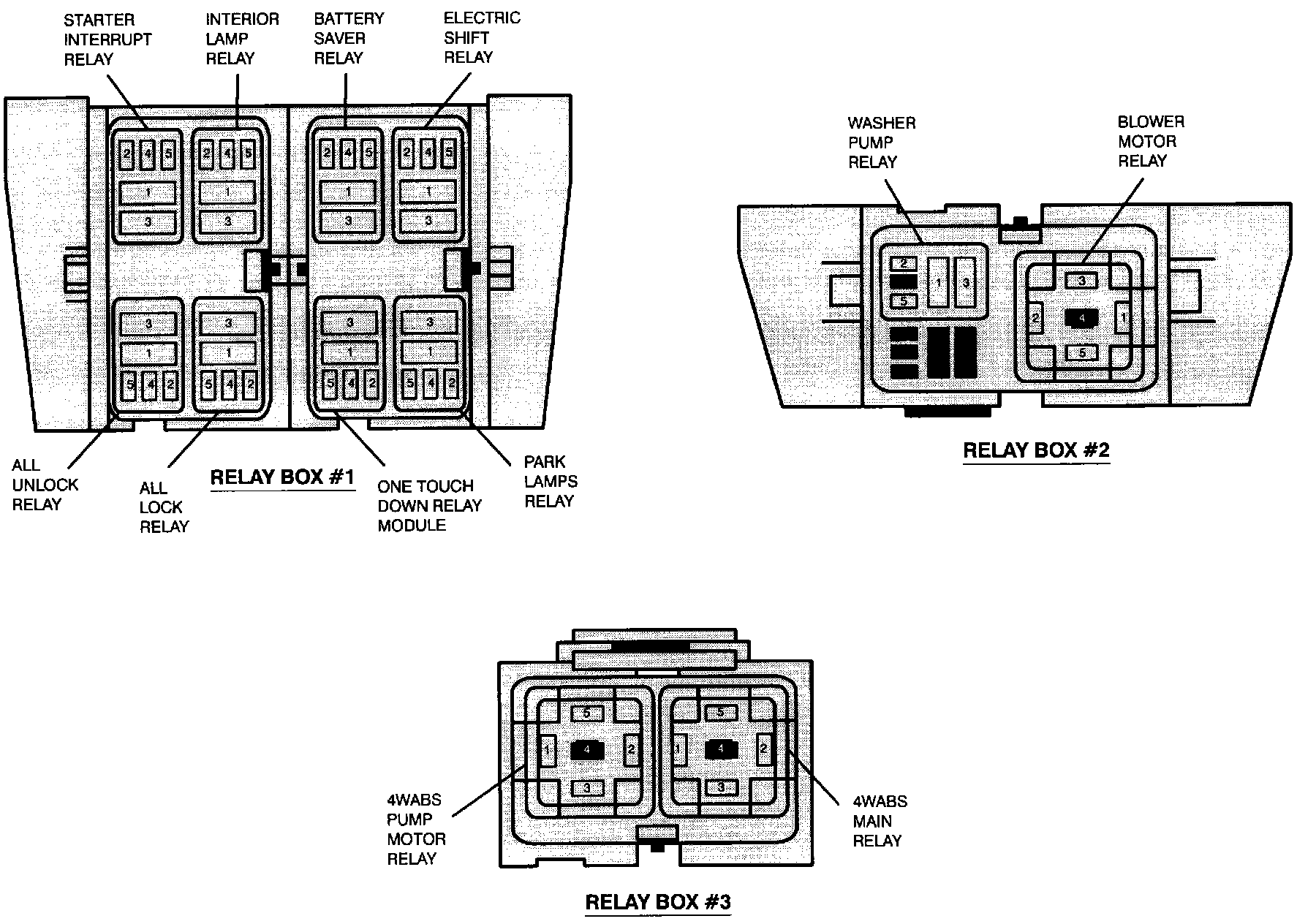

Relay Box:





The Battery Saver Relay is located in relay box #1.
