Ford
>>
1995
>>
Ranger 4WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Diagrams (By Ground Number)
>>
G200
G200
Grounds (G105, G200):

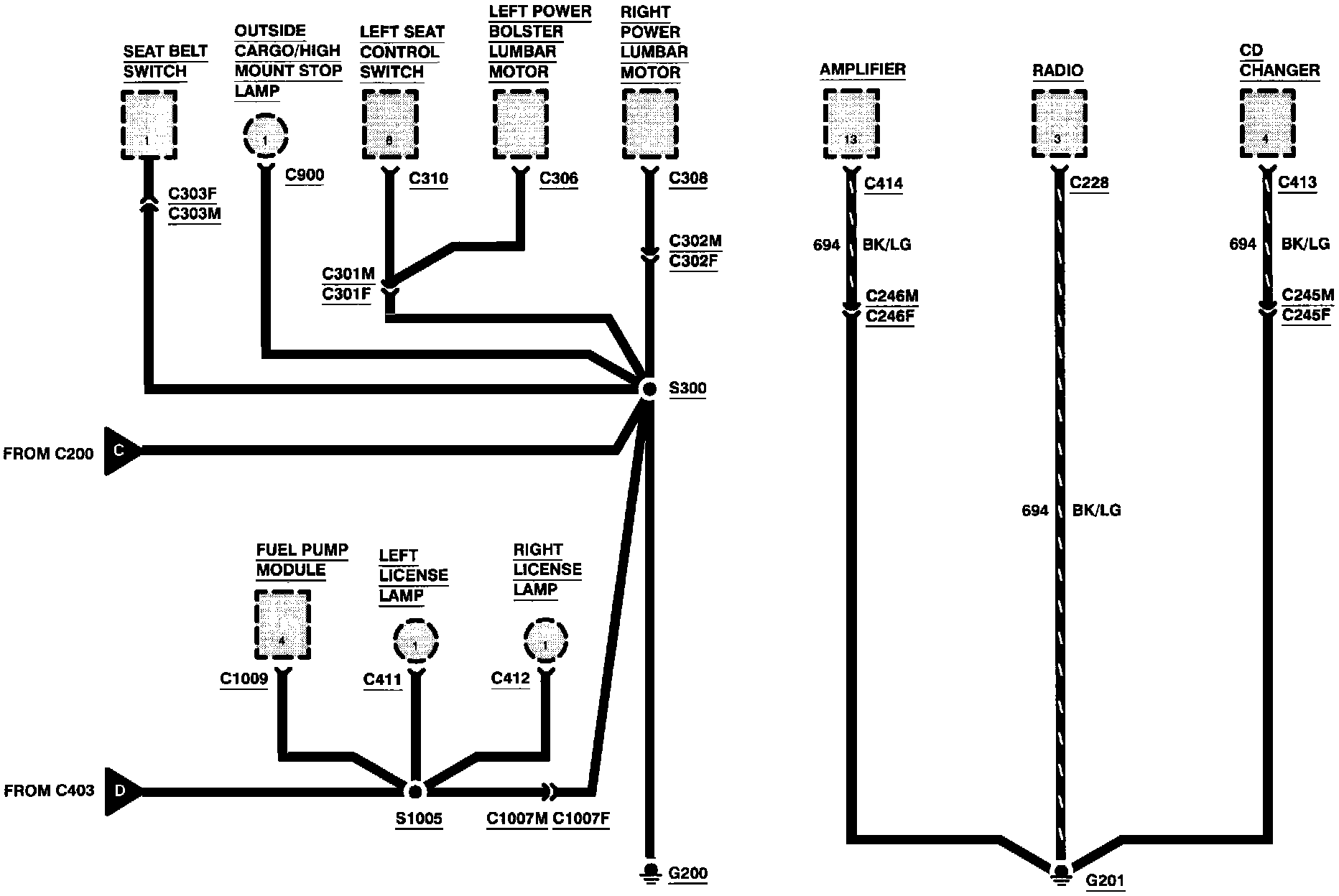

Grounds (G200, G201):
