Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
Ranger 4WD L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Diagnostic Trouble Code Tests and Associated Procedures
>>
Manufacturer Code Charts
>>
DTC 52: Lost Battery Feed
>>

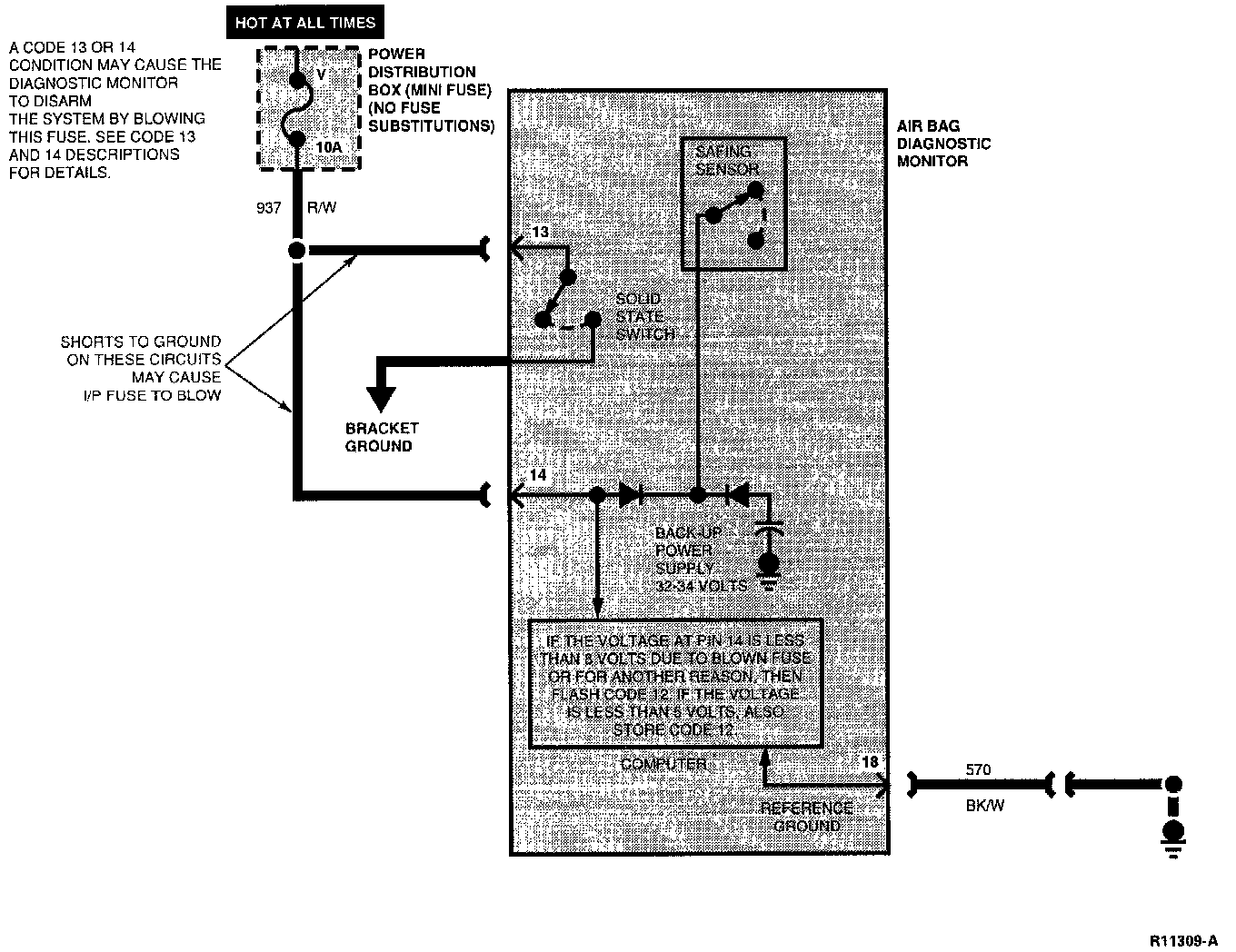

System Schematic
System Schematic
