Vacuum and Vapor Hose Routing

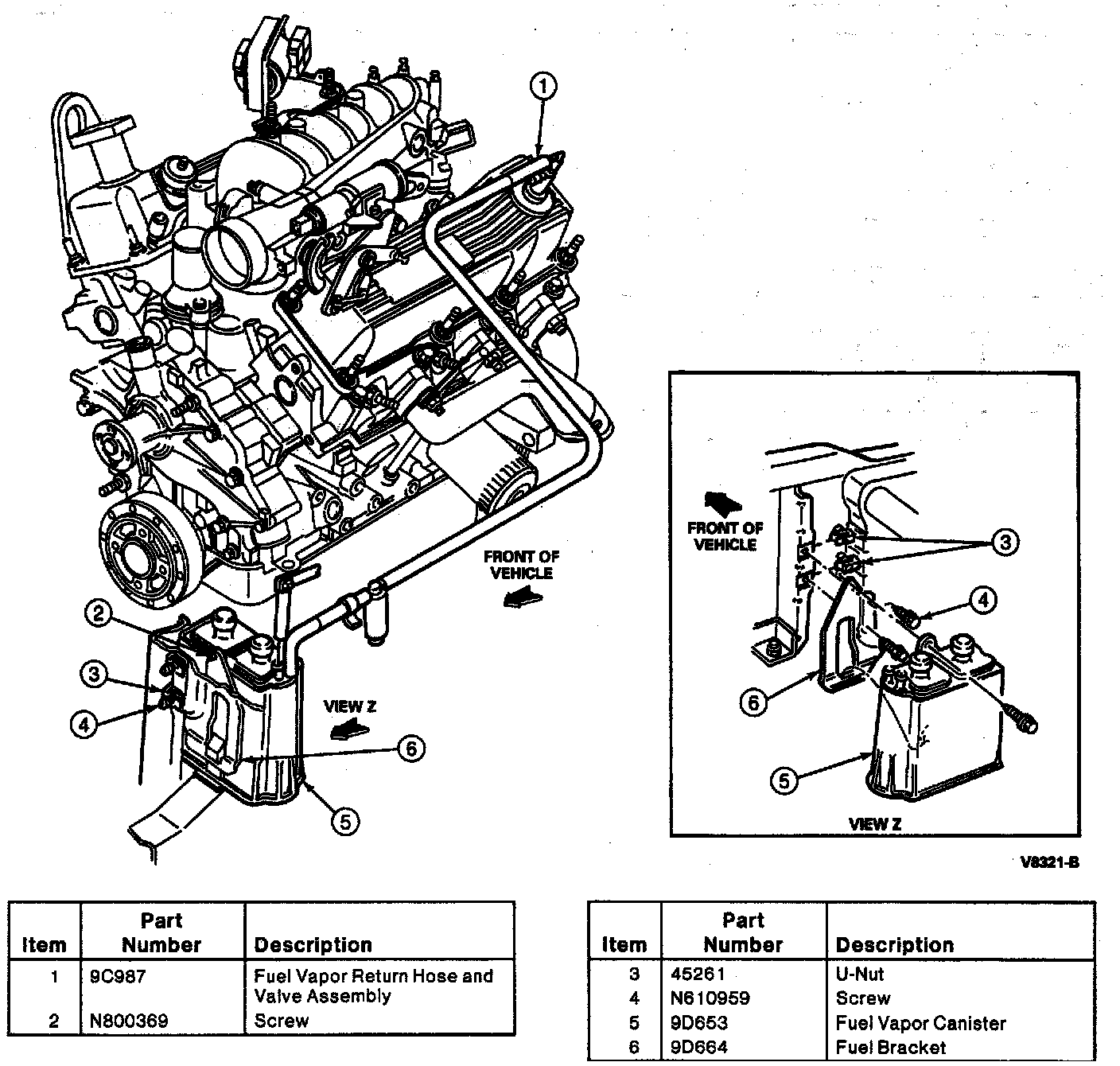

Vapor Lines And Canister Position:

Vapor lines and canister position.

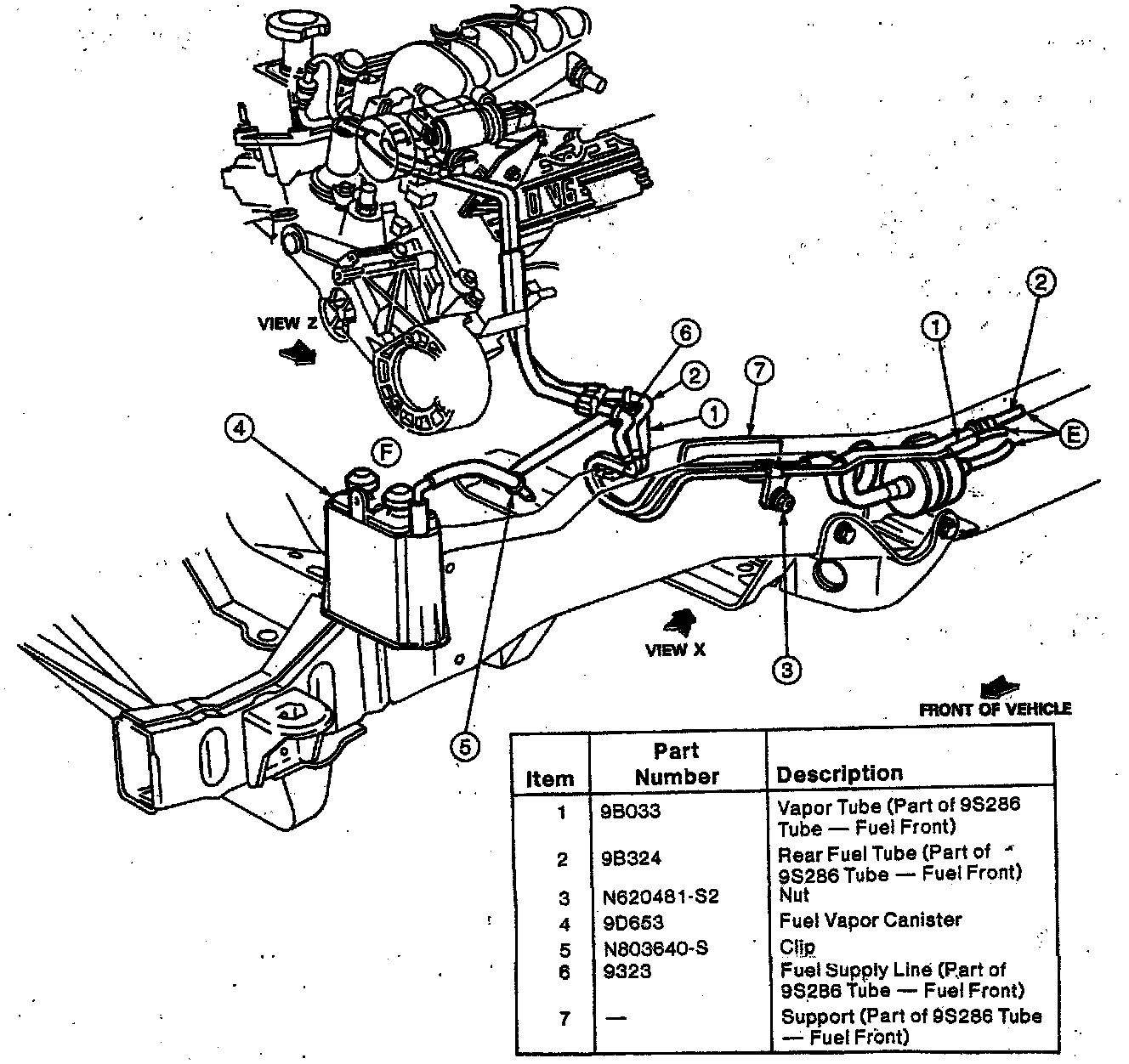

Vapor Lines Routing:

Vapor line routing.
