Engine Controls

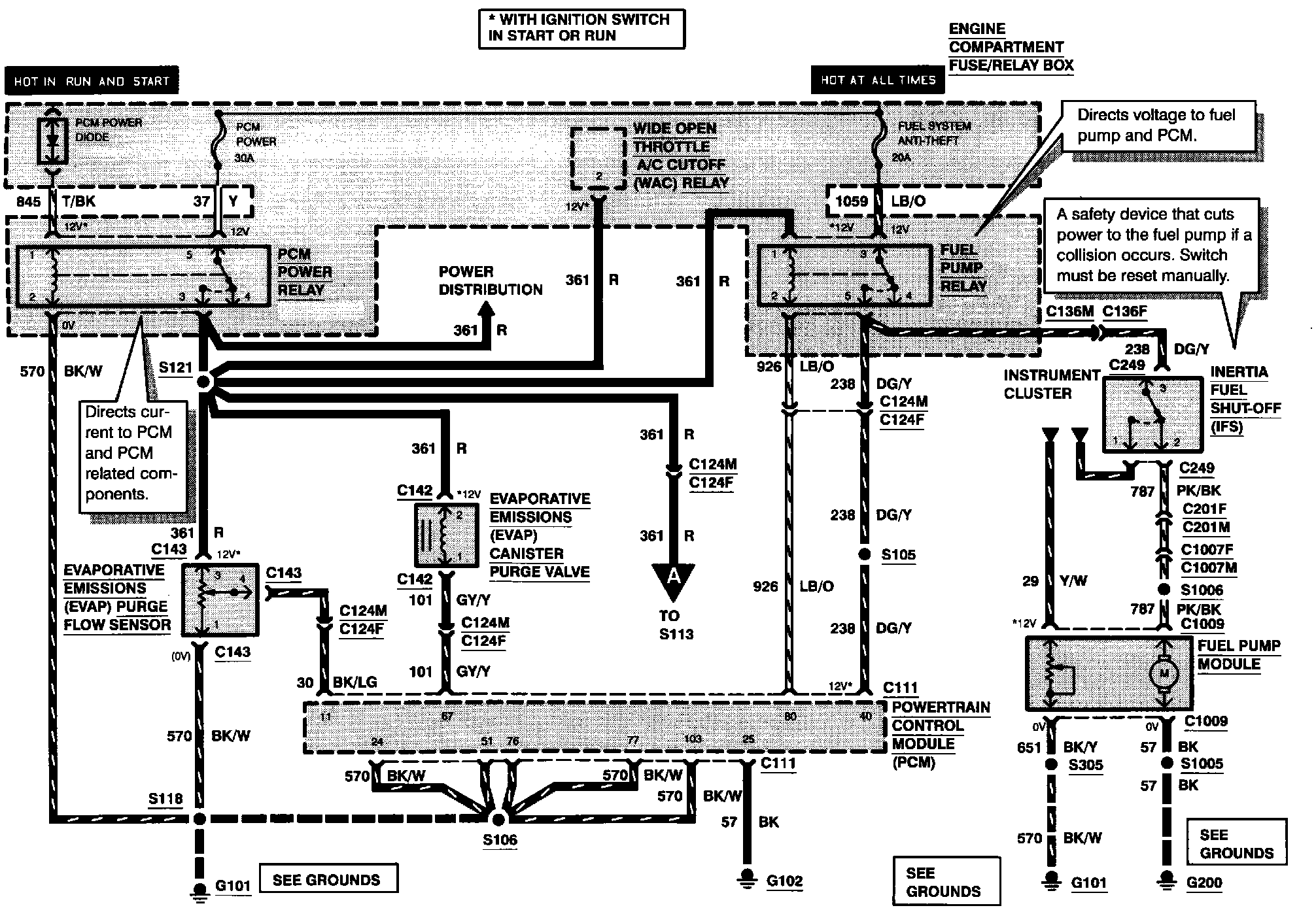

Electronic Engine Controls (Part 1 Of 7):
EVAPORATIVE EMISSIONS CANISTER PURGE VALVE
EVAPORATIVE EMISSIONS PURGE FLOW SENSOR
FUEL PUMP MODULE
FUEL PUMP RELAY
INERTIA FUEL SHUT-OFF
PCM POWER DIODE
PCM POWER RELAY

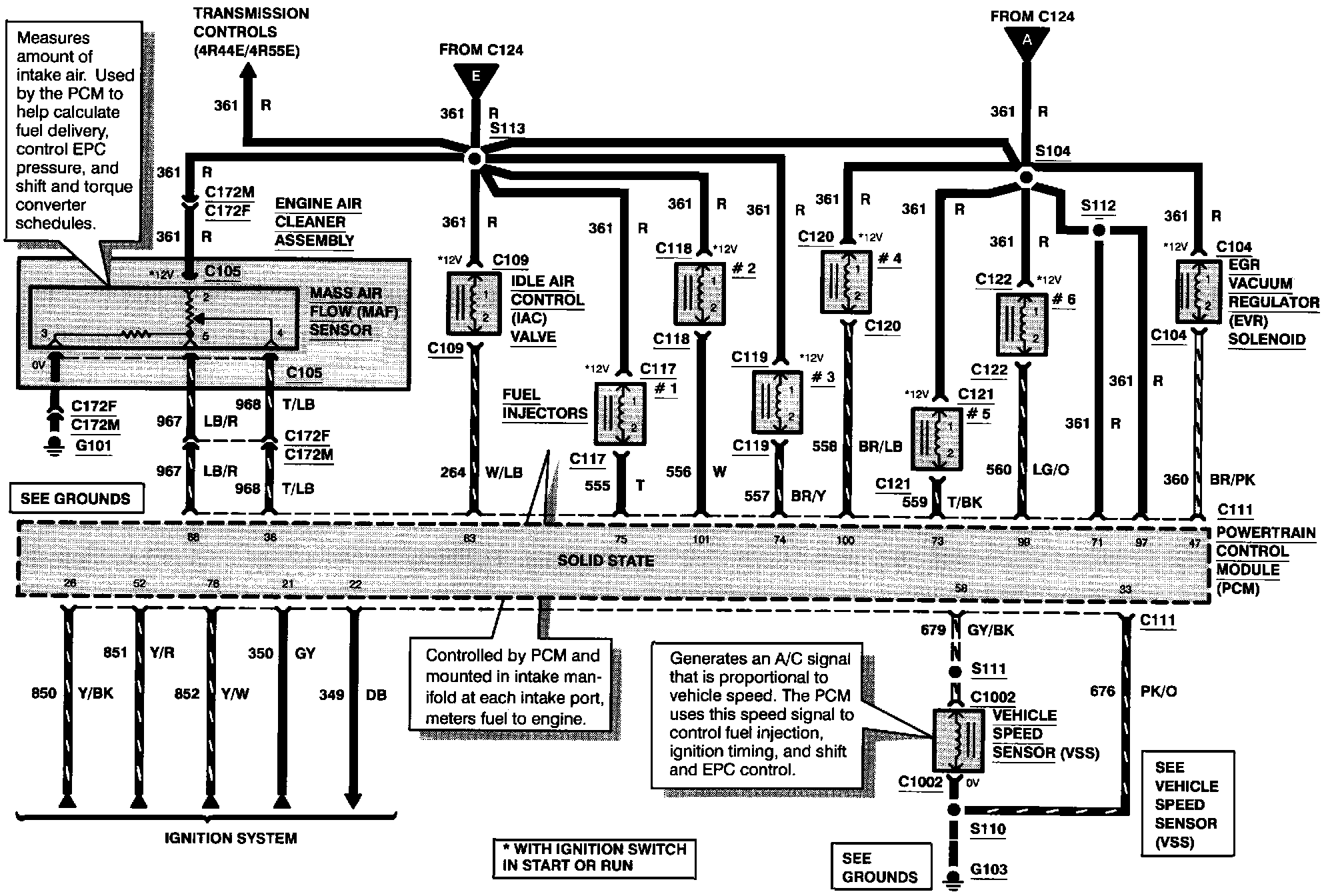

Electronic Engine Controls (Part 2 Of 7):
EGR VACUUM REGULATOR SOLENOID
FUEL INJECTORS
IDLE AIR CONTROL VALVE
MASS AIR FLOW SENSOR
VEHICLE SPEED SENSOR

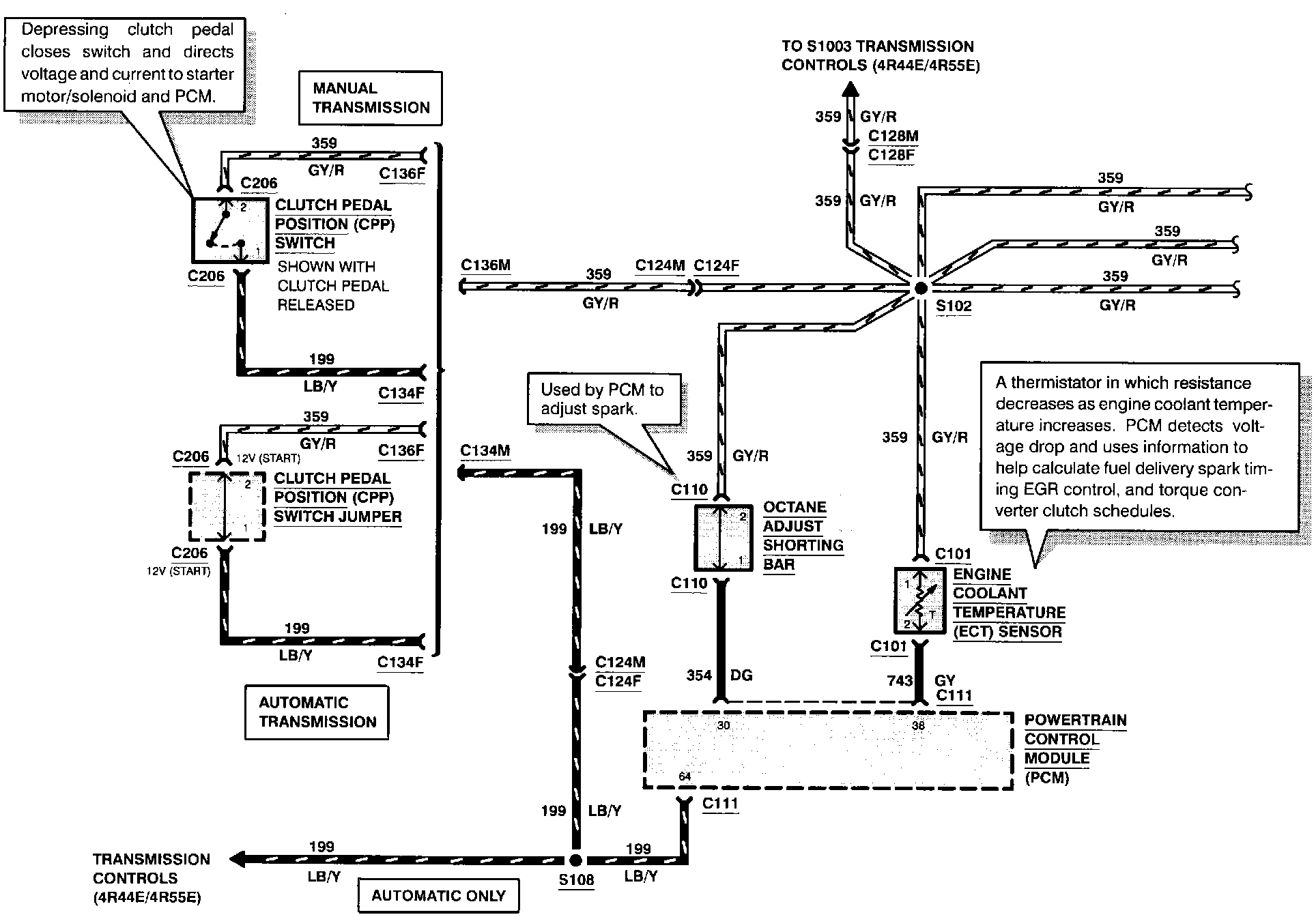

Electronic Engine Controls (Part 3 Of 7):
CLUTCH PEDAL POSITION SWITCH
ENGINE COOLANT TEMPERATURE SENSOR
OCTANE ADJUST SHORTING BAR

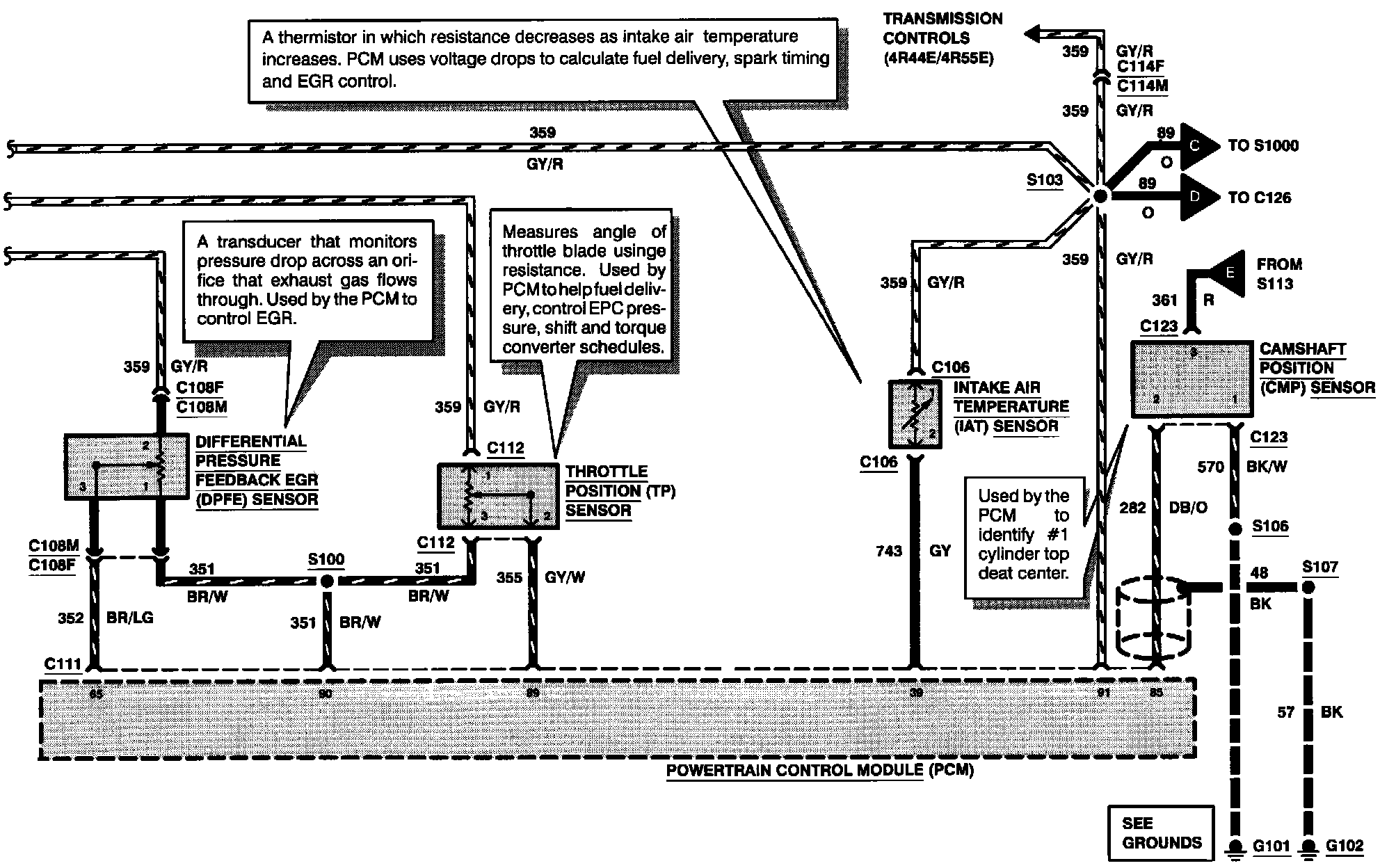

Electronic Engine Controls (Part 4 Of 7):
CAMSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
INTAKE AIR TEMPERATURE SENSOR
THROTTLE POSITION SENSOR

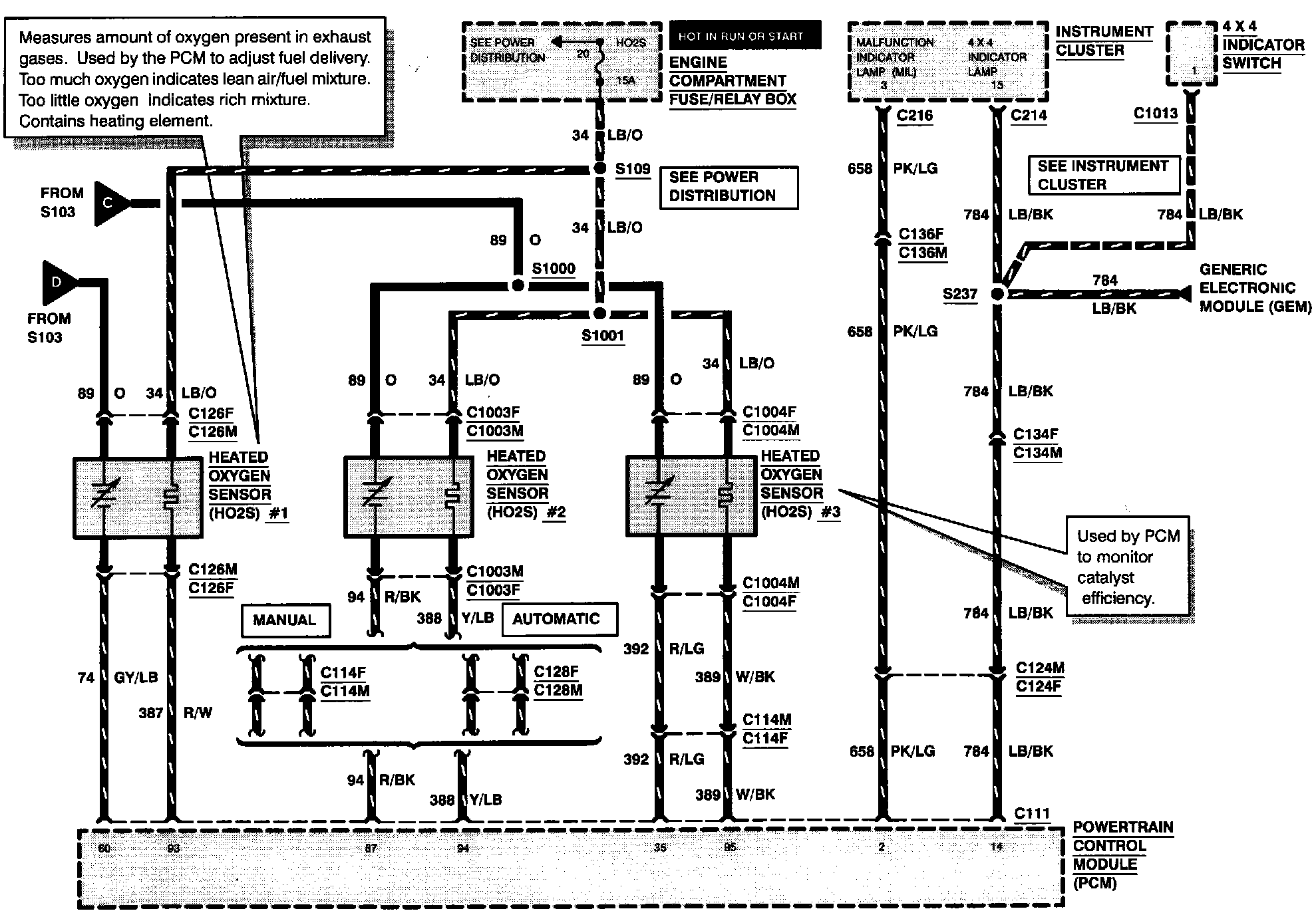

Electronic Engine Controls (Part 5 Of 7):
HEATED OXYGEN SENSOR #1
HEATED OXYGEN SENSOR #2
HEATED OXYGEN SENSOR #3

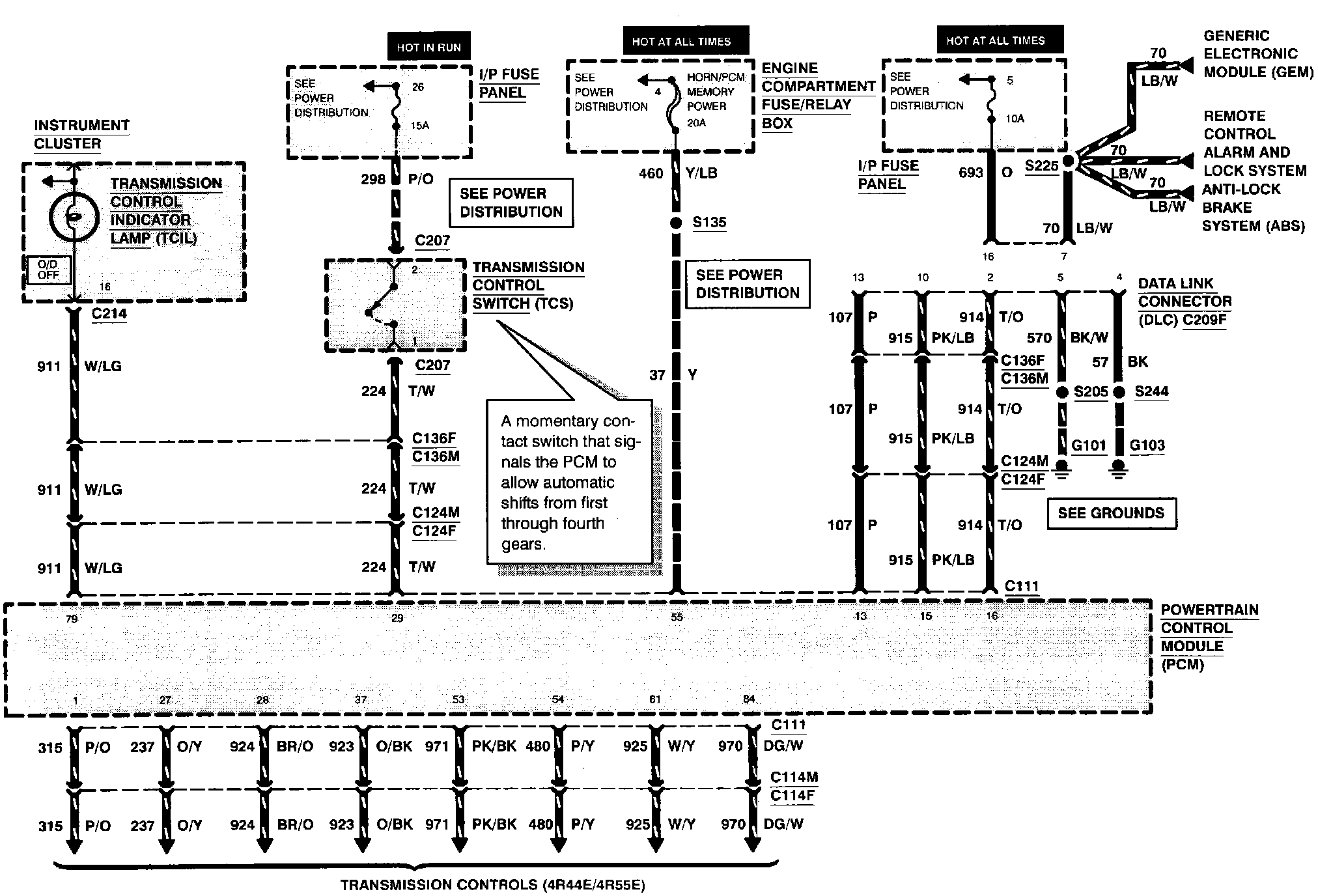

Electronic Engine Controls (Part 6 Of 7):
TRANSMISSION CONTROL INDICATOR LAMP

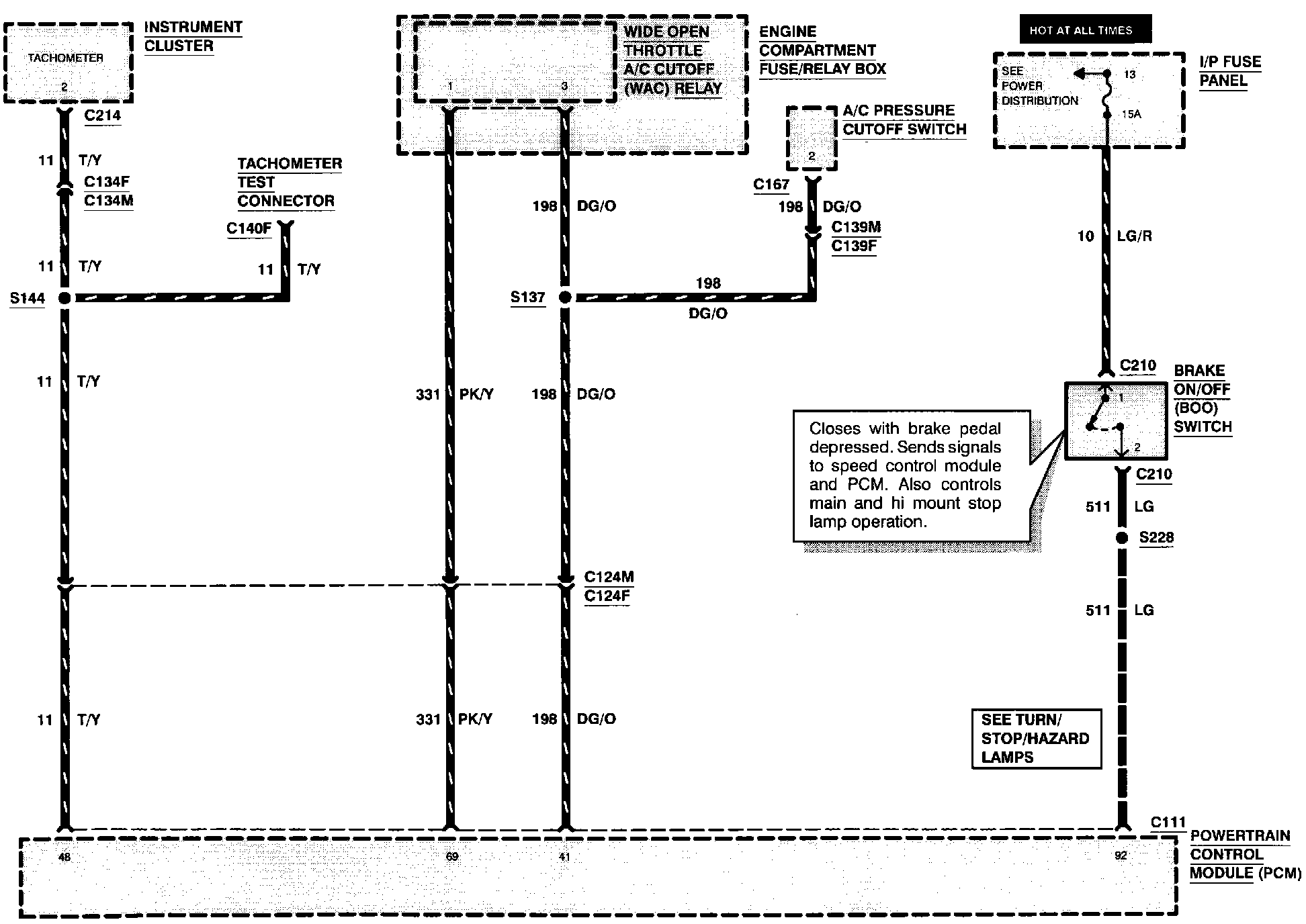

Electronic Engine Controls (Part 7 Of 7):
[1][2]BRAKE ON/OFF SWITCH
