Engine Views

Engine View:

ANTI-LOCK POWER RELAY
AUTO SHOCK TEST CONNECTOR
COOLING FAN MOTOR
DATA LINK CONNECTORS
EGR VACUUM REGULATOR SOLENOID
EVAPORATIVE EMISSIONS CANISTER PURGE SOLENOID
FOG LAMP RELAY
FUEL INJECTORS
GROUND BUS
HEATED OXYGEN SENSOR #1
HORN RELAY
HORNS
IDLE AIR CONTROL VALVE
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR
INTEGRATED RELAY CONTROL MODULE
LEFT PRIMARY CRASH SENSOR
MASS AIR FLOW SENSOR
PCM POWER RELAY
POWER DISTRIBUTION BOX
PRESSURE FEEDBACK EGR SENSOR
PUSHER FAN RELAY
RIGHT PRIMARY CRASH SENSOR
SPEED CONTROL SERVO

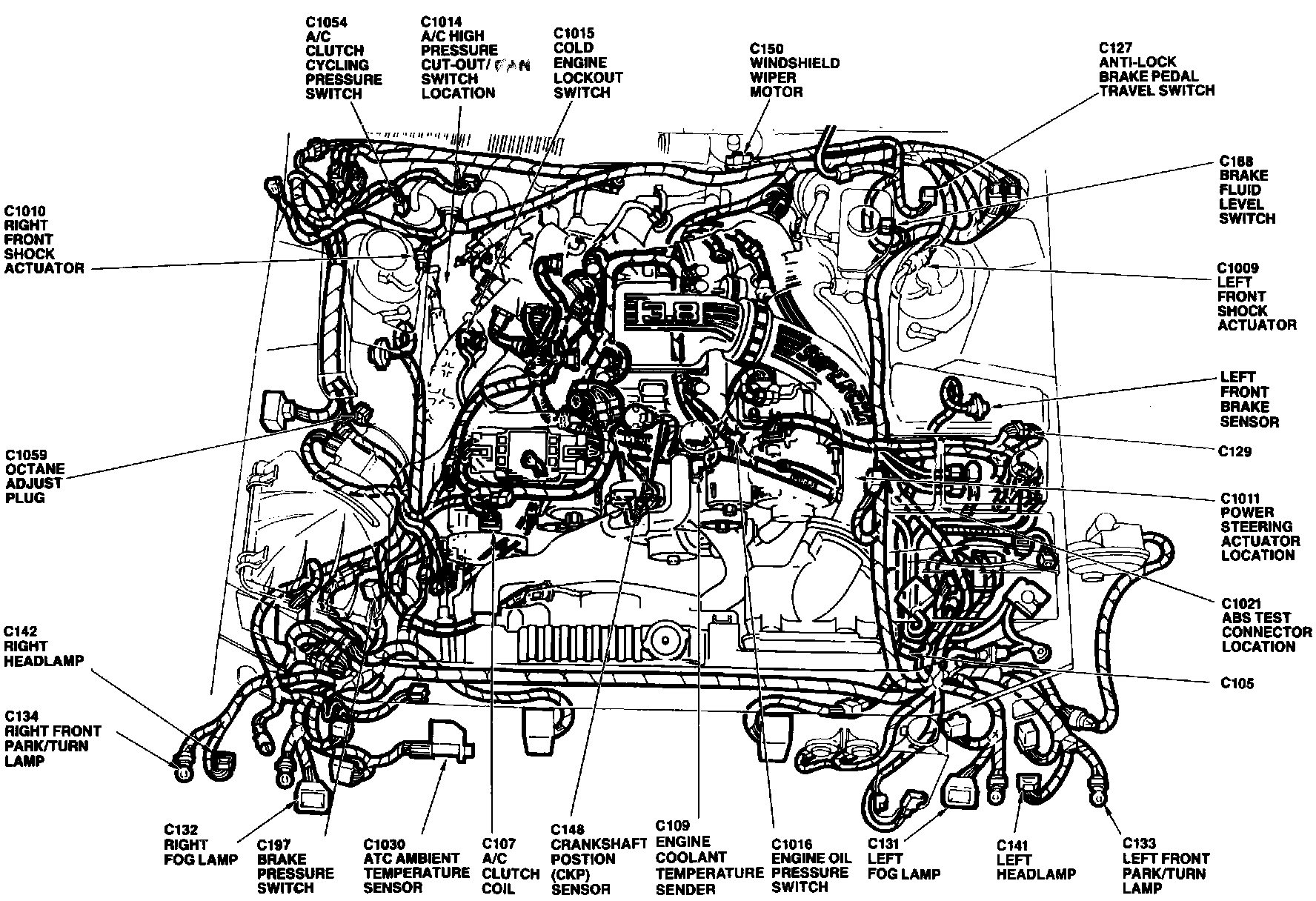

Engine View:

A/C CLUTCH COIL
A/C CLUTCH CYCLING PRESSURE SWITCH
A/C HIGH PRESSURE CUT-OUT/FAN SWITCH
ANTI-LOCK BRAKE PEDAL TRAVEL SWITCH
ANTI-LOCK BRAKE SYSTEM TEST CONNECTOR
AUTOMATIC TEMPERATURE CONTROL AMBIENT TEMPERATURE SENSOR
BRAKE FLUID LEVEL SWITCH
BRAKE PRESSURE SWITCH
COLD ENGINE LOCKOUT SWITCH
CRANKSHAFT POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENDER
ENGINE OIL PRESSURE SWITCH
LEFT FOG LAMP
LEFT FRONT BRAKE SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT FRONT SHOCK ACTUATOR
LEFT HEADLAMP
OCTANE ADJUST PLUG
POWER STEERING ACTUATOR
RIGHT FOG LAMP
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SHOCK ACTUATOR
RIGHT HEADLAMP
WINDSHIELD WIPER MOTOR

Engine View:

ANTI-LOCK BRAKE CONTROL MODULE
ANTI-LOCK BRAKE FLUID LEVEL SWITCH
ANTI-LOCK PUMP MOTOR RELAY
BAROMETRIC ABSOLUTE PRESSURE SENSOR
CAMSHAFT POSITION SENSOR
ENGINE COMPARTMENT LAMP
ENGINE COOLANT LEVEL SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
GENERATOR/VOLTAGE REGULATOR
IGNITION COIL
LEFT FRONT PARK LAMP
PUSHER FAN
RADIO NOISE CAPACITOR
RIGHT FRONT BRAKE SENSOR
RIGHT FRONT PARK LAMP
SPARK OUT CHECK CONNECTOR
THROTTLE POSITION SENSOR
