Front

CONSTRUCTION

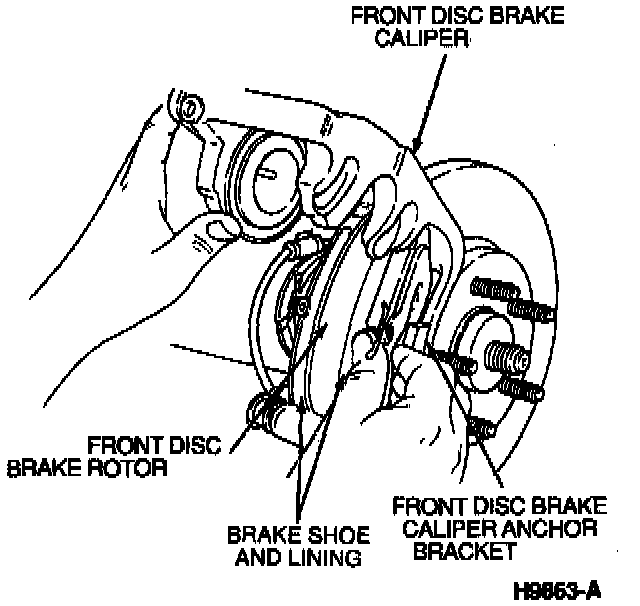

Front disc brakes have the following features:
^ Pin slider-type bolt on anchor bracket caliper assemblies with 276 mm (10.9 inch) full cast front disc brake rotors.
^ Brake caliper has a phenolic caliper piston with a piston seal and a press-in type dust boot.
^ Brake caliper is attached to the front suspension front wheel spindle with two 12 mm attaching bolts.
^ The disc brake caliper is mounted to two slide pins which, once lubricated and assembled in the front disc brake caliper anchor plate, provide "sealed for life" performance.
