Seat Belt Systems

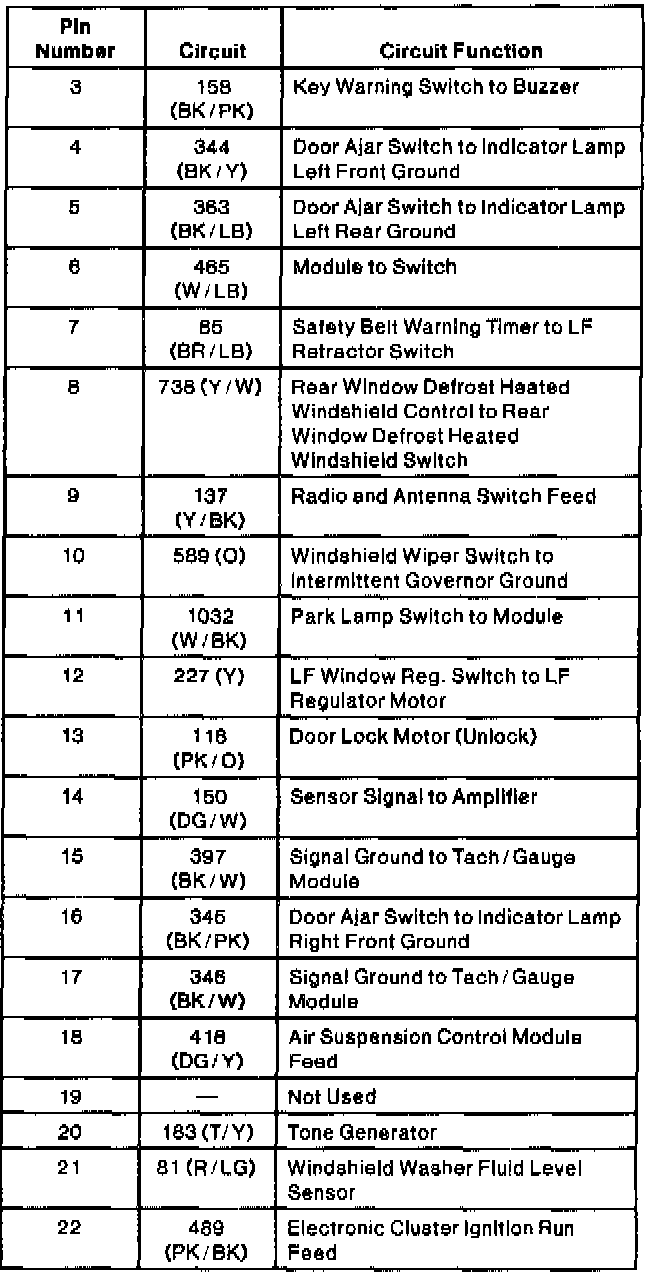

Instrument Cluster (Analog) 14-Pin Connector:

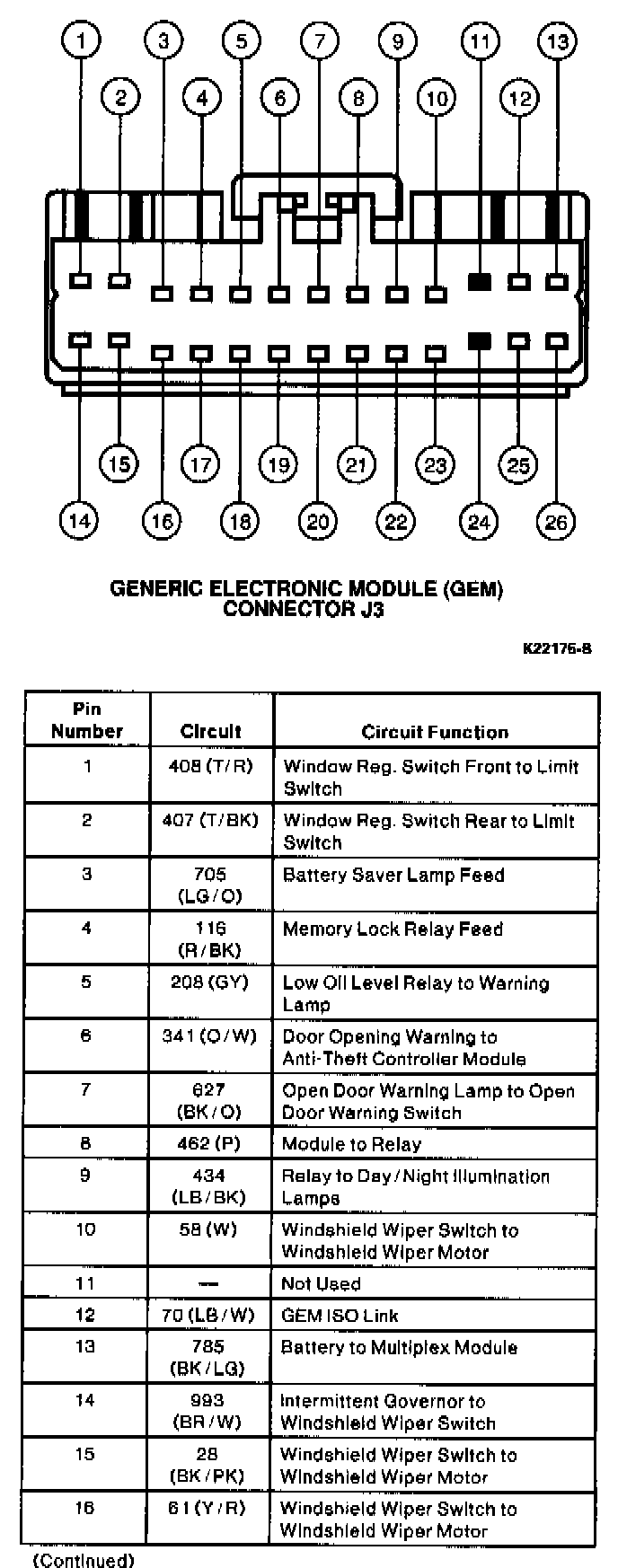

General Electronic Module (GEM) Connector J3:



General Electronic Module (GEM) Connector J3:



General Electronic Module (GEM) Connector J2:



General Electronic Module (GEM) Connector J2:
