Ground Diagrams (By Component Name)

Grounds (G100):

Cluster Switch Assembly
Fuel Pump/Fuel Gauge Sender
Instrument Cluster
Powertrain Control Module
Rear Height Sensor
Vehicle Speed Sensor

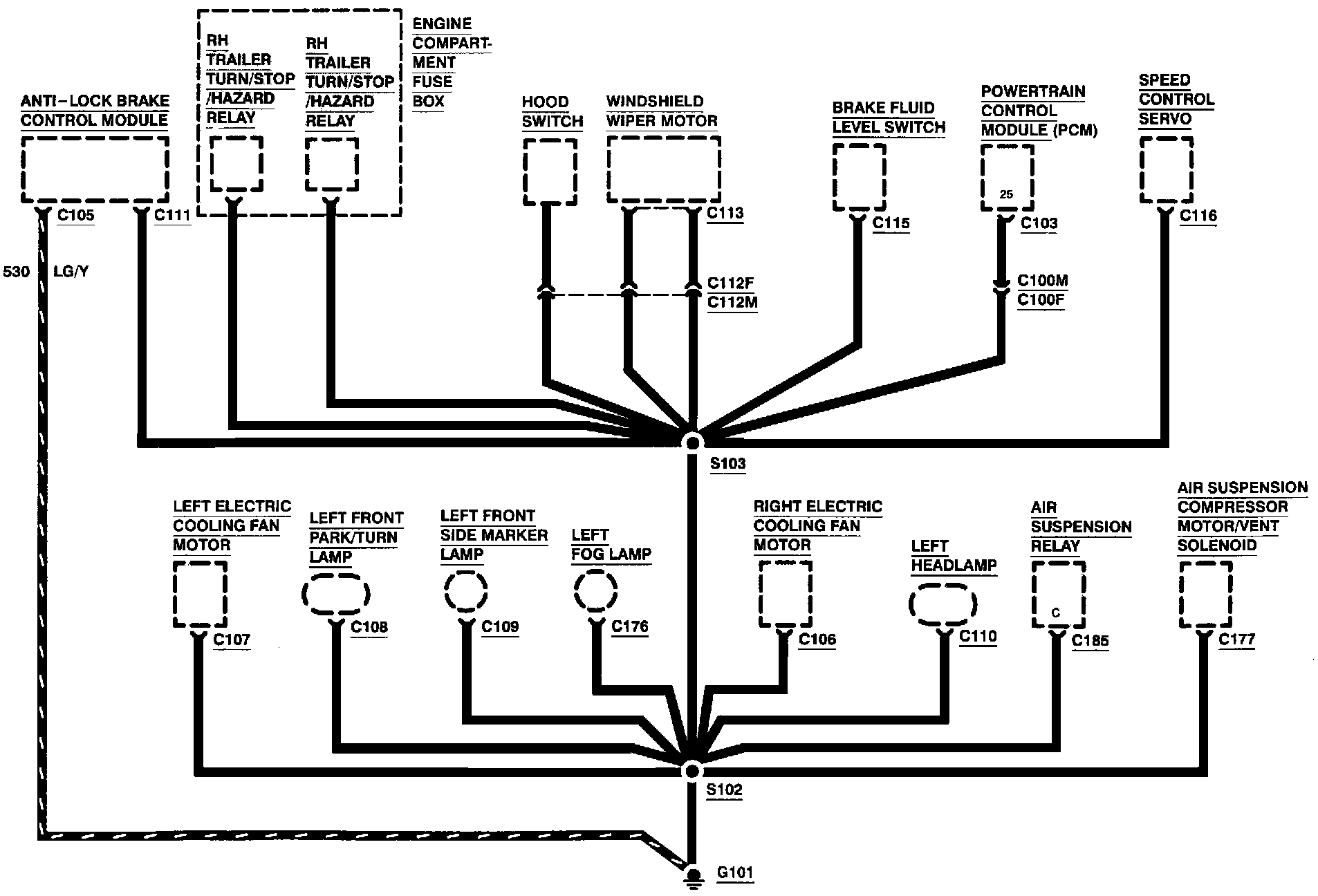

Grounds (G101):

Air Suspension Compressor Motor/Vent Solenoid
Air Suspension Relay
Anti-Lock Brake Control Module
Brake Fluid Level Switch
Engine Compartment Fuse Box
Hood Switch
Left Electric Cooling Fan Motor
Left Fog Lamp
Left Front Park/Turn Lamp
Left Front Side Marker Lamp
Left Headlamp
Powertrain Control Module
RH Trailer Turn/Stop/Hazard Relay
Right Electric Cooling Fan Motor
Speed Control Servo
Windshield Wiper Motor

Grounds (G102):

Liftgate Washer Pump Motor
Right Fog Lamp
Right Front Park/Turn Lamp
Right Front Side Marker Lamp
Right Headlamp
Washer Fluid Level Switch
Windshield Washer Pump Motor

Grounds (G200):

Air Bag Diagnostic Module
Anti-Theft Controller Module
Compact Disc
Generic Electronic Module
Ignition Cylinder Tamper Switch
Radio
Radio Amplifier
Remote Headphone Module
Remote/Keyless Entry Module
Subwoofer Assembly

Grounds (G202):

Blend Door Actuator
Blower Motor Resistor
Door Lock Relay
Door Unlock Relay
Electronic Day/Night Mirror
I/P Fuse Panel
Remote/Keyless Entry Module
Right Door Ajar Switch
Right Door Disarm Switch
Right Door Handle Switch
Right Door Lock Switch
Right Front Courtesy Lamp
Right Lock Cylinder Lamp
Right Power Window Switch
Right Power/Heated Mirror
Sliding Door Ajar Switch
Stepwell Courtesy Lamp

Grounds (G202):

Keyless Entry Switch Assembly
Left Door Ajar Switch
Left Door Disarm Switch
Left Door Handle Switch
Left Door Lock Switch
Left Front Courtesy Lamp
Left Lock Cylinder Lamp
Left Power/Heated Mirror
Master Window Control Switch
Power Mirror Switch

Grounds (G300):

Fuel Pump/Fuel Gauge Sender
Left Lumbar Seat Pump Motor
Left Seat Control Switch
Power Plug
Rear Auxiliary Blower Motor Switch Illumination
Rear Cigar Lighter
Rear Door Lock Switch
Remote Headphone Module
Right Lumbar Seat Pump Motor
Seat Belt Buckle Switch

Grounds (G301):

Air Suspension Switch
Cargo Lamp
High Mount Stop Lamp
Left Backup Lamp
Left License Lamp
Left Liftgate Ajar Switch
Left Rear Stop/Side Marker Lamp
Left Rear Turn Lamp
Liftgate Disarm Switch
Liftgate Wiper Motor
Rear Window Defrost Grid
Right Backup Lamp
Right License Lamp
Right Liftgate Ajar Switch
Right Rear Stop/Side Marker Lamp
Right Rear Turn Lamp

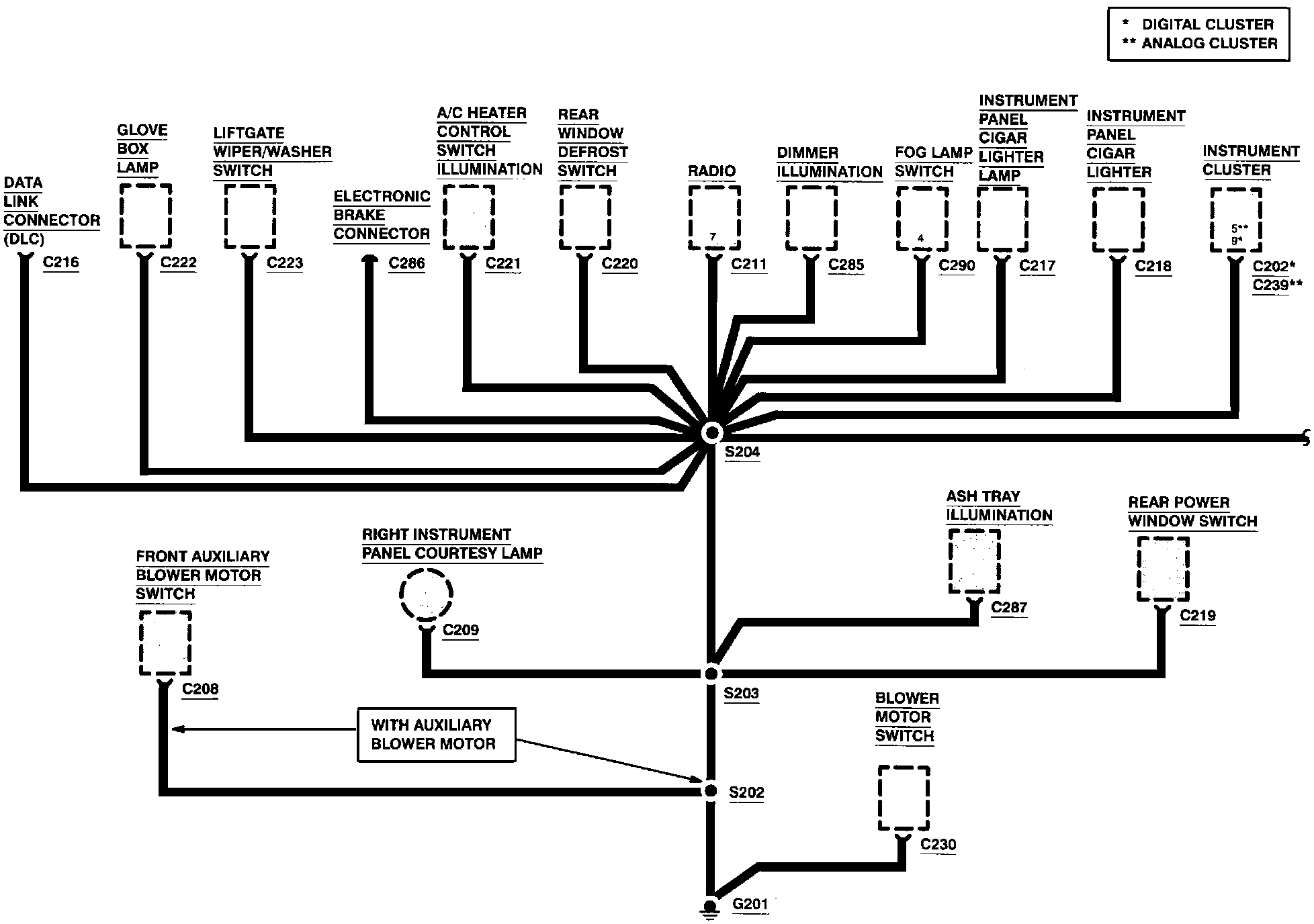

Grounds (G201):

A/C Heater Control Switch Illumination
Ash Tray Illumination
Blower Motor Switch
Dimmer Illumination
Fog Lamp Switch
Front Auxiliary Blower Motor Switch
Glove Box Lamp
Instrument Cluster
Instrument Panel Cigar Lighter
Instrument Panel Cigar Lighter Lamp
Liftgate Wiper/Washer Switch
Radio
Rear Power Window Switch
Rear Window Defrost Switch
Right Instrument Panel Courtesy Lamp

Grounds (G201):

Auxiliary Blower Motor Relay
Brake Lamp Relay
Clockspring Assembly
Cluster Switch Assembly
Electronic Flasher Relay
Fog Lamps Relay
I/P Fuse Panel
Ignition Switch
Left Instrument Panel Courtesy Lamp
Main Light Switch Illumination
Pulse Width Dimming Module
Shift Lock Actuator
Trailer Park Lamp Relay

Grounds (G200):

Fuel Pump/Fuel Gauge Sender
Instrument Cluster
Powertrain Control Module
Vehicle Speed Sensor

Grounds (G103 & G104):

A/C High Pressure Cutout/Fan Switch
Battery
Camshaft Position Sensor
Constant Control Relay Module
Ignition Control Module
Mass Air Flow Sensor
Powertrain Control Module
