Rear

Climate Control System

1. Verify the customer concern by operating the auxiliary climate control system.

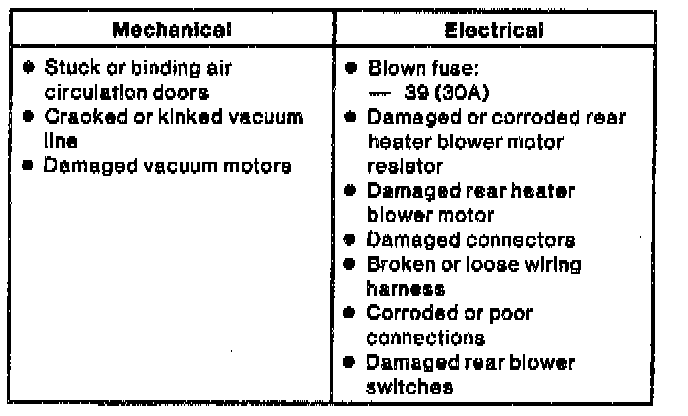

2. Visually inspect the components of the auxiliary climate control system.




3. If the fault is not visually evident, determine the symptom and proceed to the Symptom Chart.
