Evaporative Emissions System: Locations

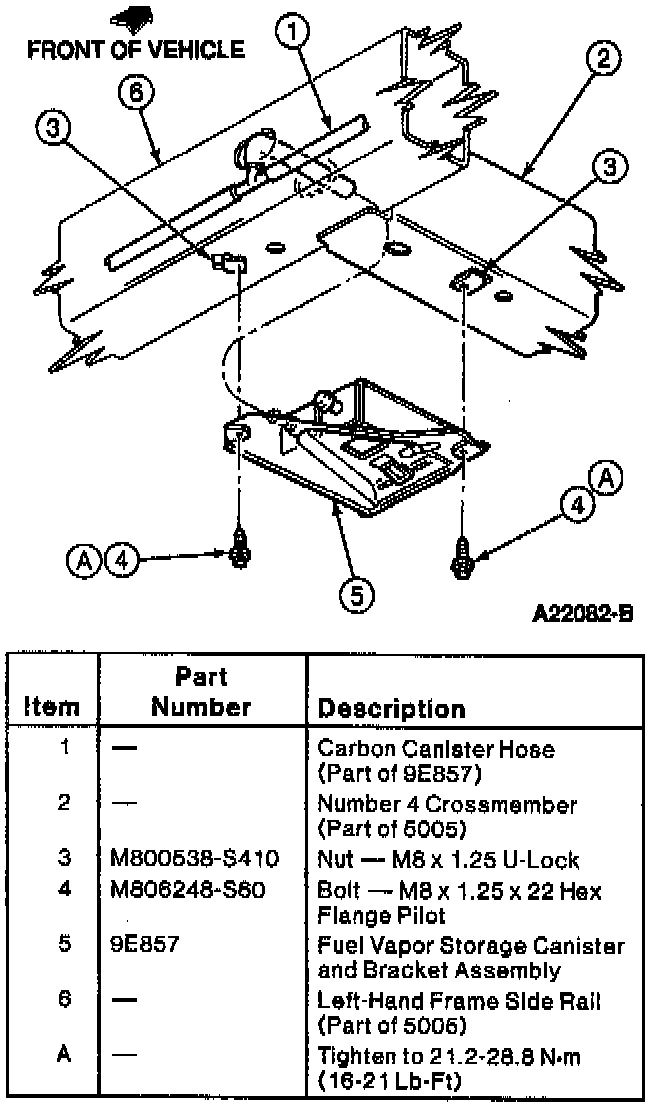

Vapor Canister Bracket:






REMOVAL
^ Disconnect vapor hose from evaporative emissions canister.
^ Remove bolts retaining fuel vapor storage canister and bracket assembly to LEFT-HAND FRAME SIDE RAIL AND CROSSMEMBER.
^ Lift evaporative emissions canister to disengage tab on back side of evaporative emissions canister, and remove evaporative emissions canister.

INSTALLATION
^ To install, reverse removal procedure.
^ Tighten mounting bolts to 21.2-28.8 Nm (16-21 ft lb).
