EGR Tube: Service and Repair

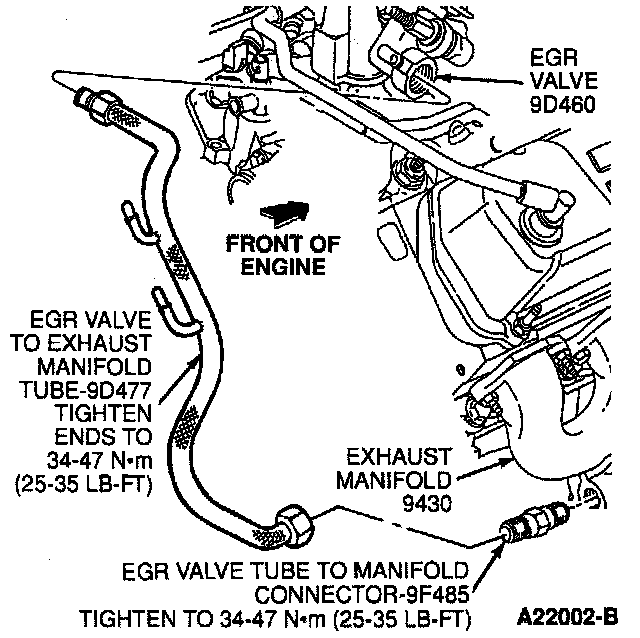

EGR To Exhaust Manifold Tube:

REMOVAL
^ Remove wet cowl.
^ Remove air cleaner outlet tube.
^ Disconnect EGR pressure valve sensor hoses from EGR valve to exhaust manifold tube.
^ Disconnect EGR valve to exhaust manifold tube at EGR valve and exhaust manifold.
^ Remove EGR valve tube to manifold connector from exhaust manifold.

INSTALLATION
^ To install, reverse removal procedures. Tighten EGR valve to exhaust manifold tube nuts to 34-47 Nm (25-35 ft lb). Tighten EGR valve tube to manifold connector to exhaust manifold to 45-65 Nm (33-48 lb-ft).
