Electrical Diagrams
Electrical Diagrams

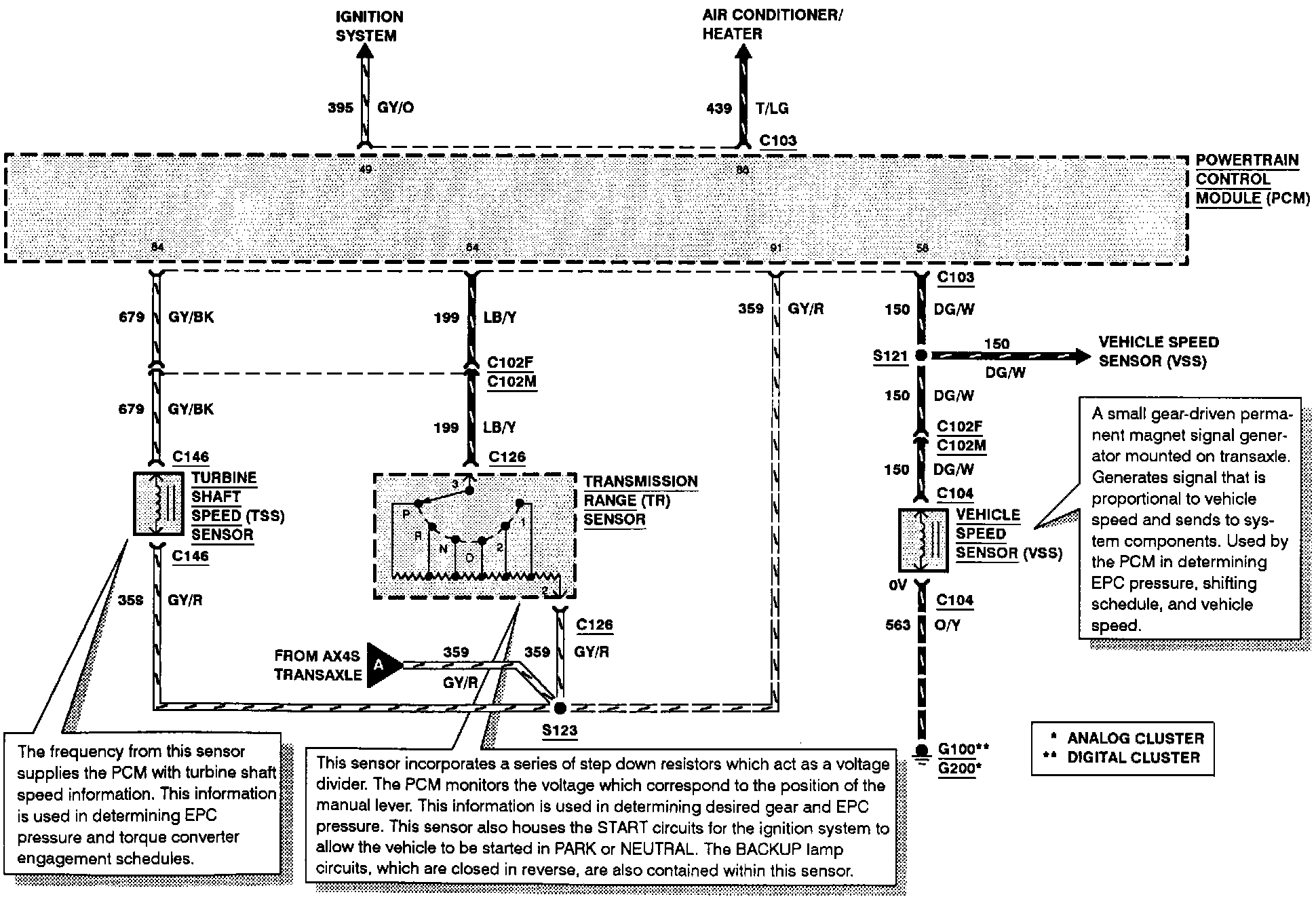

Electronic Automatic Transaxle (AX4S) (Part 1 Of 3):

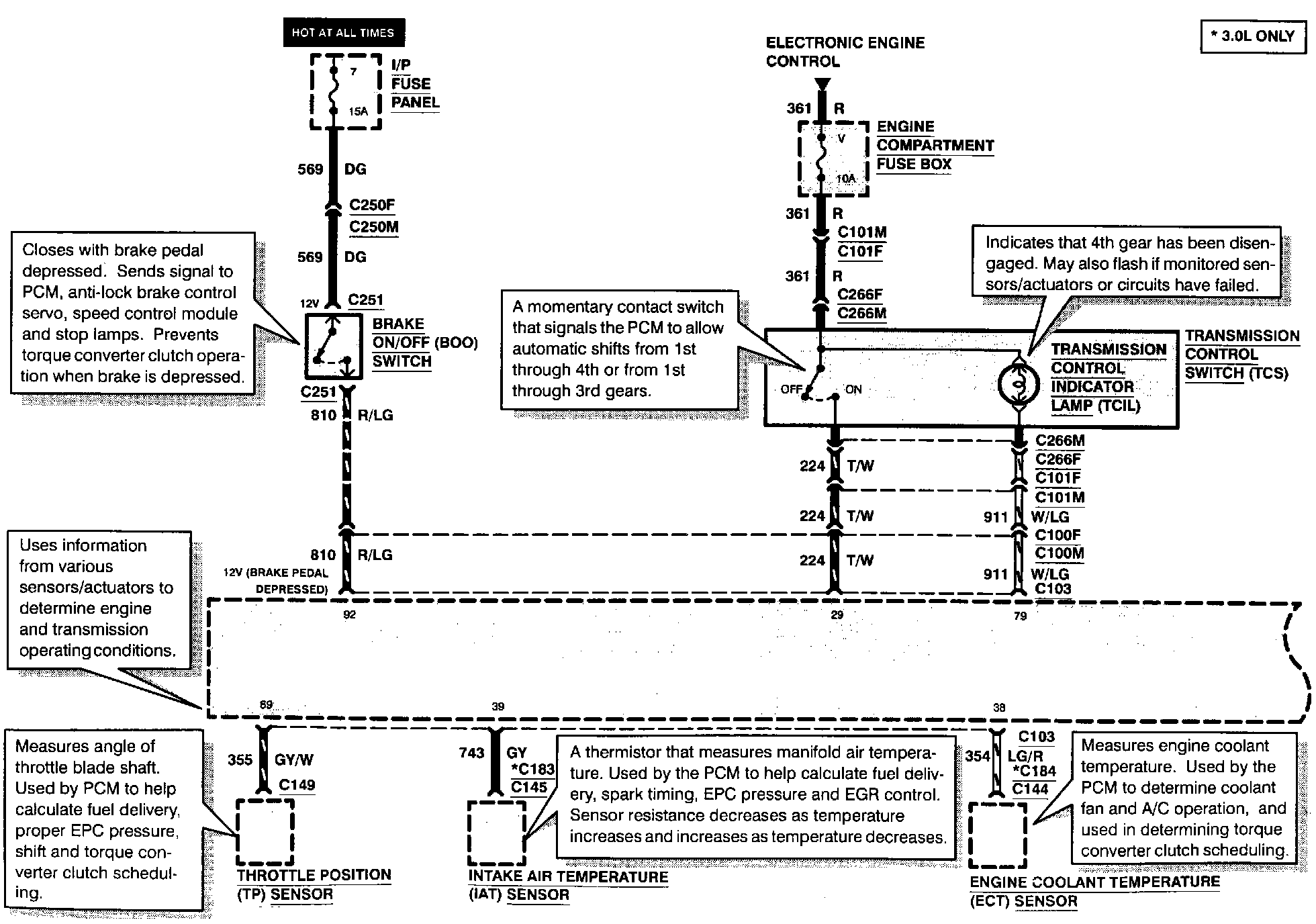

Electronic Automatic Transaxle (AX4S) (Part 2 Of 3):
Electronic Automatic Transaxle (AX4S) (Part 3 Of 3):
