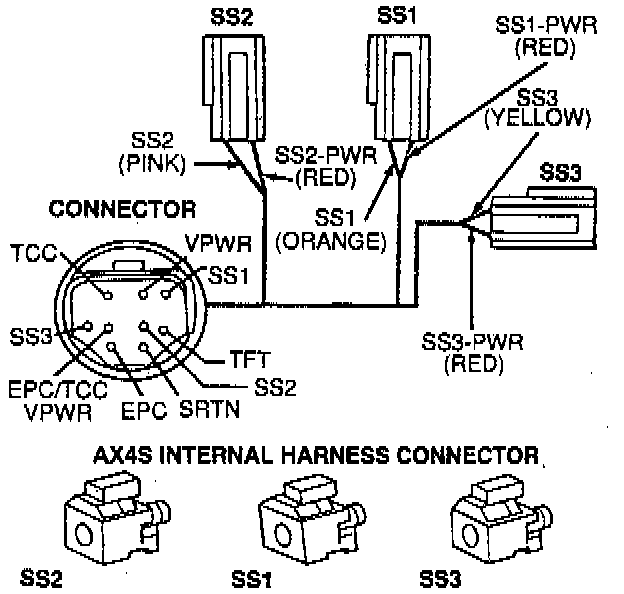

Shift Solenoid Assemblies (SS1, SS2, SS3)

DESCRIPTION
Three ON / OFF solenoids are used for electronic shift scheduling. The three solenoids are located in the main control valve body. The solenoids are two-way, normally open style. Solenoids SS1, SS2, and SS3 provide gear selection of 1st through 4th by controlling the pressure of the three shift valves and the forward clutch control valve.

SS1 SYMPTOMS
Improper gear selection depending on failure mode and gearshift lever position.
- Failed ON-3rd gear only.
- Failed OFF-1st and 2nd gear only.

DIAGNOSTIC TROUBLE CODES
P0731, P0732, P0733, P0734, P0750, P0751, P1751

SS2 SYMPTOMS
Improper gear selection depending on failure mode and gearshift lever position.
- Failed ON-1st and 4th gear only.
- Failed OFF-2nd and 3rd gear only.

DIAGNOSTIC TROUBLE CODES
P0731, P0733, P0734, P0755, P0756, P1756

SS3 SYMPTOMS
Improper gear selection depending on failure mode and gearshift lever position.
- Failed ON-No engine braking.
- Failed OFF-No 4th gear.

DIAGNOSTIC TROUBLE CODES
P0734**, P0760*, P0761**, P1761**
** May also be generated by some non-electrical transaxle component condition.
* Output circuit check, generated only by electrical conditions.
