Inner

REMOVAL AND INSTALLATION
1. Remove control arm.

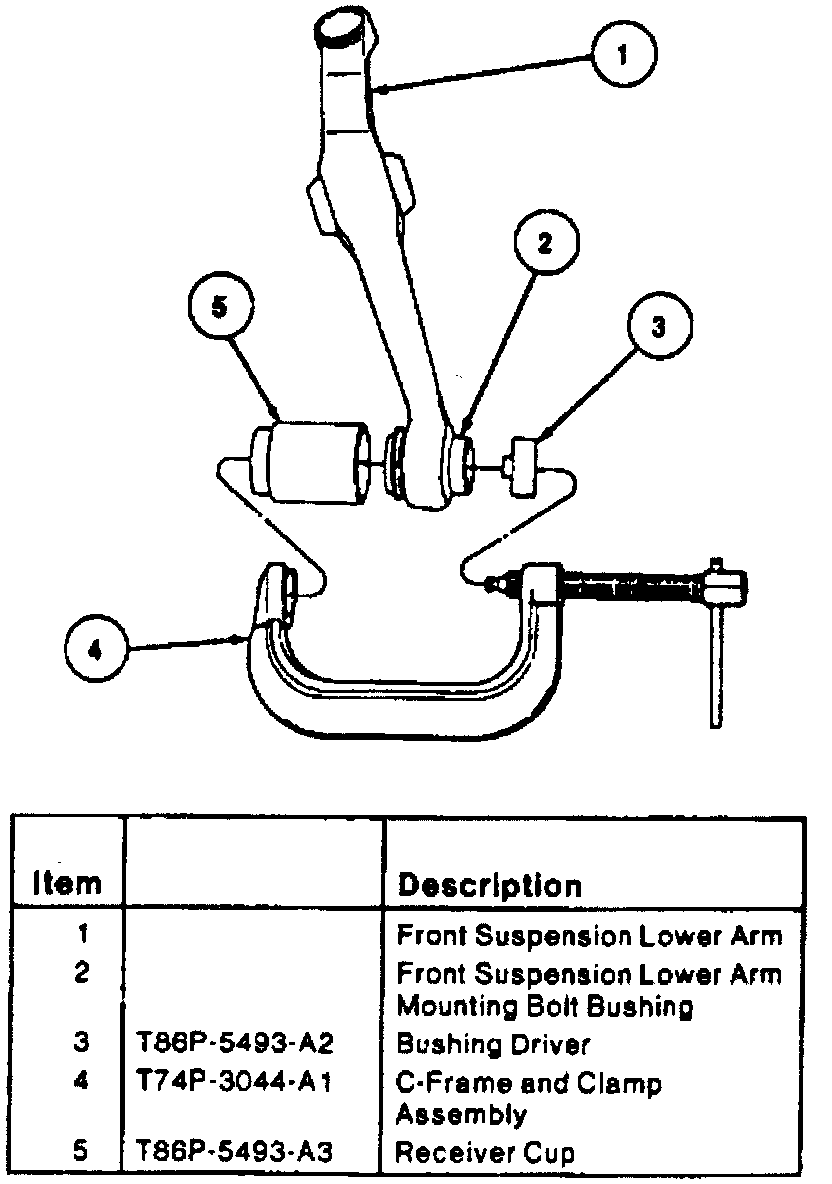

Fig. 8 Inner Bushing Removal:

2. Using C frame tool No. T74P-3044-A1, Cup tool No. T86P-5493-A3 and bushing driver tool No. T86P-5493-A2 or equivalents push bushing out of control arm.
3. Using C frame tool No. T74P-3044-A1 and bushing driver tool No. T86P-5493-A4 or equivalents push bushing into control arm.
4. Reverse procedure to install control arm, tighten bolts to 98-113 ft lb.
