Home
>>
Ford
>>
1995
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

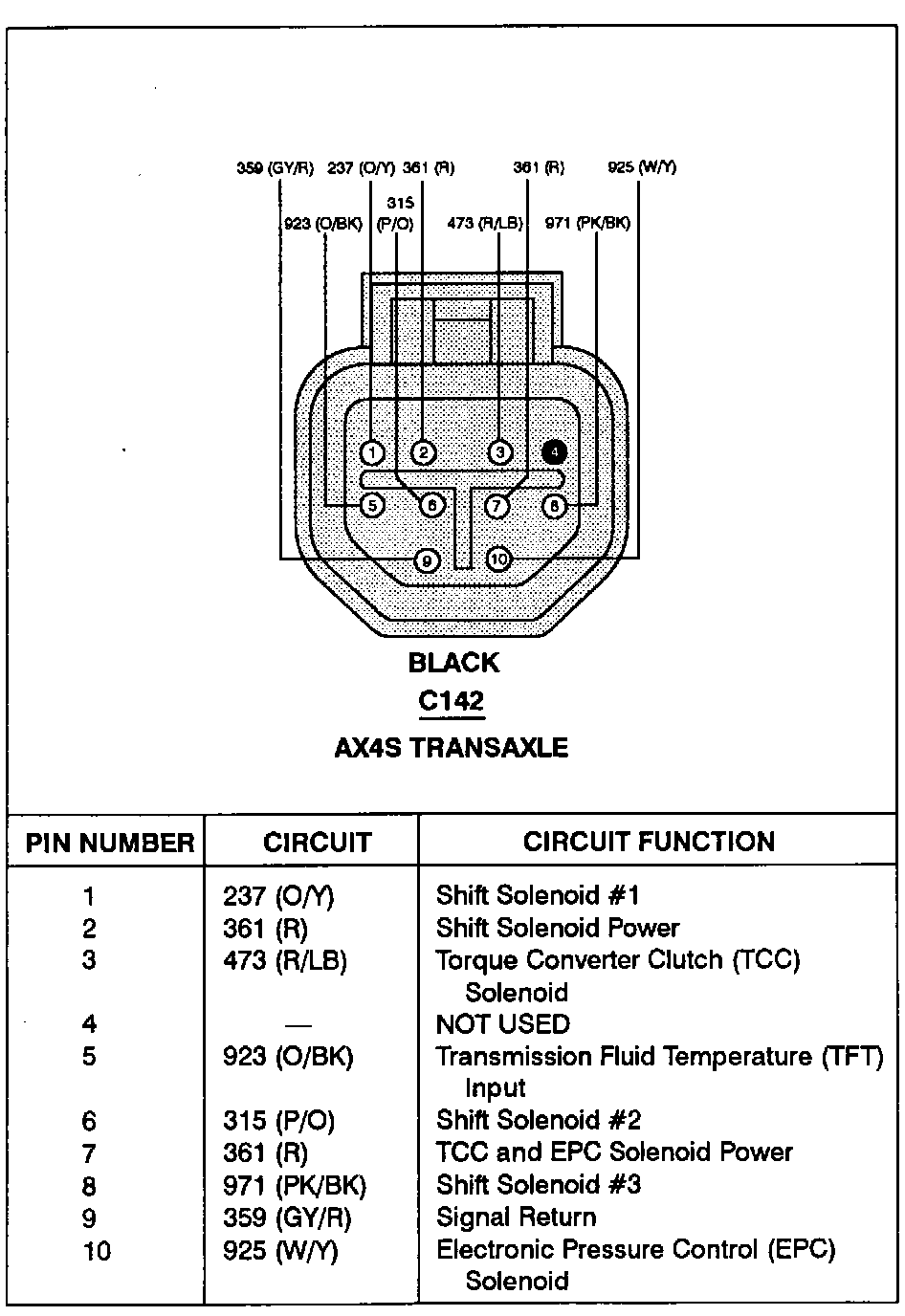

AX4S Transaxle:
