Home >> Ford >> 1996 >> Aerostar AWD V6-245 4.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, Transfer Case

Control Module, Transfer Case

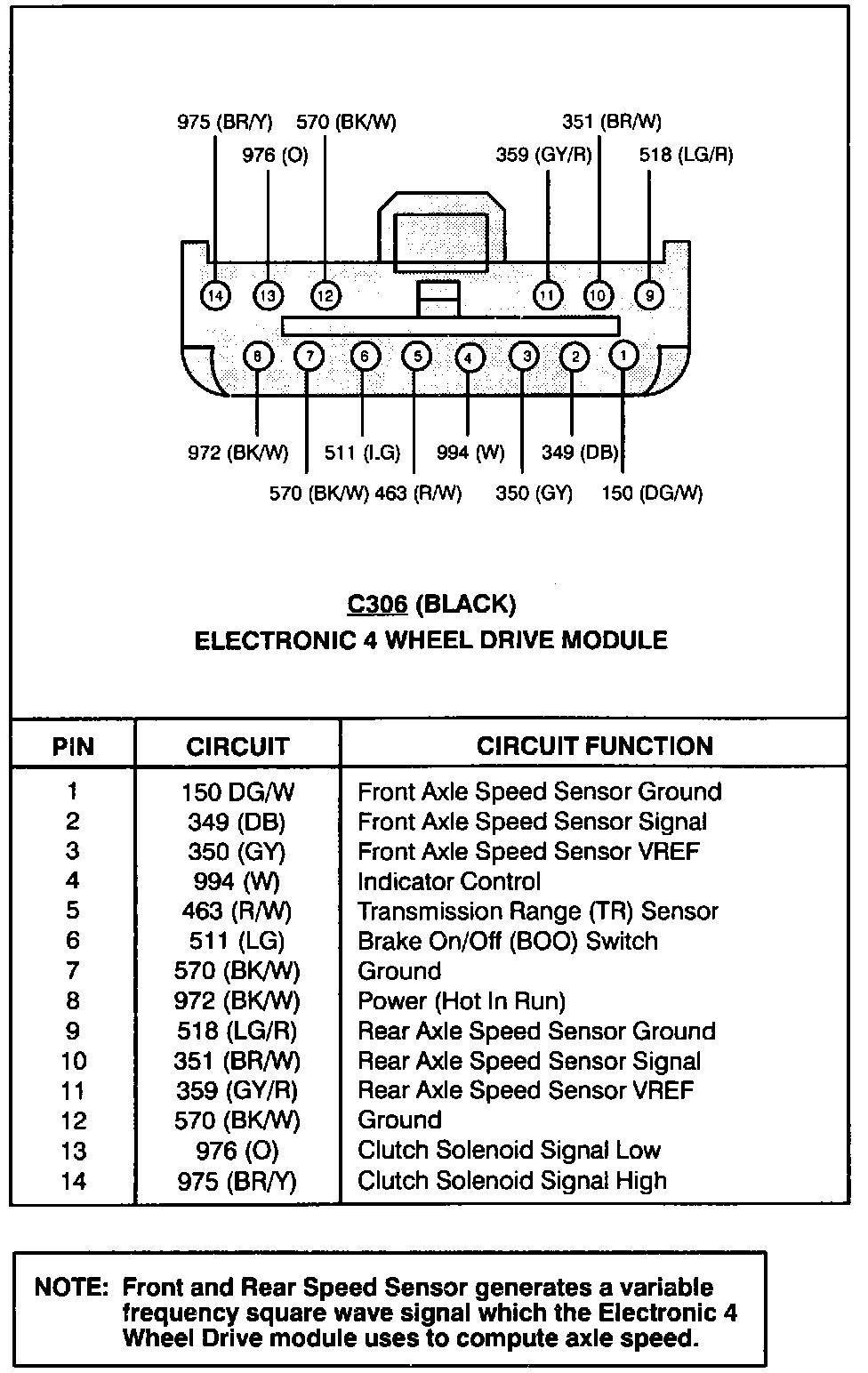

Electronic 4 Wheel Drive Module:
